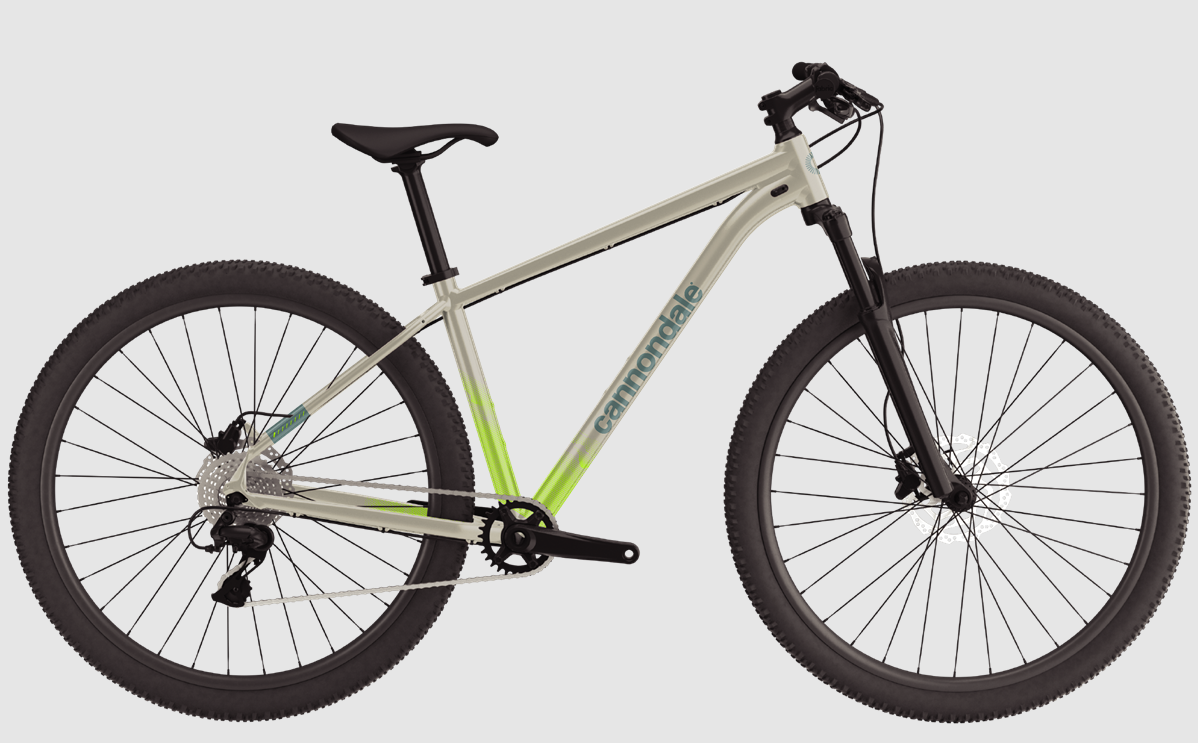

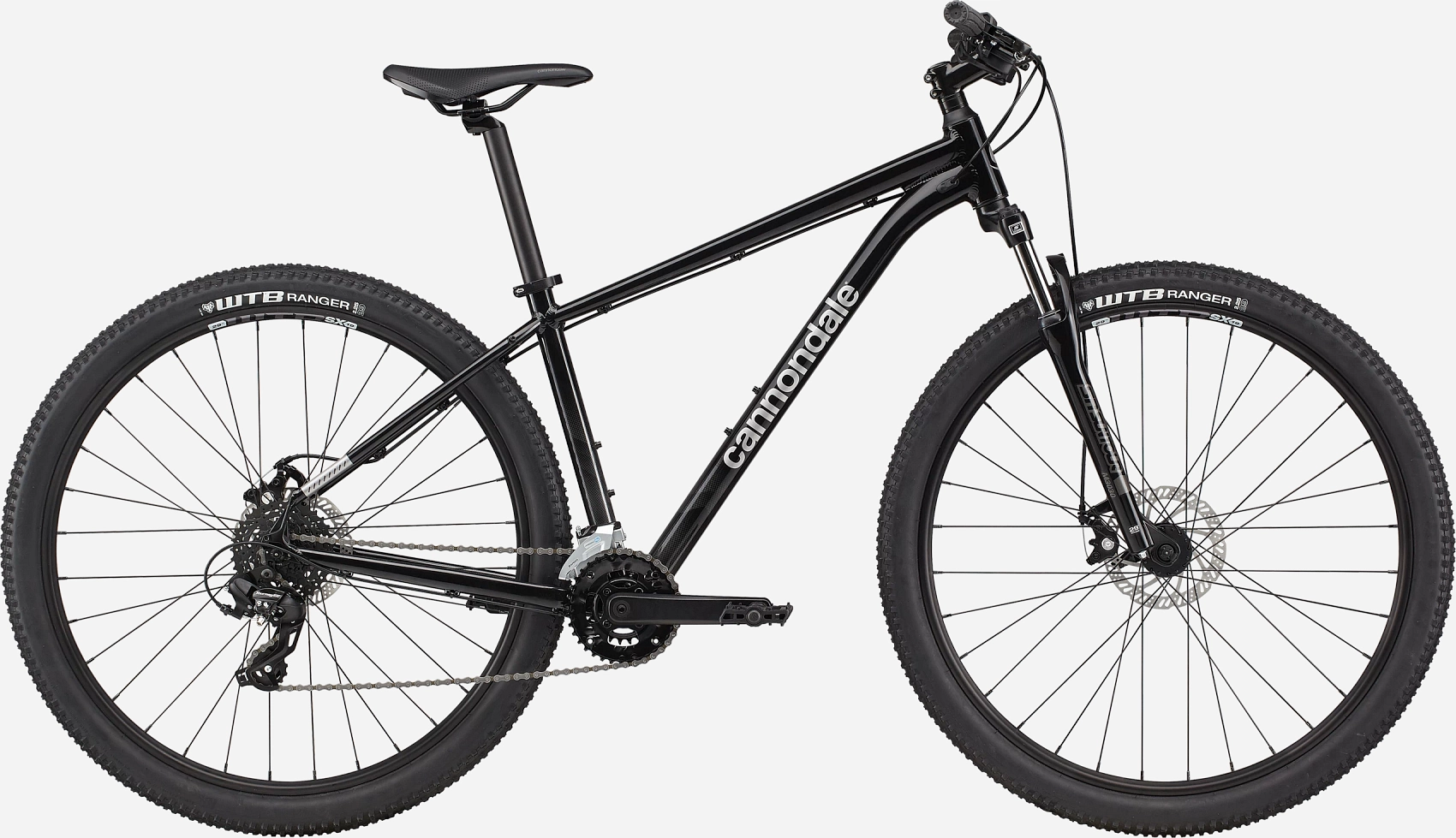

Cannondale Men's Trail 8

SmartForm C3 Alloy

Simple yet sophisticated aluminum construction yields a light, lively frame that outperforms anything in its class.

SAVE Micro-Suspension

Delivers a smoother, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.

Slack and Stable

A slack 68° head angle creates exceptionally stable handling so that you can charge the descents with confidence.

Right-Sized Wheels

The smaller sizes of Trail roll on 27.5" wheels, while the larger sizes come with 29" wheels to deliver the best blend of fits, fast and fun for every rider.

StraightShot Internal Cable Routing

For an integrated look and east maintenance, the shift and dropper post cables route cleanly through the StraightShot window in the down tube, while the rear brake line is secured outside the frame.

Platform

Trail

Wheels

Model Name

Trail 8

Front Hub

Formula, QR

Model Code

C26801M

Rear Hub

Formula, QR

Frameset

Brake Type

Disc

Frame

SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73

Rims

WTB SX19, 32h

Spokes

Stainless Steel, 14g

Tire Size

2.25

Fork

SR Suntour M3030, 75mm, coil, 42mm offset (27.5") 46mm offset (29")

Wheel Size

29

Headset

Semi-Integrated, 1-1/8"

Tires

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Drivetrain

Front Tire

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Rear Derailleur

microSHIFT M26L

Rear Tire

WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound

Front Derailleur

microSHIFT Dual Pull Compact, Band Clamp

Shifters

microSHIFT, 7-speed

Chain

KMC Z7, 7-speed

Component

Crank

Prowheel, 36/22

Handlebar

6061 Alloy Riser, 31.8mm, 25mm rise, 700mm

Rear Cogs

Sunrace, 11-34, 7-speed

Stem

6061 Alloy, 31.8, 8°

Bottom Bracket

Sealed cartridge bearing, square taper

Saddle

Cannondale Stage 3

Brakes

Grips

Cannondale Dual-Density

Brakes

Tektro mechanical disc, 160/160mm rotors

Seatpost

Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL)

Brake Levers

Tektro
