| Article number: | 7690005155-BLKC-M |
| Availability: | In stock |
DESCRIPTION
Exhilarating yet relaxing. With smooth, powerful pedaling assistance and comfortable handling, the new Expression E+ is a motivating companion for commuting, fitness riding, or just pedaling for the fun of it.
KEY PERFORMANCE FACTORS
Smart supportThe new SyncDrive Core 2 55Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output. |
|
Comfort and controlA step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions. |
|
HEAD TUBE CHARGE PORTNewly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery. |
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Energypak 500 / SyncDrive Core
HIGHLIGHTS
This low-step through E-bike features the new Syncdrive Core2 55Nm, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 55Nm of torque and utilizes Smart Assist technology, which features six sensors including slope detection and an accelerometer to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads.

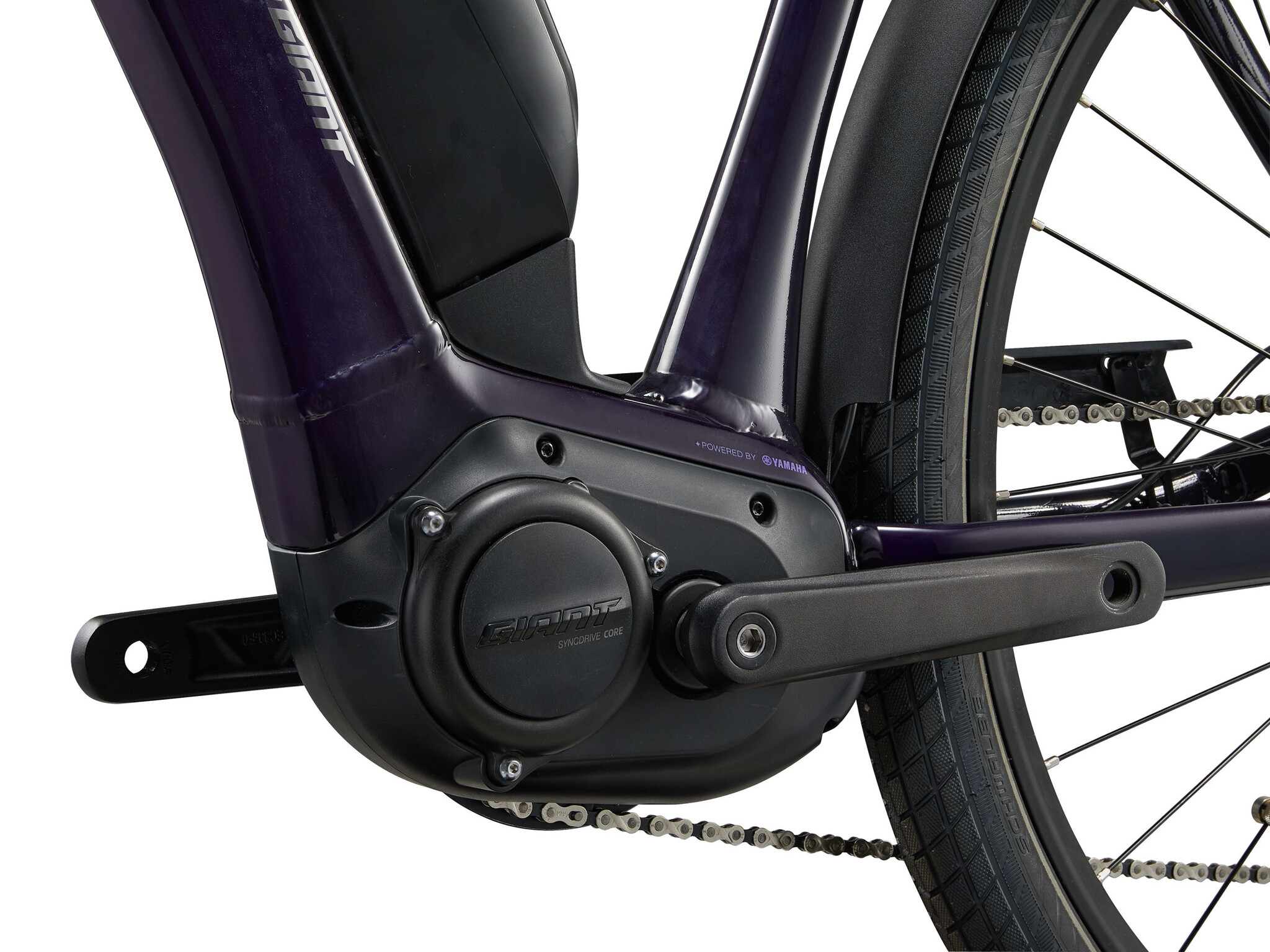

SyncDrive Core2, 55Nm, powered by Yamaha
The new SyncDrive Core 2 is a compact and lightweight motor that is ideal for commuters and recreational riders. It delivers 55Nm of torque and is more powerful than the previous generation. Built in Smart Assist technology features six sensors, including slope detection and an accelerometer, that allow the motor to produce power based on rider input and terrain.
Six smart sensors precisely measure the power being applied to the pedals so the motor can provide just the right amount of assistance to create a natural, powerful riding experience. This helps optimize energy efficiency for both rider and battery system.

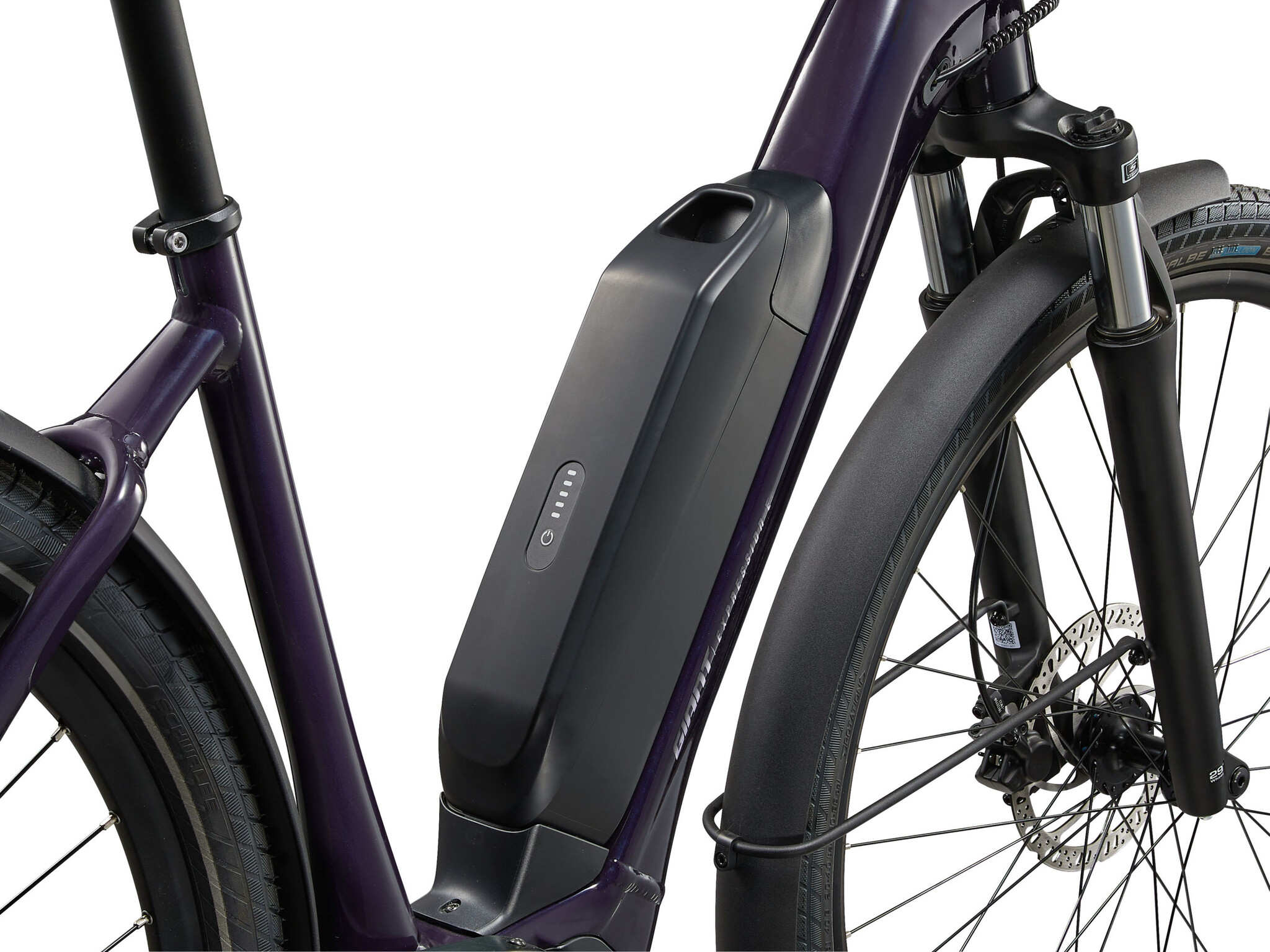

The downtube-mounted EnergyPak battery features 600Wh (on select models) of capacity and produces continuous communication between the battery and charger for optimized charging performance.

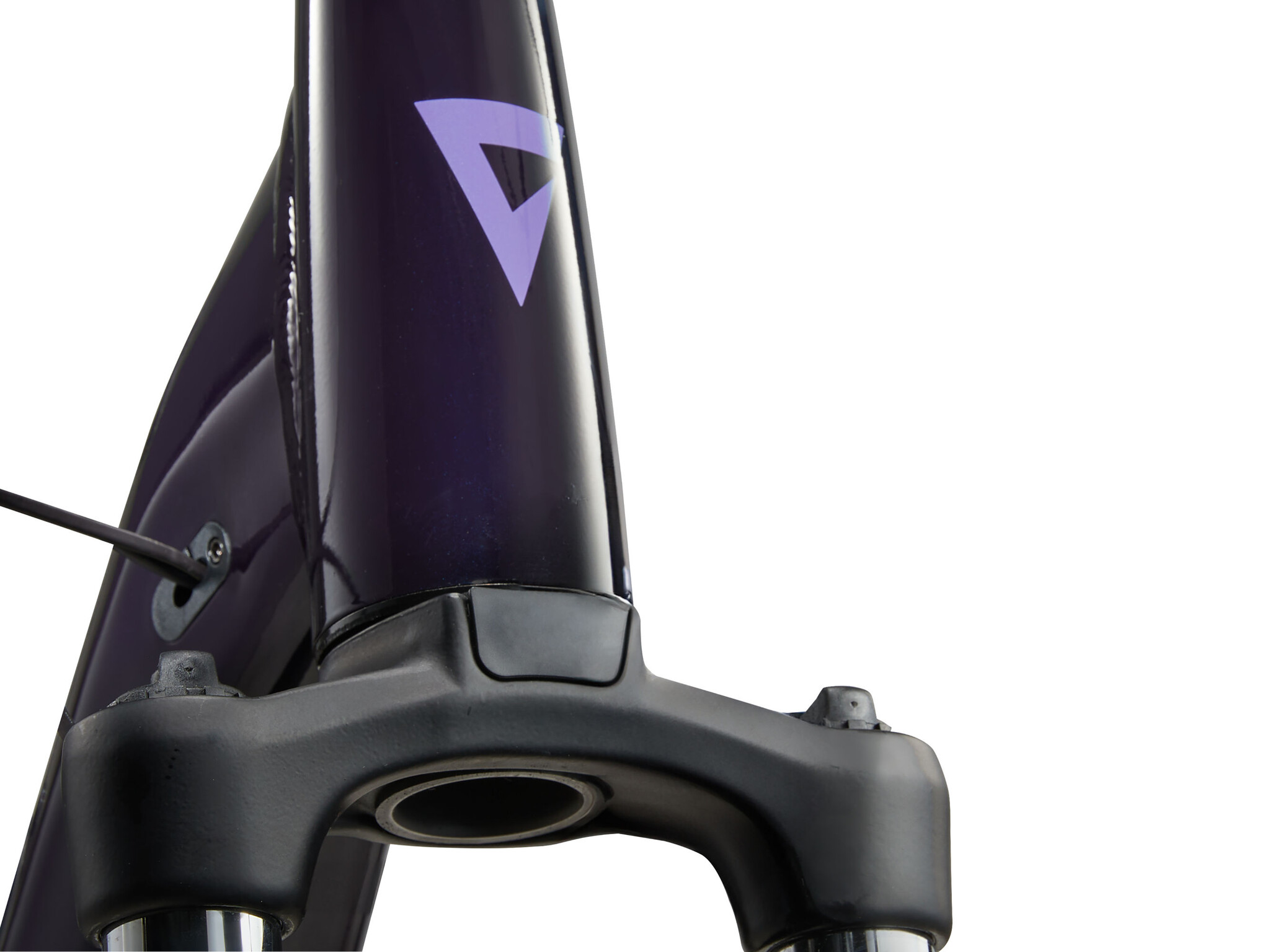

A 63mm suspension fork absorbs road shocks and bumps to improve comfort and control on rough roads and paths.
Rear RackIntegrated rear cargo rack with MIK HD interface makes it quick and easy to customize carrying capacity and add other accessories such as bags or a child seat with a secure click mechanism. The rack has a maximum weight limit of 27kg.
Newly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery.
This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset also features unique welding technologies for a high-performance ride quality.
The updated RideControl App expands the existing customization options for your SyncDrive motor 2. Now you choose exactly how you want the system to perform. You can use the app to adjust from the battery-saving Eco mode all the way up to Power mode, and collect all relevant ride metrics during your activity.
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Size | Height |
| S | 5'2" - 5'11" |
| M | 5'5" - 6'2" |
| L | 5'8" - 6'4" |
GEOMETRY
| S | M | L | |
|---|---|---|---|
| A Seat Tube Length (inch) | 17.7 | 19.7 | 21.7 |
| B Seat Tube Angle | 73.0° | 72.0° | 71.0° |
| C Top Tube Length (inch) | 22.8 | 23.4 | 24.4 |
| D Head Tube Length (inch) | 5.5 | 6.3 | 7.1 |
| E Head Tube Angle | 70.0° | 70.0° | 70.0° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 |
| G Trail (inch) | 3.5 | 3.5 | 3.5 |
| H Wheelbase (inch) | 43.6 | 43.7 | 44.3 |
| I Chain Stay Length (inch) | 18.5 | 18.5 | 18.5 |
| J Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 |
| K Stack (inch) | 24.5 | 25.2 | 25.9 |
| L Reach (inch) | 15.4 | 15.2 | 15.5 |
| M Stand Over Height (inch) | 20.3 | 20.3 | 20.3 |
| N Handlebar Width (inch) | 27.2 | 27.2 | 27.2 |
| O Stem Length (inch) | 3.5 | 3.5 | 4.3 |
| P Crank Length (inch) | 6.7 | 6.7 | 6.7 |
| Q Wheel Size | 700C | 700C | 700C |
SPECIFICATIONS
| Motor | SyncDrive Core2, 55Nm, powered by Yamaha |
| Controller | RideControl Ergo, 5 power levels plus Smart Assist auto mode |
| Display | N/A |
| Battery | EnergyPak 500Wh, CO2 neutral production |
| Charger | EnergyPak 4A smart charger compact, 60% in 2:30h |
| Connectivity | 32km/h |
| Sizes | S, M, L |
| Colours | Black Currant, Early Espresso |
| Frame | ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount |
| Fork | SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle |
| Shock | N/A |
| Handlebar | Alloy, mid-rise, 31.8mm |
| Grips | Giant Comfort Ergo Microtech Plus lock-on |
| Stem | Alloy angle adjustable |
| Seatpost | Giant forged alloy, 30.9mm, 2-bolt micro adjustable |
| Saddle | Selle Royal Vivo Essenza Plus |
| Pedals | platform |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Alivio RD-M3100 |
| Brakes | Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm |
| Brake Levers | Tektro HD-M275 |
| Cassette | Shimano Alivio, 9-speed, 11x36 |
| Chain | KMC e.9 Sport, e-bike optimized |
| Crankset | forged alloy, 38t |
| Bottom Bracket | N/A |
| Rims | Giant GX03V, alloy, 700c |
| Hubs | Shimano [F] HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR |
| Spokes | stainless |
| Tires | Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead w/ Reflective |
| Extras | fenders, KSA18 direct mount kickstand, MIK HD rack system - bag & basket compatible |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
