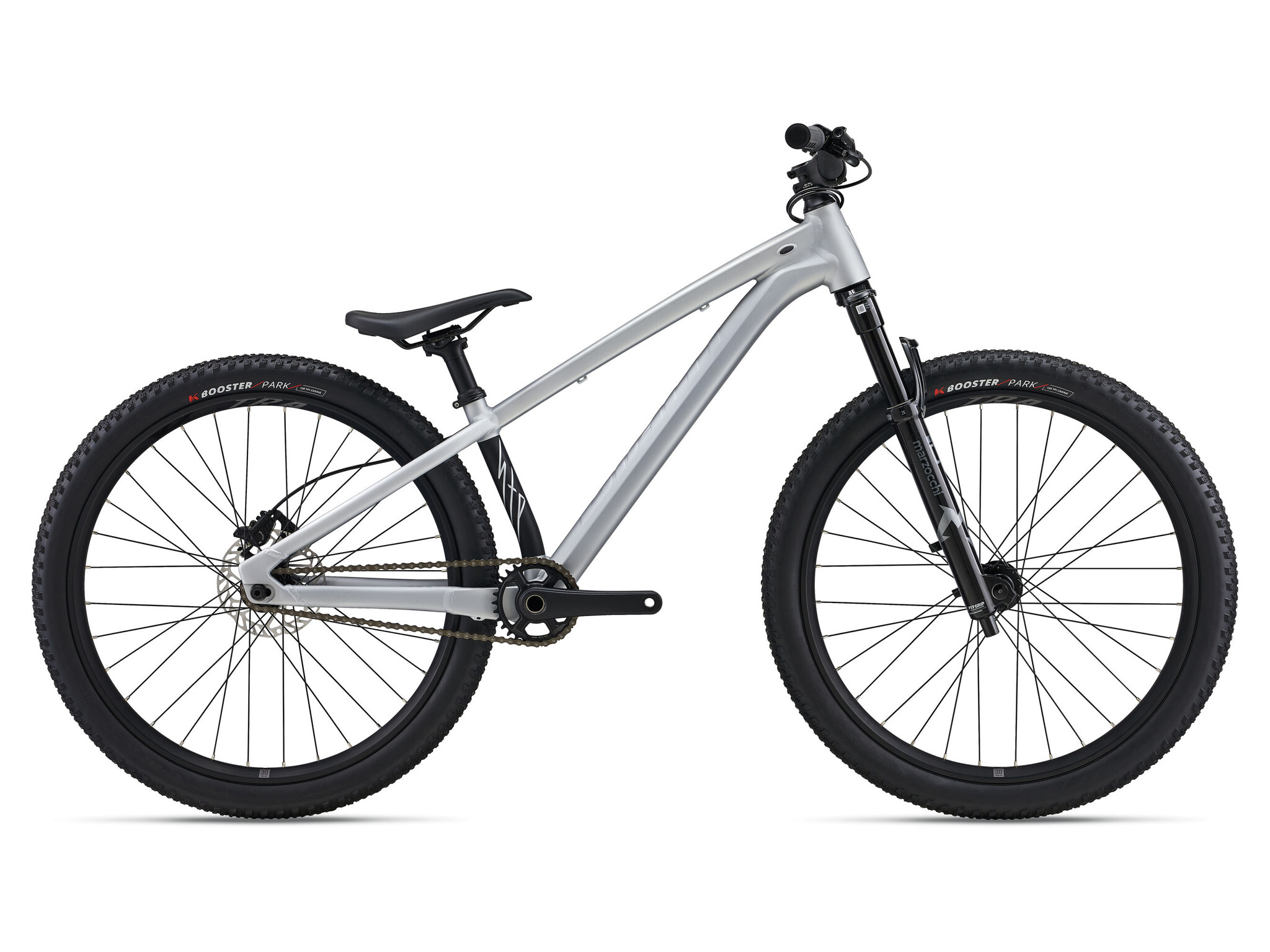

Giant STP 26

C$2,149.00

Rail the corner, boost a jump, give it a go on that tricky line.

+ -
Add to cart
Giant
BIKE , Men , Mountain Bikes , Hard Tail , Women , Mountain Bikes , Hard Tail
Article number: 1090029190-QCK
Availability: In stock

DESCRIPTION

Rail the corner, boost a jump, give it a go on that tricky line. The all-new STP 26 is built for pushing limits. With its lightweight, super strong ALUXX aluminum frame, 100mm Marzocchi Bomber DJ fork, and 26-inch Giant TRA 2 wheels, it’s rugged and ready for takeoff.



KEY PERFORMANCE FACTORS

RUGGED DURABILITY

Super strong and lightweight ALUXX aluminum frameset is backed by a warranty for hard-charging durability. A 26-inch Giant TRA 2 wheelset features Wide Guard rim technology, allowing lower tire pressures for better control along with increased puncture protection.



AGILITY AND CONTROL

The frame’s lower stand-over height offers balance and stability with a lower center of gravity. The 26-inch wheels and steeper head tube, combined with a shorter wheelbase and chainstays, make it quick and easily maneuverable for dirt jump performance. Gyro compatibility enables 360-degree handlebar rotation for bar spins.



READY FOR LANDING

The 135x10mm horizontal sliding rear dropout and Marzocchi Bomber DJ fork with 100mm of travel deliver smooth control on rugged terrain, jumps or drops—making it a versatile choice for dirt jumps or technical trails. A Giant Contact TR35 handlebar and shorter stem deliver pinpoint control that stands up to hard-charging dirt sessions.



HIGHLIGHTS

STP 26 with interactive tooltips

ALUXX ALUMINUM

State-of-the-art aluminum material delivers best-in-class strength-to-weight ratios. Frameset also features unique welding technologies for a performance ride quality.

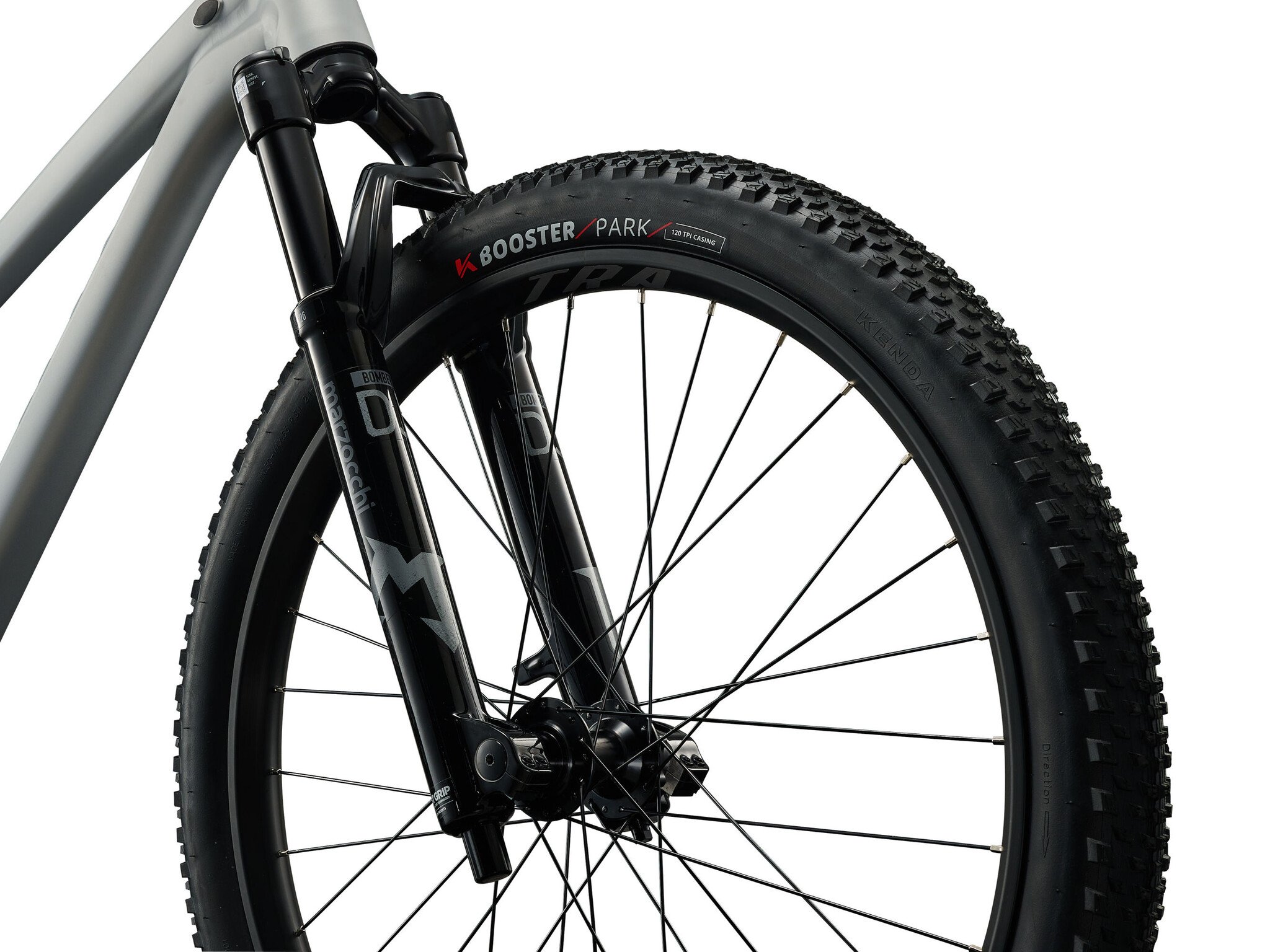

DIRT JUMP FORK

Marzochi Bomber DJ 100mm suspension fork designed for dirt jumping, pump tracks and slopestyle use. Stiff 36mm chassis and dedicated 26-inch wheel configuration. Features a 20x110mm axle with option to convert to 15x100mm hubs.

26-INCH WHEELS

Giant TRA 2 26” wheels with Wide Guard technology combine lightweight performance with rim strength and puncture protection. A 72-tooth freehub ratchet delivers quick engagement.

GRIPPY TIRES

Large, high-volume 2.25-inch tires offer maximum grip and a smooth, controlled ride on dirt and other surfaces.

SLIDING DROPOUT

135x10mm horizontal rear dropout to easily and securely set and maintain chain tension while improving overall frame stiffness.

GYRO COMPATIBILITY

Compatible with gyro detangler system, allowing the handlebars to rotate 360 degrees without twisting the cables for unlimited bar spins.

INTERNAL CABLE ROUTING

Brake and dropper post cables are routed internally through integrated ports, saving weight while creating a cleaner look and better performance.



FEATURES

ALUXX Aluminum Technology

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.



SIZE GUIDE

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Sizes Height
One Size 5'1" - 6'1"



GEOMETRY

bike diagram with measurements referenced in table that follows

  One Size
A Seat Tube Length (inch) 12.2
A1 Seat Post Insertion Depth (inch) 8.9
B Seat Tube Angle 72.0°
C Top Tube Length (inch) 23.4
D Head Tube Length (inch) 4.7
E Head Tube Angle 68.5°
F Fork Rake (inch) 1.5
G Trail (inch) 3.7
H Wheelbase (inch) 41.2
I Chain Stay Length (inch) 15.2
J Bottom Bracket Drop (inch) 1
K Stack (inch) 22.3
L Reach (inch) 16.1
M Stand Over Height (inch) 26.5
N Handlebar Width (inch) 29.9
O Stem Length (inch) 1.4
P Crank Length (inch) 6.5



SPECIFICATIONS

Sizes
one size
Colours
Quicksilver
Frame
ALUXX-grade aluminum, 10x135mm horizontal sliding dropouts
Fork
Marzocchi Bomber DJ, 36mm stanchions, GRIP damper, 20x110mm, 100mm travel
Shock
N/A

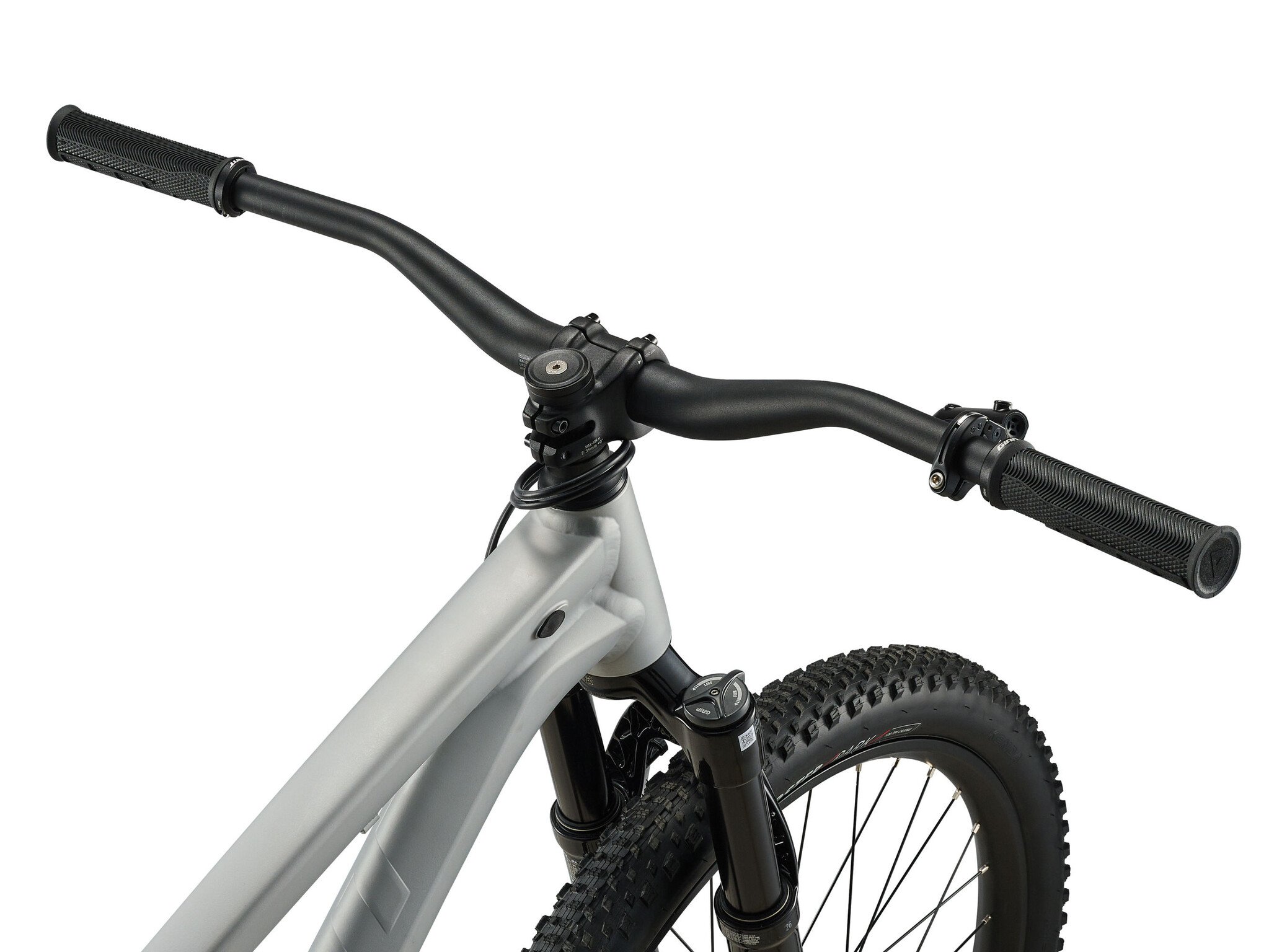

Handlebar
Giant Contact TR35, alloy, 760mm, 35mm rise
Grips
Giant Tactal Pro, lock on
Stem Giant Contact 35 DJ, 0-degree, 35mm
Seatpost alloy, two-bolt, 30.9x300mm
Saddle
Giant Ergo Contact Trail
Pedals platform
Shifters N/A
Front Derailleur N/A
Rear Derailleur N/A
Brakes [F] mechanical disc, [R] Shimano MT500, hydraulic TR-55 [F]180mm, [R]160mm rotors
Brake Levers
Shimano BL-MT501
Cassette
13t, stainless steel
Chain KMC Z1 wide
Crankset Prowheel forged, alloy, 30t, 165mm
Bottom Bracket 73mm, threaded
Rims
Giant TRA 2, 26", alloy
Hubs
Giant Disc, 32h, [F] 20x110 [R] 10x135 thru-axle, alloy, disc
Spokes stainless, 14g
Tires Kenda Booster, 26x2.25"
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
