| Article number: | 5550003155-SND-M |
| Availability: | In stock |
KEY PERFORMANCE FACTORS

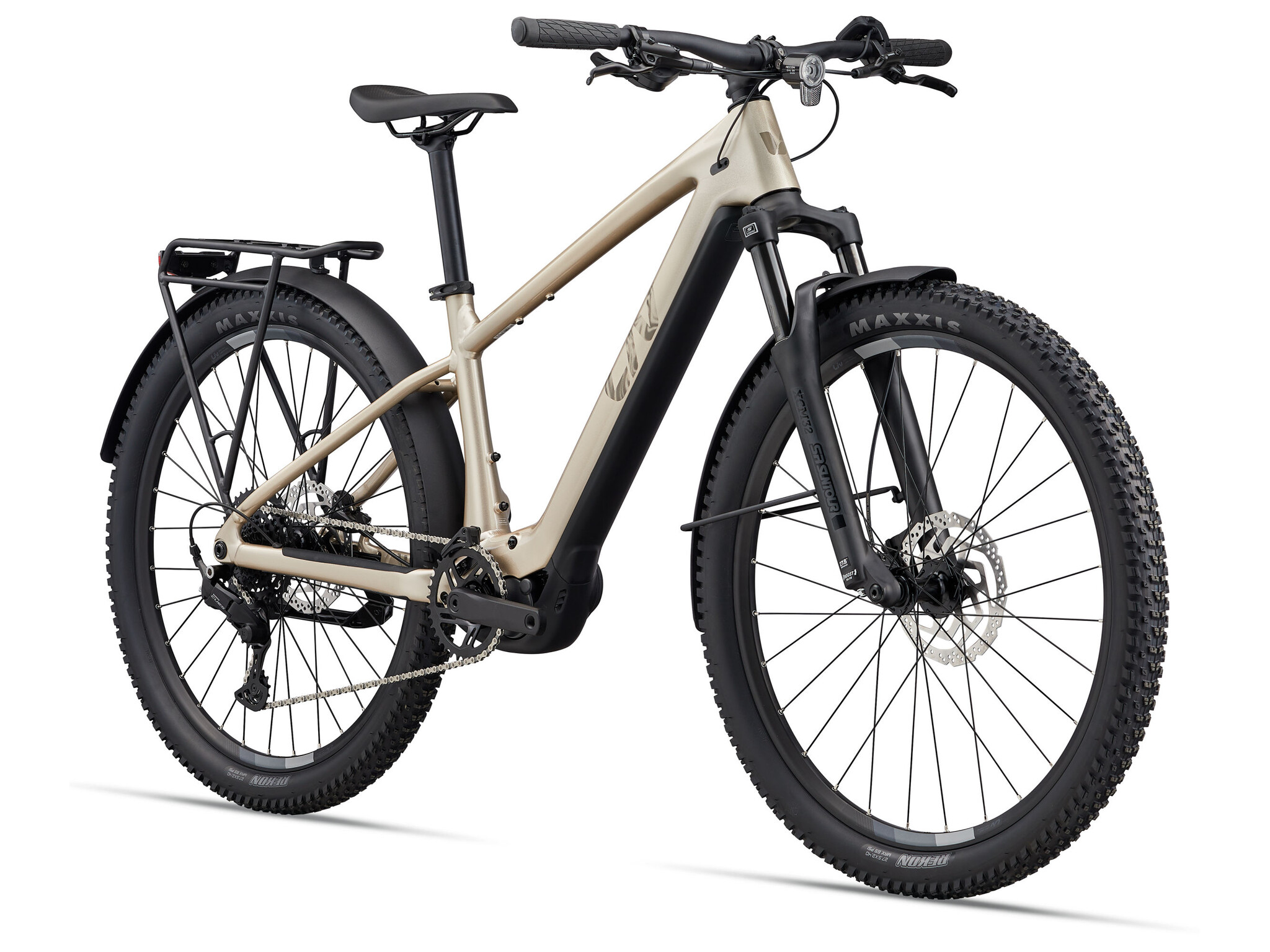

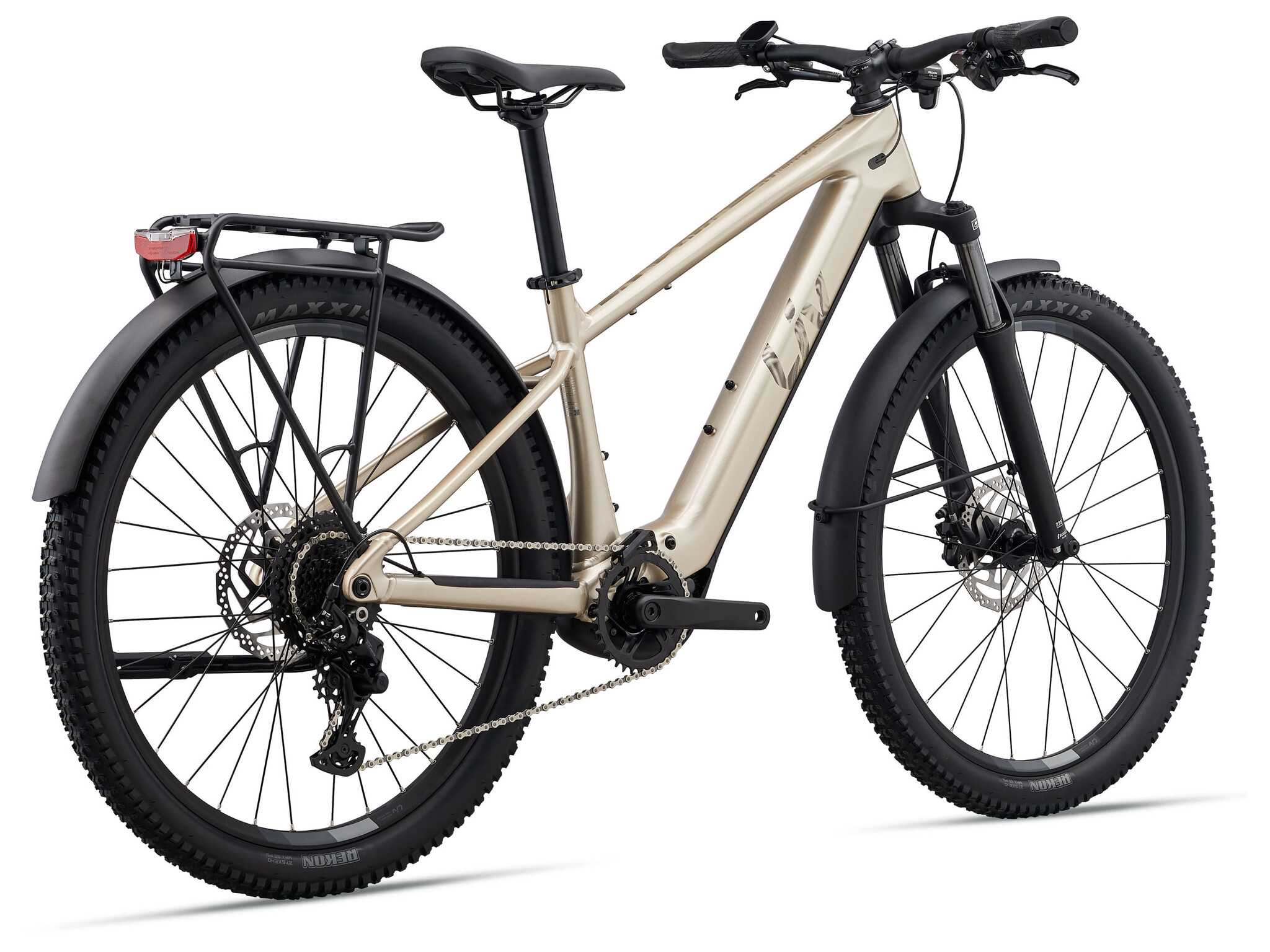

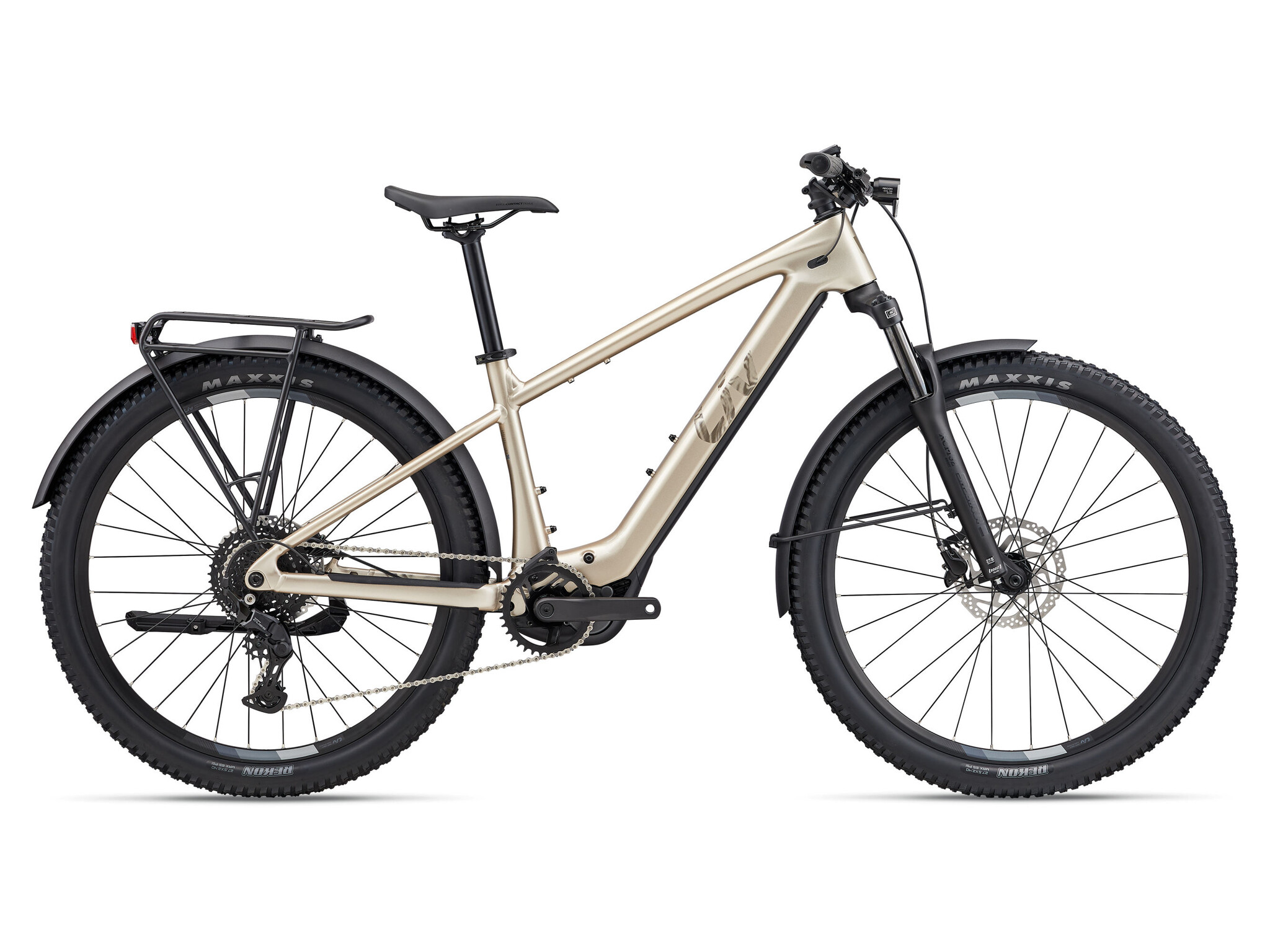

VERSATILEFrom trail adventures to daily commutes and grocery runs, the Tempt E+ EX is built to handle it all. The 100mm suspension fork provides comfort, while thoughtful touches like an integrated kickstand and a MIK rear rack add everyday convenience to its go-anywhere capability. |
|
POWERFULWith the SyncDrive Sport 2 motor and removable 430Wh battery, this bike provides strong, consistent support wherever you ride. Need to go even farther? An optional 200Wh range extender is available for longer range. A bright Recon front light adds visibility and confidence for extra safety day or night. |
|
INTELLIGENTPacked with innovative features, the E-Lock system lets you lock the bike remotely via the RideControl App or handlebar control unit. Apple Find My compatibility locates your bike with your iPhone and built-in anti-theft protection sounds an alarm and sends alerts if the bike is moved, offering added peace of mind. |
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
Energypak 500 / SyncDrive Core
HIGHLIGHTS
ALUXX-GRADE ALUMINUM

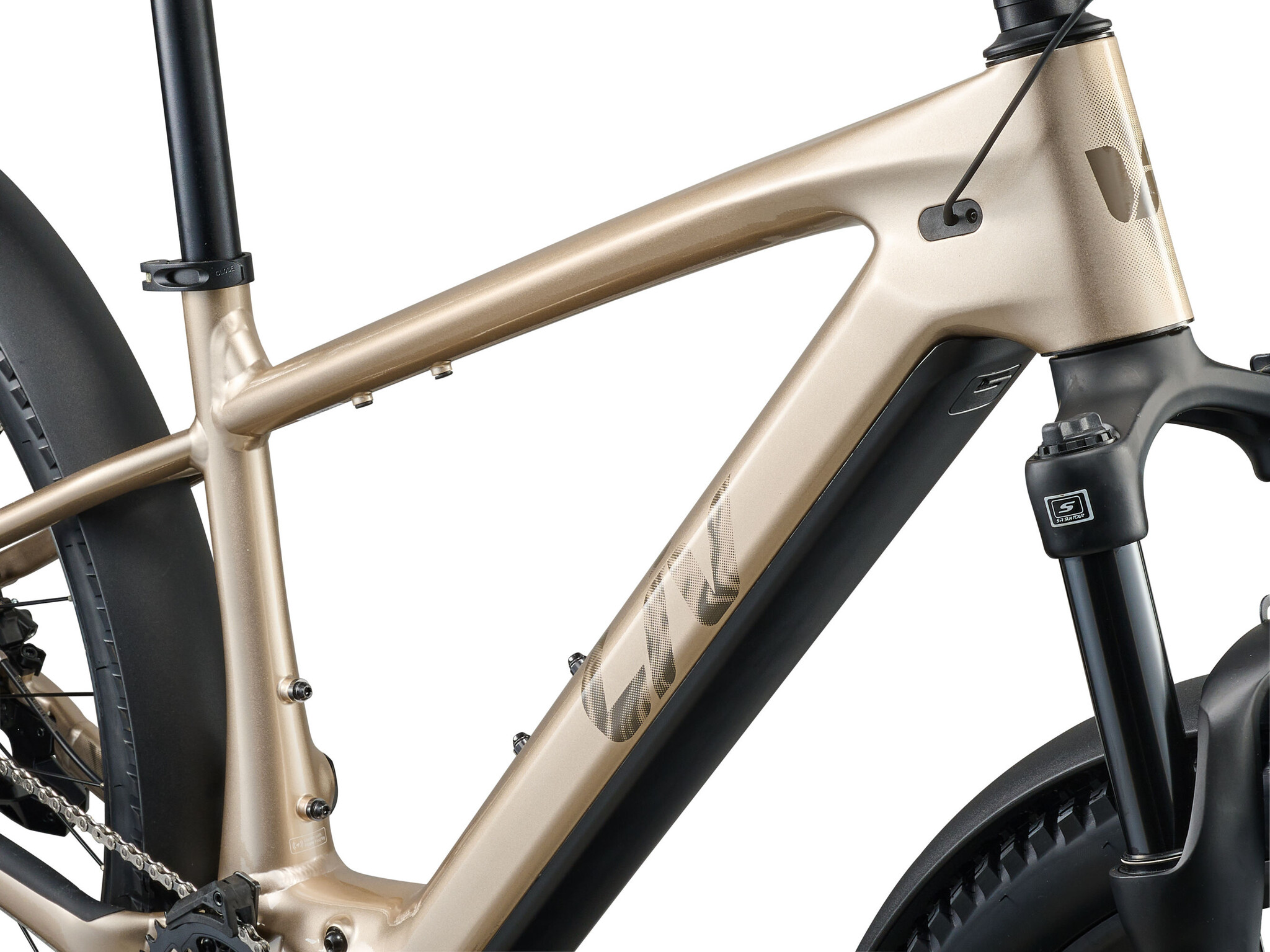

Lightweight aluminum frame made in our industry-leading aluminum manufacturing facility, contributes to weight reduction and a quick, agile ride feel
Stealthily integrated into the down tube, the easy-to-remove EnergyPak 430Wh battery provides long-lasting power to go the miles you need. Need to go further? Compatible with the 200Wh range extender

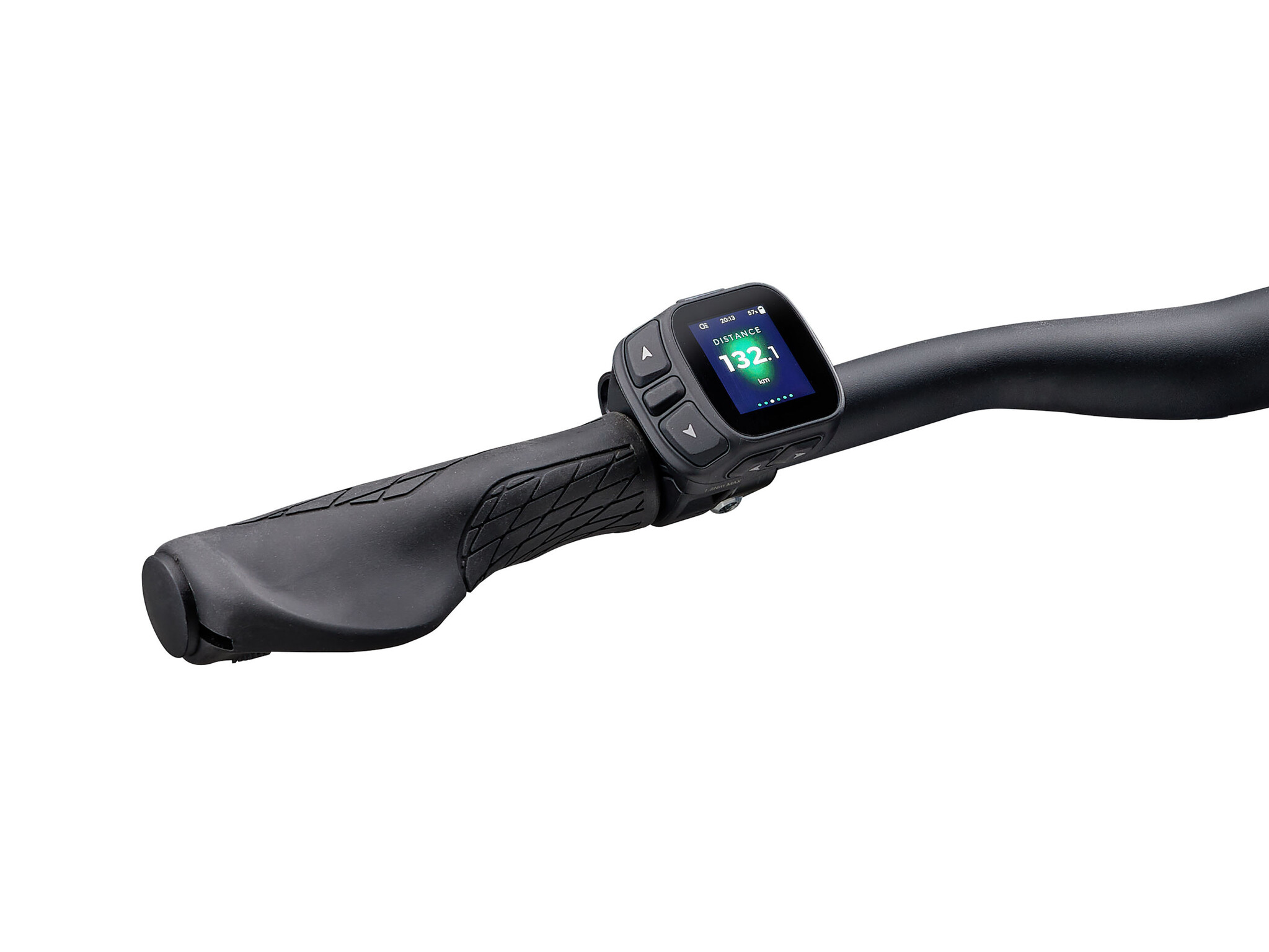

This minimalist display features integrated control buttons and a color screen for easy data viewing. It's fully compatible with the RideControl App and includes remote E-lock functionality, plus Apple Find My integration to help you track your bike's location

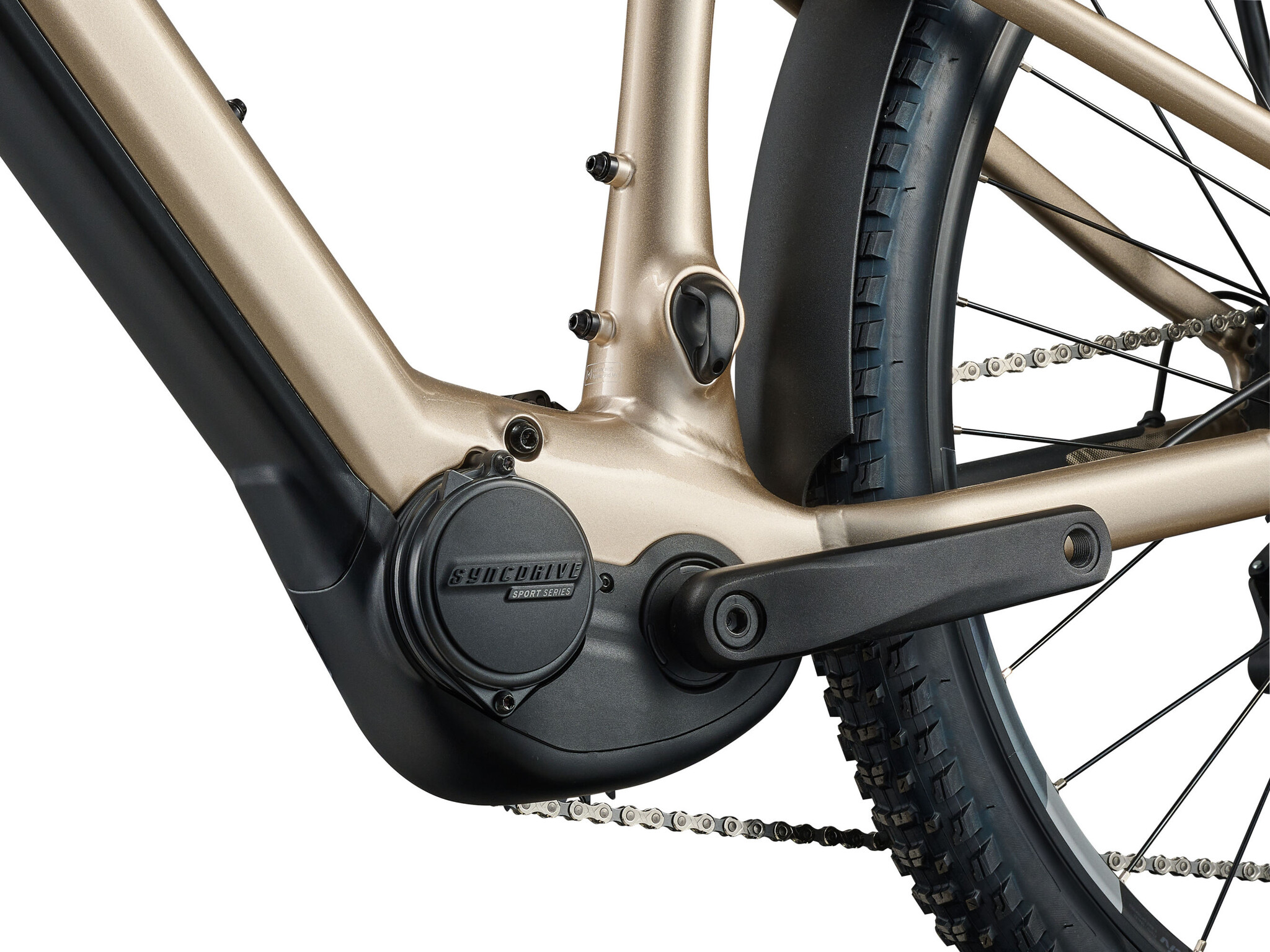

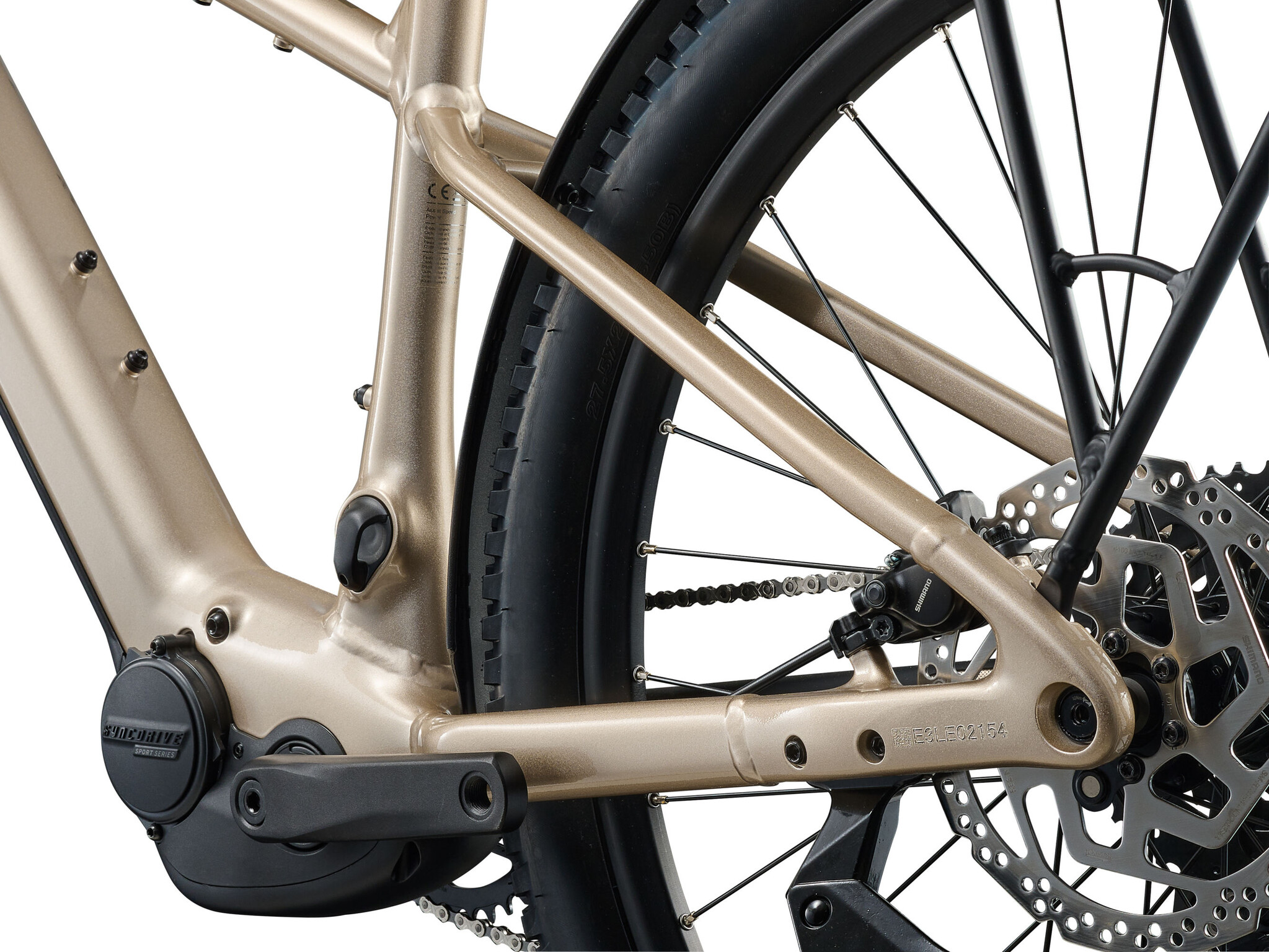

The powerful SyncDrive Sport 2 motor provides 75Nm of torque, for smooth natural-feeling pedal assist power

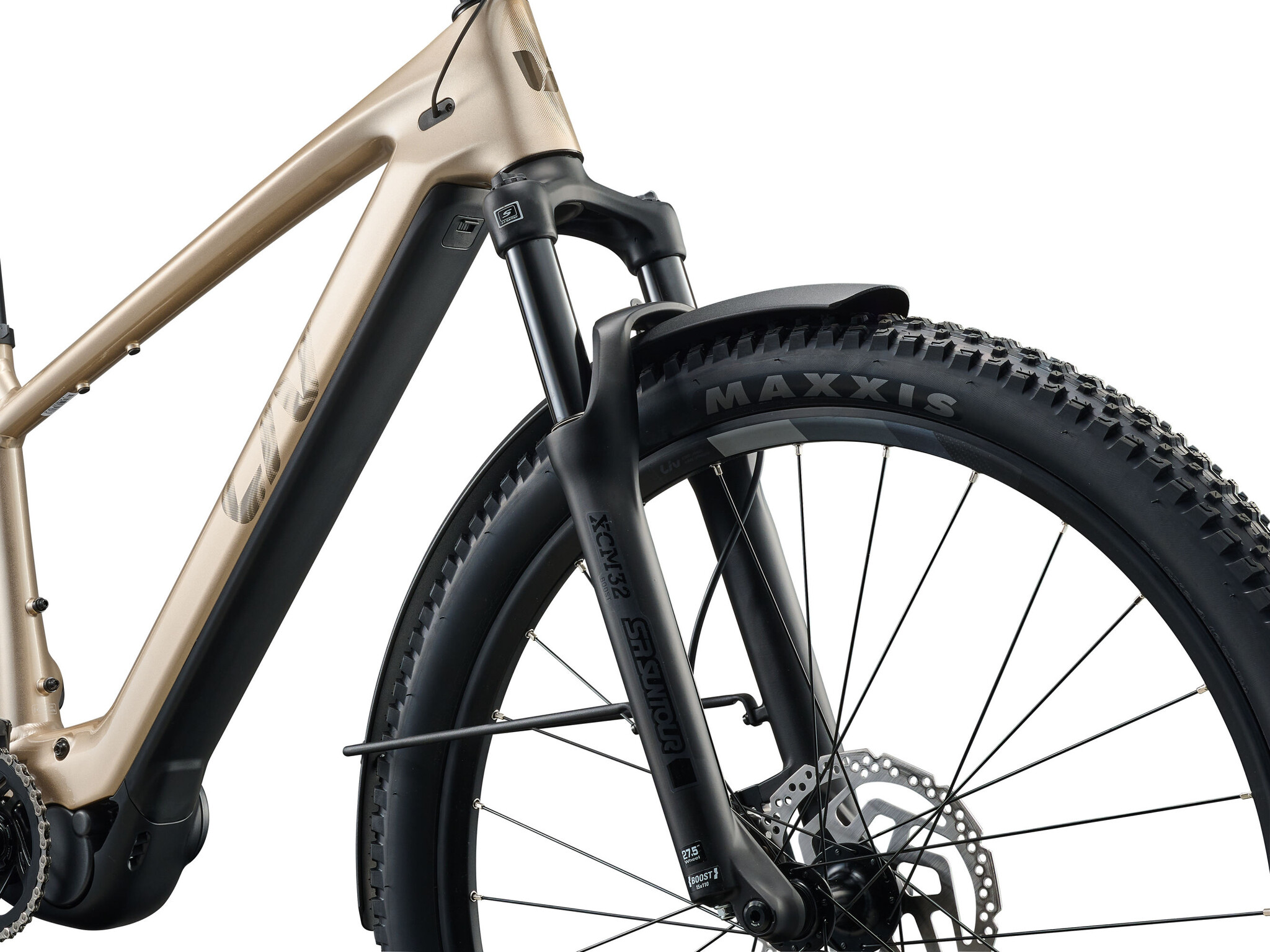

Front fork with 100mm of suspension increases riding comfort and control over rough terrain.
We’ve matched each frame size with the ideal wheels, 27.5-inch on XS and S for agility, 29-inch on M and L for speed and stability—delivering the optimal setup for every rider

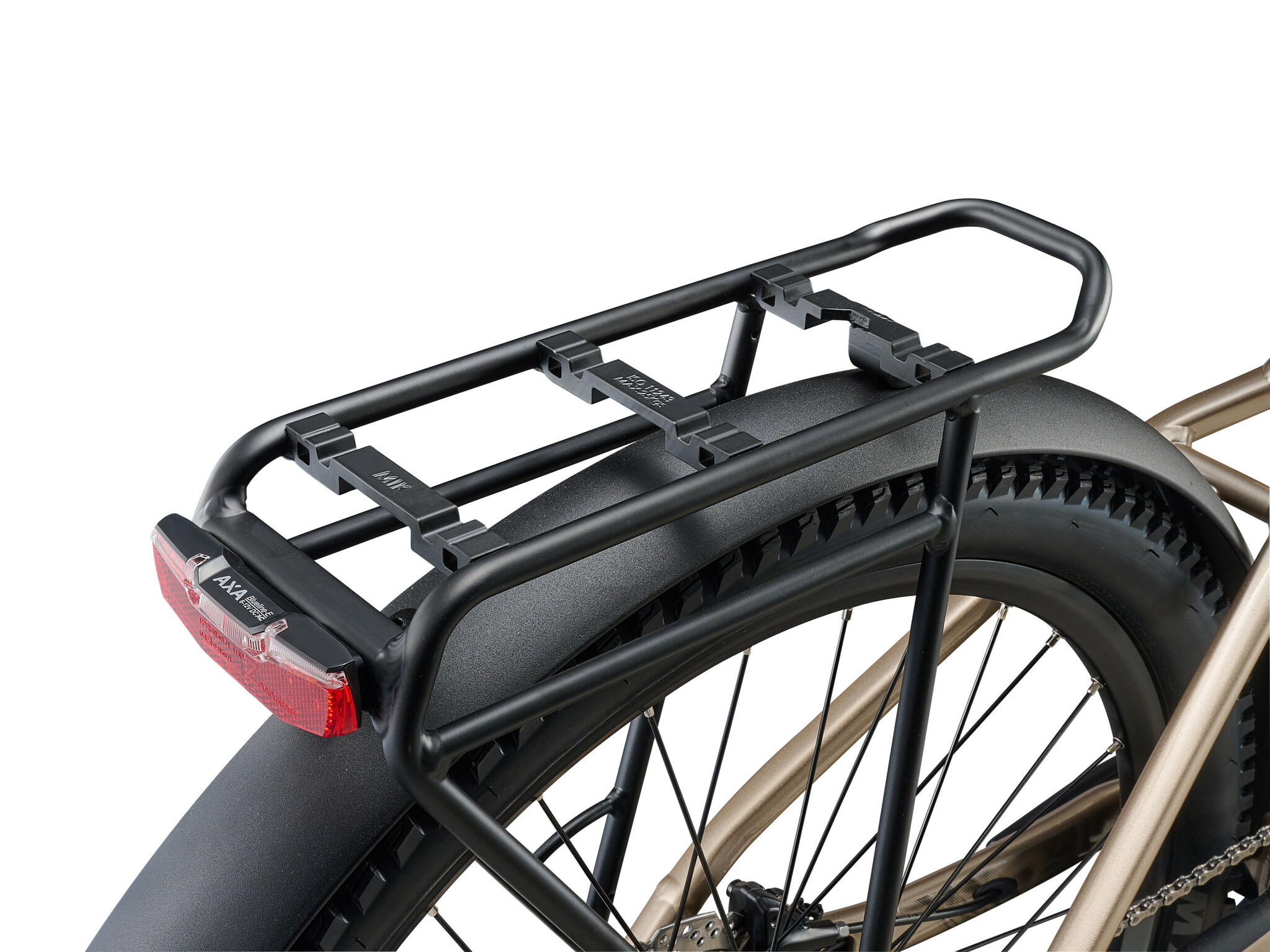

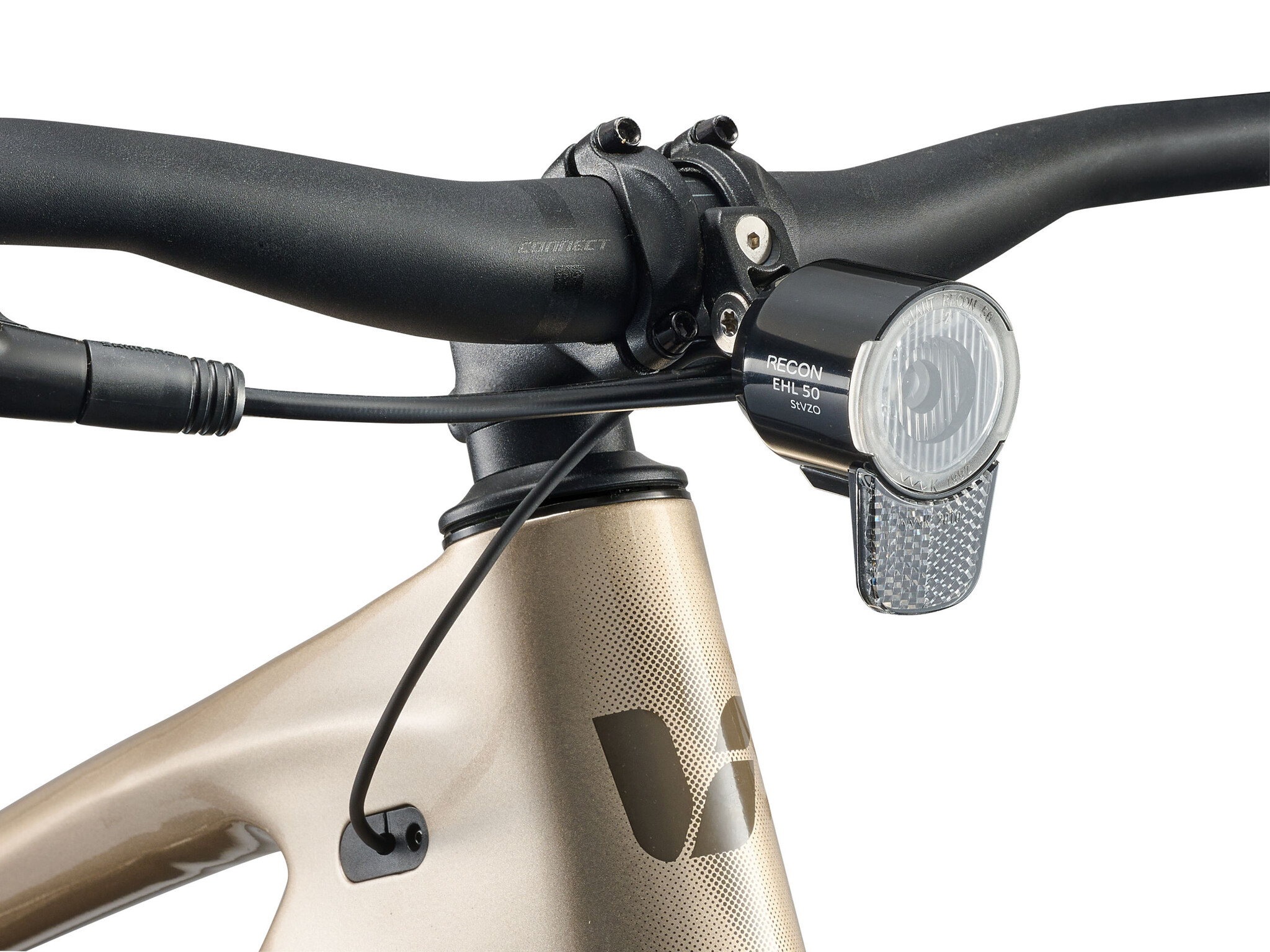

Equipped with a Recon front light, fenders, kickstand and a MIK rack.
The Smart Assist feature uses six integrated sensors to automatically provide support that mirrors your natural riding style, delivering assistance precisely when and where you need it most
Hydraulic disc brakes for excellent braking power.

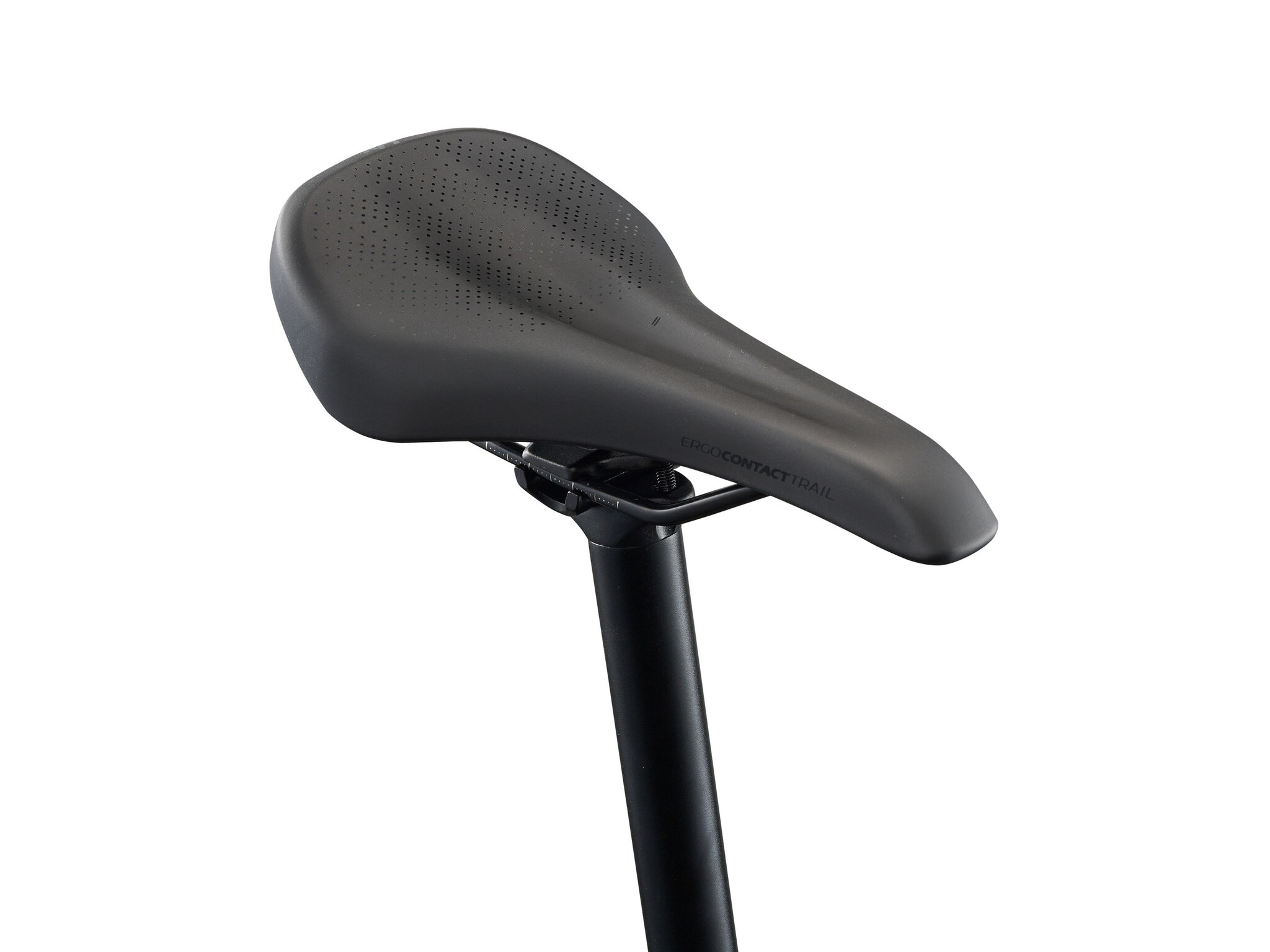

Saddle and grips designed for women and optimized for off-road E-bike riding
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Size | Height |
| XS | 5'0 - 5'4" |
| S | 5'2" - 5'7" |
| M | 5'5" - 5'9" |
| L | 5'7" - 5'11" |
GEOMETRY
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (inch) | 14.4 | 15.9 | 17.5 | 19.1 |
| A1 Seat Post Insertion Depth (inch) | 6.7 | 7.9 | 9.4 | 10.2 |
| B Seat Tube Angle | 78.0° | 78.0° | 74.0° | 74.0° |
| C Top Tube Length (inch) | 22 | 22.4 | 23.4 | 24.2 |
| D Head Tube Length (inch) | 4.3 | 4.5 | 4.1 | 4.5 |
| E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.8 | 1.8 |
| G Trail (inch) | 4.2 | 4.2 | 4.1 | |
| H Wheelbase (inch) | 45.3 | 45.7 | 44.8 | 45.7 |
| I Chain Stay Length (inch) | 17.7 | 17.7 | 18.5 | 18.5 |
| J Bottom Bracket Drop (inch) | 1.8 | 1.8 | 2.4 | 2.4 |
| K Stack (inch) | 23.5 | 23.6 | 24.3 | 24.7 |
| L Reach (inch) | 17 | 17.4 | 16.4 | 17.1 |
| M Stand Over Height (inch) | 28.2 | 28.8 | 29.5 | |
| N Handlebar Width (inch) | 27.2 | 29.5 | 29.5 | 29.5 |
| O Stem Length (inch) | 2 | 2 | 2 | 2.4 |
| P Crank Length (inch) | 6.5 | 6.5 | 6.5 | |
| Q Wheel Size | 27.5+ | 27.5+ | 29" | 29" |
SPECIFICATIONS
| Motor |
Giant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technology
|
| Controller |
Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, USB-C (10W)
|
| Display |
Giant RideControl Dash 2, high-angle visibility, full color LCD display
|
| Battery |
Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
|
| Charger |
Giant EnergyPak smart charger 4A
|
| Connectivity |
Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
|
| Sizes | XS, S, M, L (XS-S: 27.5, M-L: 29er) |
| Colours | Sandshell |
| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount |
| Fork | SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle |
| Shock | n/a |
| Handlebar | Giant Connect TR Riser 31.8x690~750mm |
| Grips | Giant Sole-O Grip |
| Stem | Giant Contact |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Ergo Trail ESG |
| Pedals | Anti-slip Platform |
| Shifters | Shimano Cues |

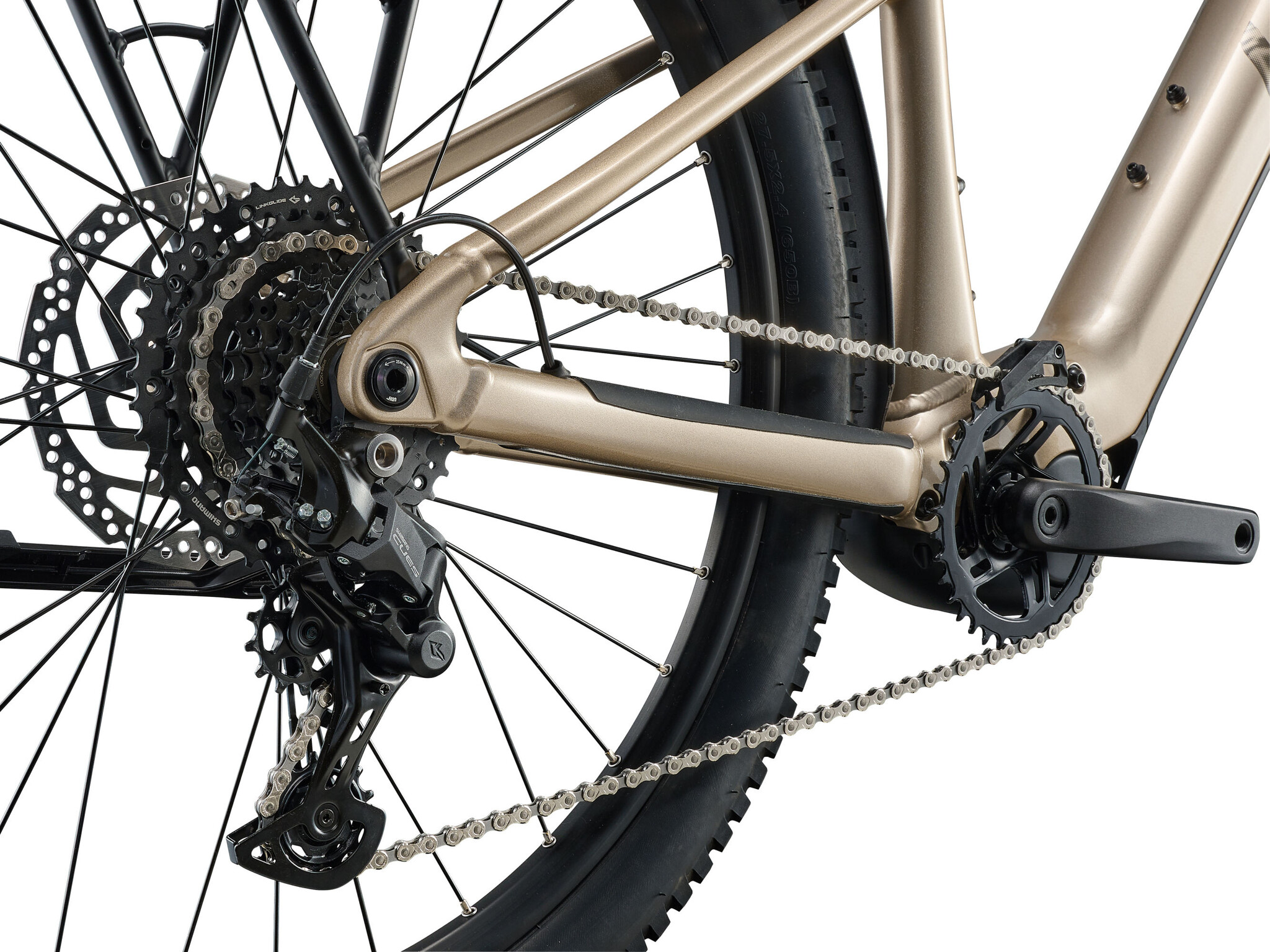

| Rear Derailleur | Shimano Cues 9-speed |
| Brakes | Shimano MT200, hydraulic disc, 180mm [F/R] |
| Brake Levers | Shimano MT-200 |
| Cassette | Shimano Cues, 11-41T, 9-speed |
| Chain | KMC eGlide NP/BK, e-bike optimized |
| Crankset | Forged allumin direct-mount chainring steel 36T, Forged alumium crank arm, (XS-S: 160mm, M-L: 165mm) |
| Bottom Bracket | - |
| Rims | Liv, GX03V, 27.5 / 29, Alluminum (XS-S: 27.5, M-L: 29) |
| Hubs | eTracker boost alloy 6-bolt disc 15x110mm [F] 12x148mm [R] |
| Spokes | Stainless steel |
| Tires | Maxxis Rekon XS-S: 27.5x2.4" / M-L: 29 x 2.4" Wire Bead 60TPI |
| Lighting | Recon EL50 Axa BlueLine Steady E6 rear |
| Carrier | Rack-It MIK |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
