| Article number: | 58-26303-451-4-858-214001-01 |
| Availability: | In stock |
DESCRIPTION

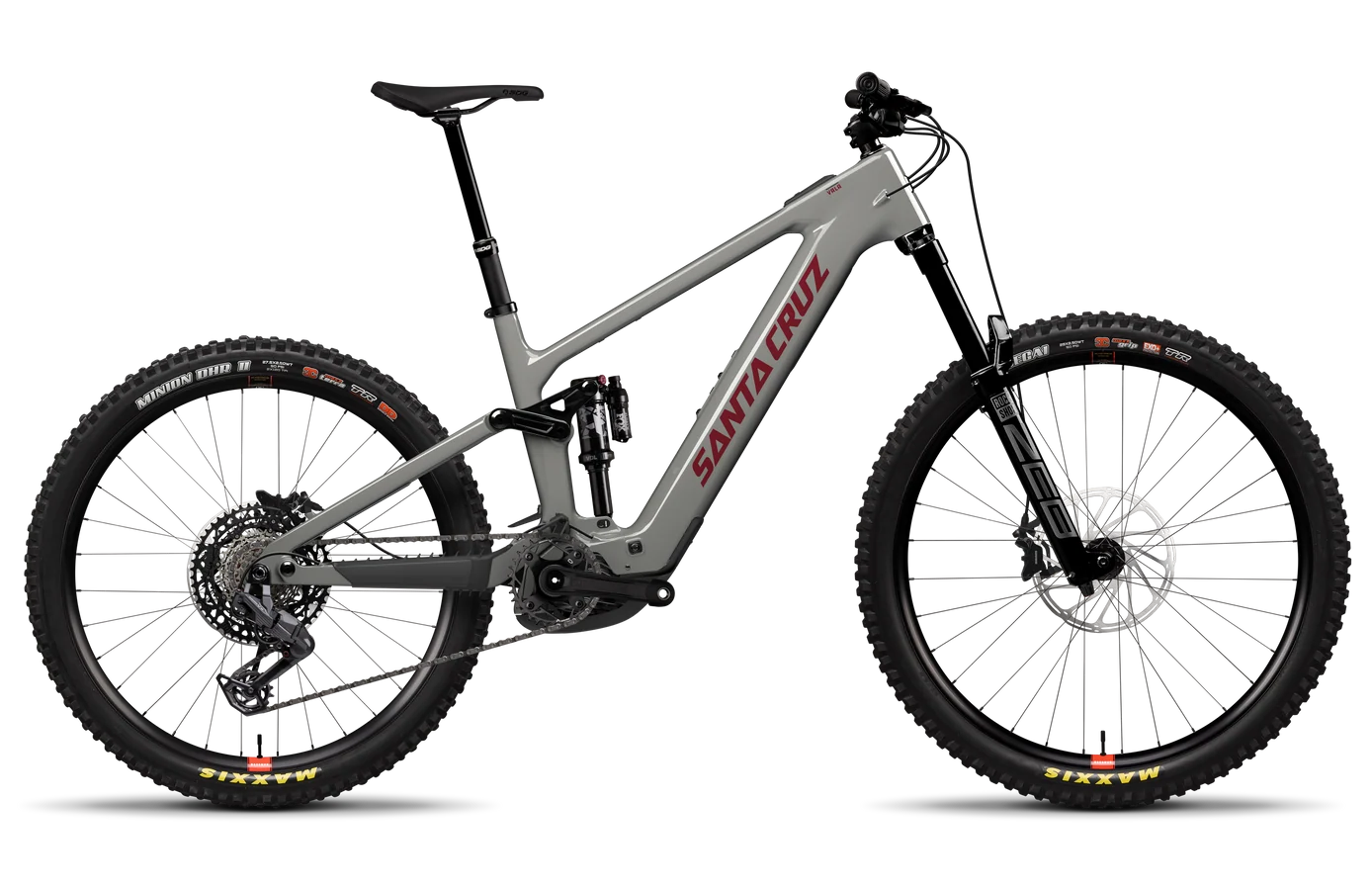

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
| Material |
Front (MM) |
Rear (MM) | Wheel Size | Weight (lbs) | Weight (kg) |
| C | 160 | 150 | MX | 49.14 | 22.29 |
FEATURES
- RockShox Zeb Base Fork
- FOX Float X Performance Shock
- SRAM 70 Eagle T-Type Drivetrain
FRAME SIZING
| Small | 5'1" - 5'5" | |
| Reach: 435mm | ||
| Medium | 5'5" - 5'9" | |
| Reach: 460mm | ||
| Large | 5'9" - 6'1" | |
| Reach: 480mm | ||
| X-Large | 6'0" - 6'4" | |
| Reach: 500mm | ||
| XX-Large | 6'4" - 6'7" | |
| (Carbon Only) | Reach: 525mm |
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
- Personal Preference
- A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
- Body Dimension
- Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Geometry
| S | M | L | XL | XXL | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | |
| Reach | 435 | 432 | 460 | 456 | 480 | 477 | 500 | 497 | 525 | 522 |
| Stack | 623 | 625 | 632 | 635 | 641 | 643 | 655 | 657 | 668 | 670 |
| Head tube angle | 64.2° | 63.9° | 64.2° | 63.9° | 64.2° | 63.9° | 64.2° | 63.9° | 64.2° | 63.9° |
| Head Tube Length | 110 | 110 | 120 | 120 | 130 | 130 | 145 | 145 | 160 | 160 |
| Rear Center | 439 | 439 | 440 | 440 | 443 | 443 | 446 | 446 | 450 | 450 |
| Front Center | 771 | 771 | 800 | 800 | 825 | 825 | 851 | 851 | 883 | 883 |
| BB Height | 344 | 340 | 344 | 340 | 344 | 340 | 344 | 340 | 344 | 340 |
| BB Drop Front | 28 | 32 | 28 | 32 | 28 | 32 | 28 | 32 | 28 | 32 |
| BB Drop Rear | 11 | 15 | 11 | 15 | 11 | 15 | 11 | 15 | 11 | 15 |
| Wheelbase | 1210 | 1210 | 1240 | 1240 | 1268 | 1268 | 1297 | 1297 | 1333 | 1333 |
| Top Tube Length | 573 | 573 | 601 | 601 | 622 | 622 | 645 | 645 | 673 | 673 |
| Seat Tube Length | 380 | 380 | 400 | 400 | 420 | 420 | 460 | 460 | 500 | 500 |
| Seat Tube Angle | 77.5° | 77.2° | 77.5° | 77.2° | 77.5° | 77.2° | 77.5° | 77.2° | 77.5° | 77.2° |
| Standover Height | 741 | 741 | 735 | 735 | 734 | 734 | 734 | 734 | 728 | 728 |
SPECIFICATIONS
Frame |
Material |
Carbon C |
Wheels |
Front Rim |
Reserve 30|HD AL |
|
Frame |
Carbon C MX 150mm Travel, 4-Bar |
Front Hub |
SRAM MTH 716, 15x110, 6-Bolt, 32h |
||
|
Travel |
150mm |
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
||
|
Weight |
49.14lbs / 22.29kg |
Rear Rim |
Reserve 30|HD AL | ||
|
Wheel Size |
MX |
Rear Hub |
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h | ||
|
Rear Tire |
Maxxis Minion DHRII, 27.5"x2.5", DoubleDown | ||||
Suspension |
Fork |
RockShox Zeb Base, 160mm | Valves | Reserve Fillmore Valves | |
|
Shock |
FOX Float X Performance, 205x60 | ||||
|
|
|
||||
Drivetrain |
Bottom Bracket |
N/A |
Ebike |
Battery | Bosch PowerTube Battery 600Wh |
|
Cassette |
SRAM XS 1270 Eagle T-Type, 10-52t | Drive Unit | Bosch Performance CX BDU38 | ||
|
Chain |
SRAM 70 Eagle T-Type, Flattop, 12spd |
Specs |
|||
|
Chainguide |
OneUp Chainguide |
Headset | Integrated (IS41/52) | ||
|
Crankset |
E13 Helix eSpec, 160mm | Fork Axle to Crown | 571mm | ||
|
Rear Derailleur |
SRAM 70 Eagle T-Type, 12spd |
Fork Offset |
44mm | ||
|
|
Suspension System |
Four-bar | |||
Brakes |
Brakes |
SRAM DB8 |
Rear Travel |
151mm | |
|
Front Rotor |
SRAM Centerline, 220mm |
Recommended Sag |
30% | ||
|
Rear Rotor |
SRAM Centerline, 200mm |
Shock Length |
205mm | ||
|
|
Shock Stroke |
60mm |
|||
Cockpit |
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | Bottom Bracket Shell | EMTB | |
|
Handlebars |
Burgtec Alloy Bar -or- e13 TRS Base Bar | Max Chainring Size | 36t | ||
|
Headset |
Cane Creek 10 IS Integrated Headset | Front Derailleur Mount | No Compatibility | ||
|
Saddle |
SDG Bel-Air V3 Max | UDH Compatible | Yes | ||
|
Seatpost |
SDG Tellis Dropper, 31.6 |
Rear Spacing | 148mm | ||
|
Stem |
OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm |
Rear Brake Mount |
200mm PM |
||
|
|
|
Max Rotor Size |
220mm |
||
|
|
|
Max Tire Clearance |
2.5" | ||
|
|
|
Seat Post Diameter |
31.6mm | ||
|
|
Seat Clamp Diameter | 36.4mm | |||
|---|---|---|---|---|---|
|
|
|
Water Bottle Mounts | 1 |
