| Article number: | 58-26315-448-3-918-314301-01 |
| Availability: | In stock |
DESCRIPTION

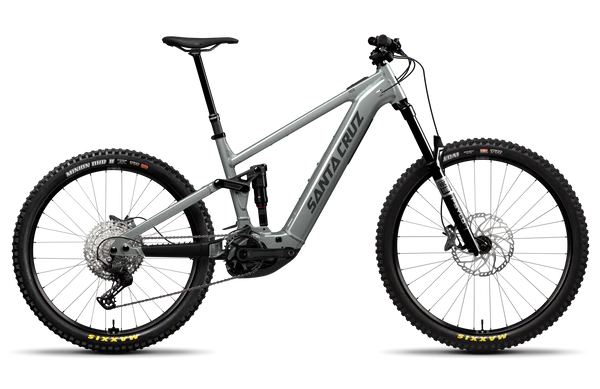

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
| Material |
Front (MM) |
Rear (MM) | Wheel Size | Weight (lbs) | Weight (kg) |
| AL | 160 | 150 | MX | 53.11 | 24.09 |
FEATURES
- Aluminum Frame
- RockShox Psylo Gold RC Fork
- RockShox Deluxe Select Shock
- Shimano Deore M6100 Drivetrain
- Bosch Performance CX BDU38 Drive Unit
FRAME SIZING
| Small | 5'1" - 5'5" | |
| Reach: 435mm | ||
| Medium | 5'5" - 5'9" | |
| Reach: 460mm | ||
| Large | 5'9" - 6'1" | |
| Reach: 480mm | ||
| X-Large | 6'0" - 6'4" | |
| Reach: 500mm |
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
- Personal Preference
- A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
- Body Dimension
- Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 | 458 | 478 | 498 |
| Stack | 625 | 634 | 643 | 656 |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Head Tube Length | 110 | 120 | 130 | 145 |
| Rear Center | 440 | 440 | 445 | 445 |
| Front Center | 771 | 800 | 825 | 851 |
| BB Height | 342 | 342 | 342 | 342 |
| BB Drop Front | 30 | 30 | 30 | 30 |
| BB Drop Rear | 13 | 13 | 13 | 13 |
| Wheelbase | 1211 | 1241 | 1270 | 1297 |
| Top Tube Length | 578 | 606 | 628 | 652 |
| Seat Tube Length | 380 | 400 | 420 | 460 |
| Seat Tube Angle | 76.9° | 76.9° | 76.8° | 76.8° |
| Standover Height | 744 | 745 | 729 | 732 |
SPECIFICATIONS
Frame |
Material |
Aluminum |
Wheels |
Front Rim |
WTB ST Tough 30 |
|
Frame |
Aluminum MX 150mm Travel, 4-Bar |
Front Hub |
WTB Frequency Sport, 15x110, 6-Bolt, 32h |
||
|
Travel |
150mm |
Front Tire |
Maxxis Assegai 29"x2.5", EXO+ |
||
|
Weight |
53.11lbs /24.09kg |
Rear Rim |
WTB ST Tough 30 | ||
|
Wheel Size |
MX |
Rear Hub |
WTB Frequency Sport, 12x148, MicroSpline, 6-Bolt, 32h | ||
|
Rear Tire |
Maxxis Minion DHRII, 27.5"x2.5", DoubleDown | ||||
Suspension |
Fork |
RockShox Psylo Gold RC, 160mm | Valves | Reserve Fillmore Valves | |
|
Shock |
RockShox Deluxe Select, 205x60 | ||||
|
|
|
||||
Drivetrain |
Bottom Bracket |
N/A |
Ebike |
Battery | Bosch PowerTube Battery 600Wh |
|
Cassette |
Shimano Deore 6100, 10-51t | Drive Unit | Bosch Performance CX BDU38 | ||
|
Chain |
Shimano Deore 6100, 12spd |
Specs |
|||
|
Chainguide |
OneUp Chainguide |
Bottom Bracket Shell | EMTB | ||
|
Crankset |
E13 Helix eSpec, 160mm | Rear Brake Mount | 200mm PM | ||
|
Rear Derailleur |
Shimano Deore M6100, SGS, 12spd |
Shock Length |
205mm | ||
|
|
Fork Axle to Crown |
571mm | |||
Brakes |
Brakes |
Shimano Deore M6120 |
Fork Offset |
44mm | |
|
Front Rotor |
Shimano RT66, 220mm |
Front Derailleur Mount |
No Compatibility | ||
|
Rear Rotor |
Shimano RT66, 203mm |
Headset |
Integrated (IS41/52) | ||
|
|
Max Chainring Size |
36t |
|||
Cockpit |
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
Max Rotor Size |
220mm | |
|
Handlebars |
Santa Cruz Bicycles Aluminum Bar, 35x800, 30mm Rise |
Max Tire Size |
2.5" | ||
|
Headset |
FSA IS-2/47/42 ACB |
Rear Spacing |
148mm |
||
|
Saddle |
WTB Silverado Medium, Steel |
Rear Travel |
150mm | ||
|
Seatpost |
SDG Tellis Dropper, 31.6 |
Recommended Sag |
30% | ||
|
Stem |
OneUp Enduro Stem, 42mm |
Seat Clamp Diameter |
36.4mm |
||
|
|
|
Shock Stroke |
60mm |
||
|
|
|
Suspension System |
Four-bar | ||
|
|
|
UDH Compatible |
Yes | ||
|
|
Water Bottle Mounts | 1 |
|---|
