| Article number: | 57230-2022-14 |
| Availability: | In stock |
DESCRIPTION

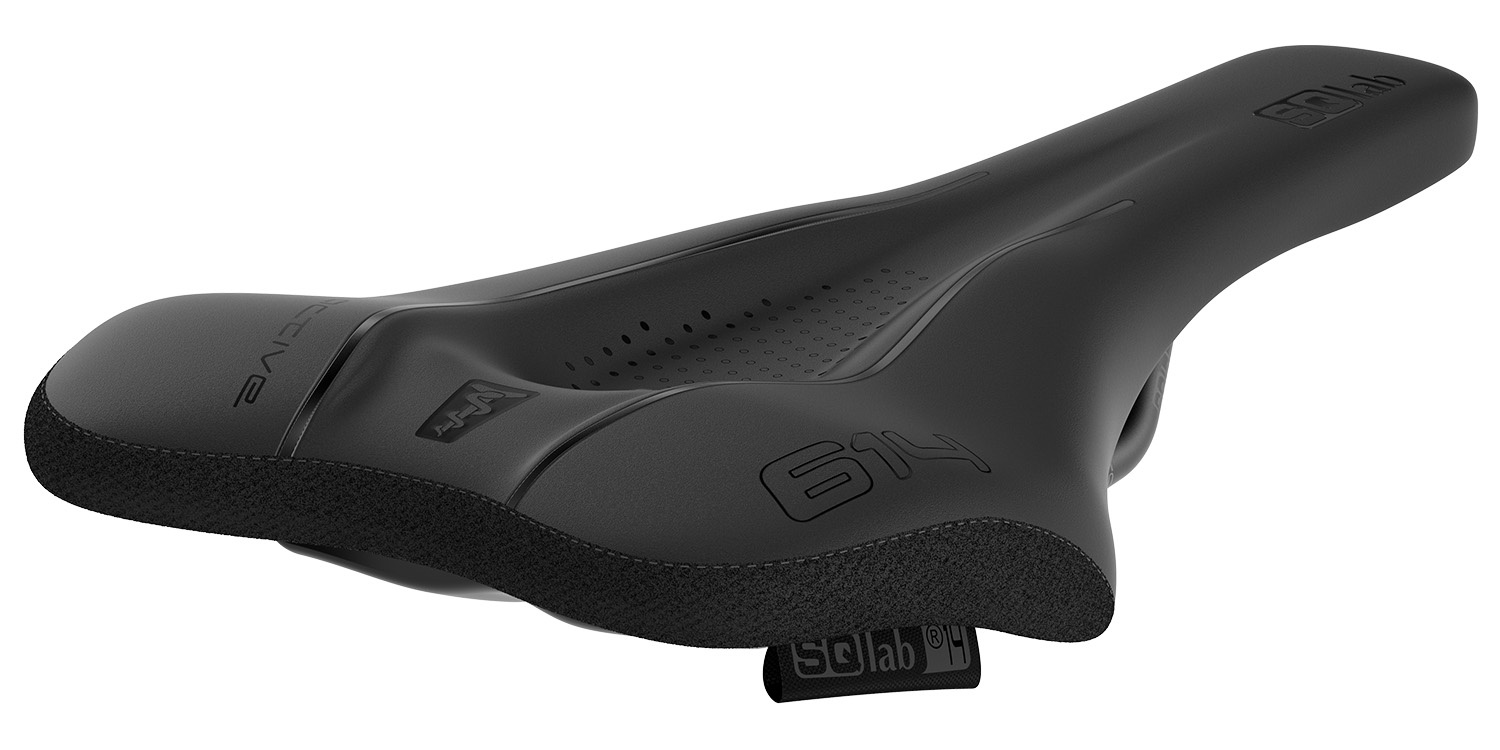

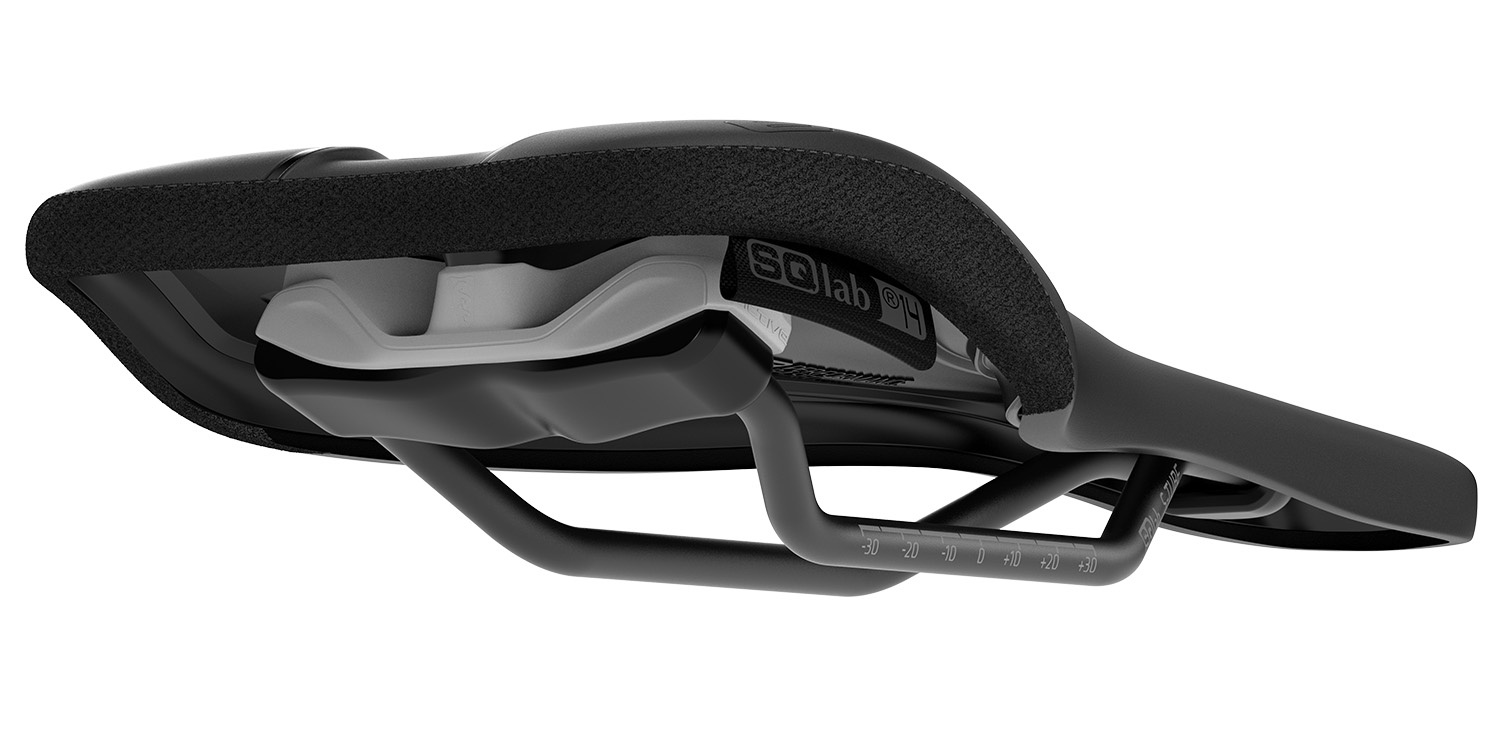

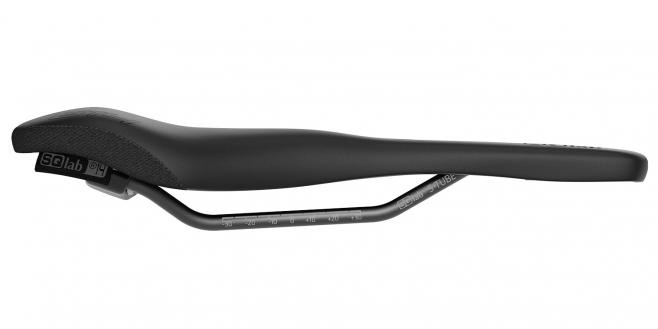

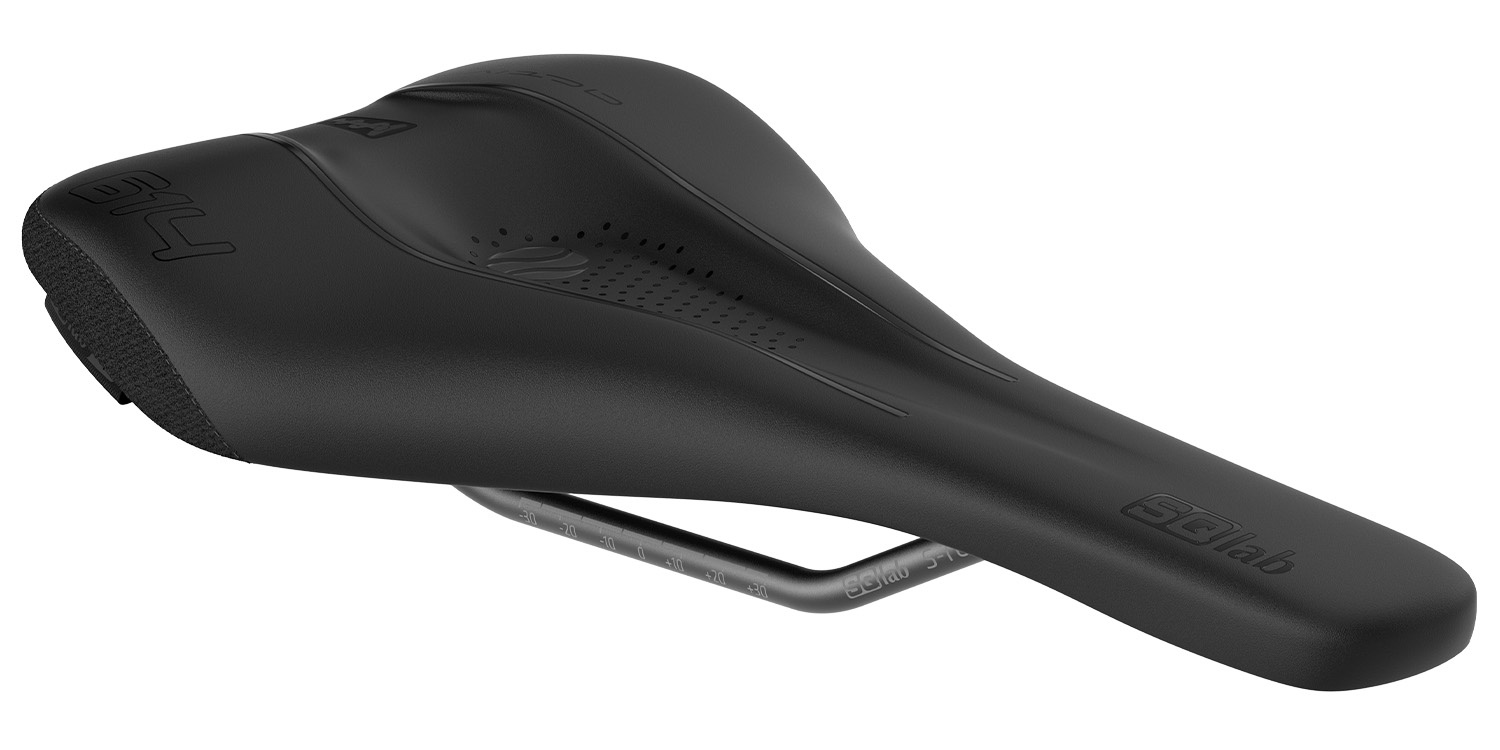

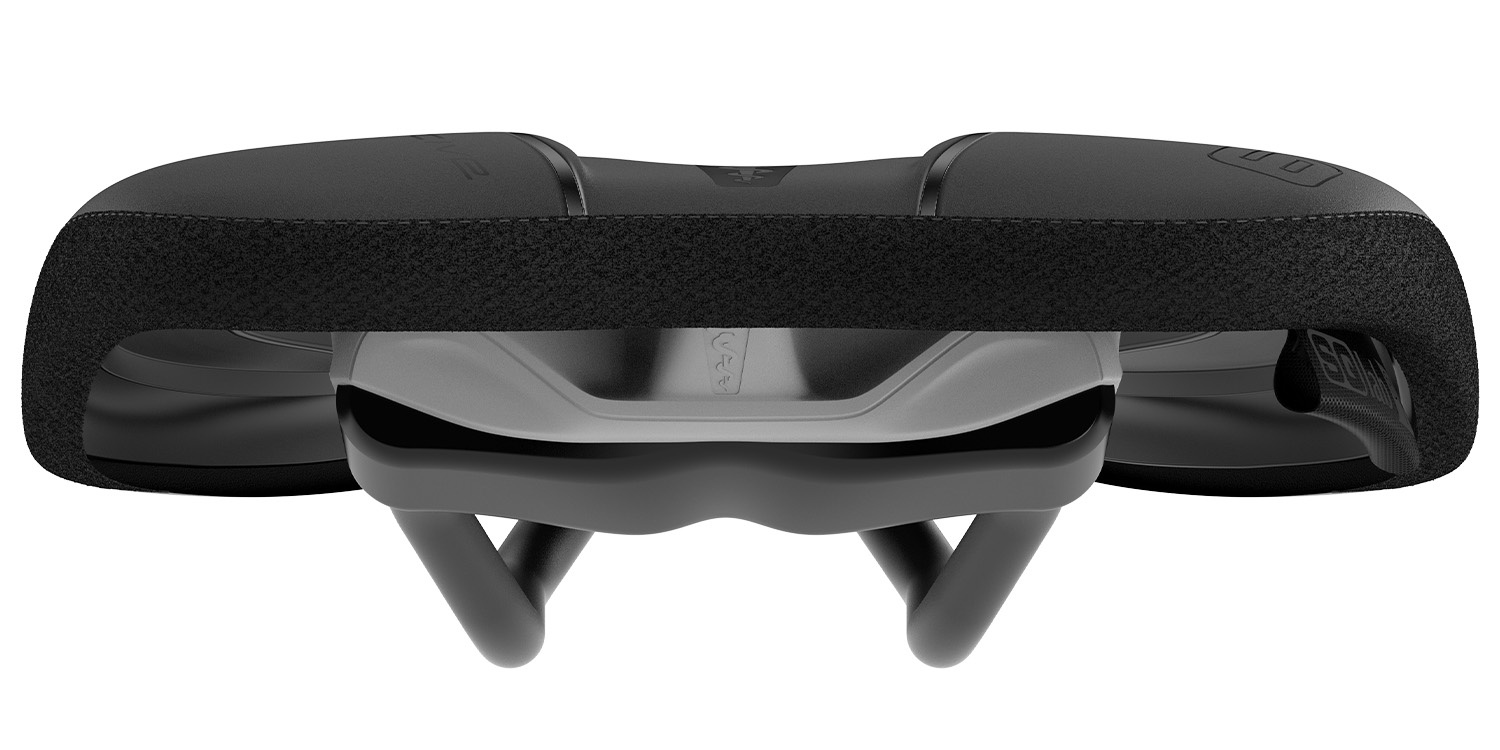

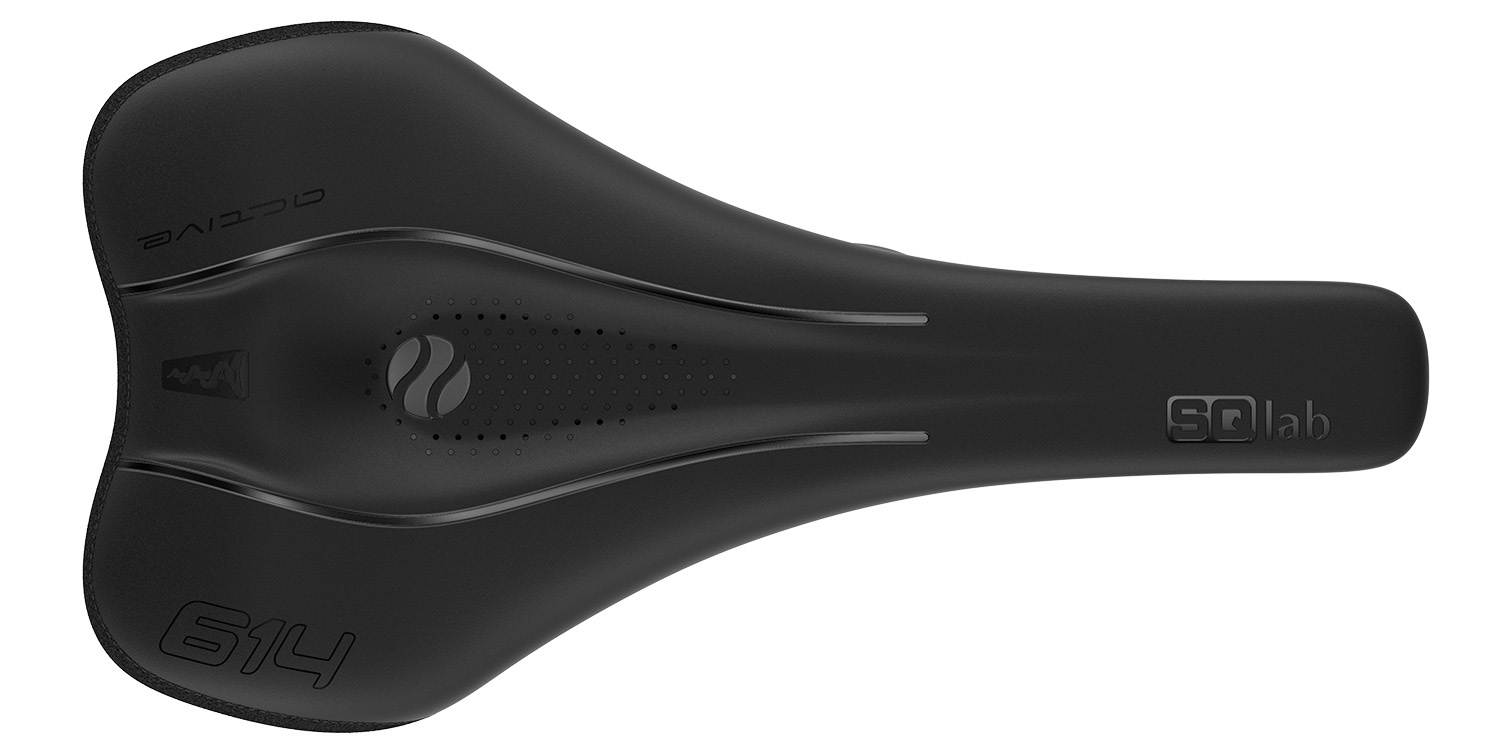

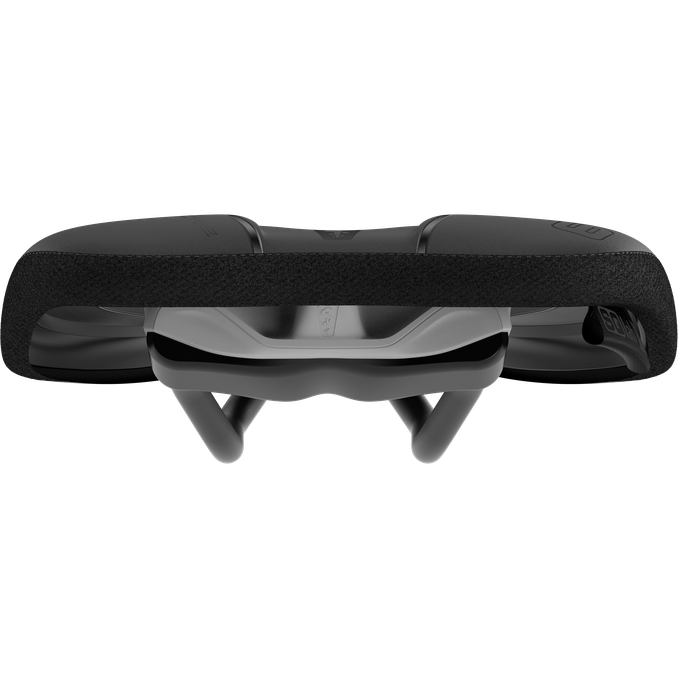

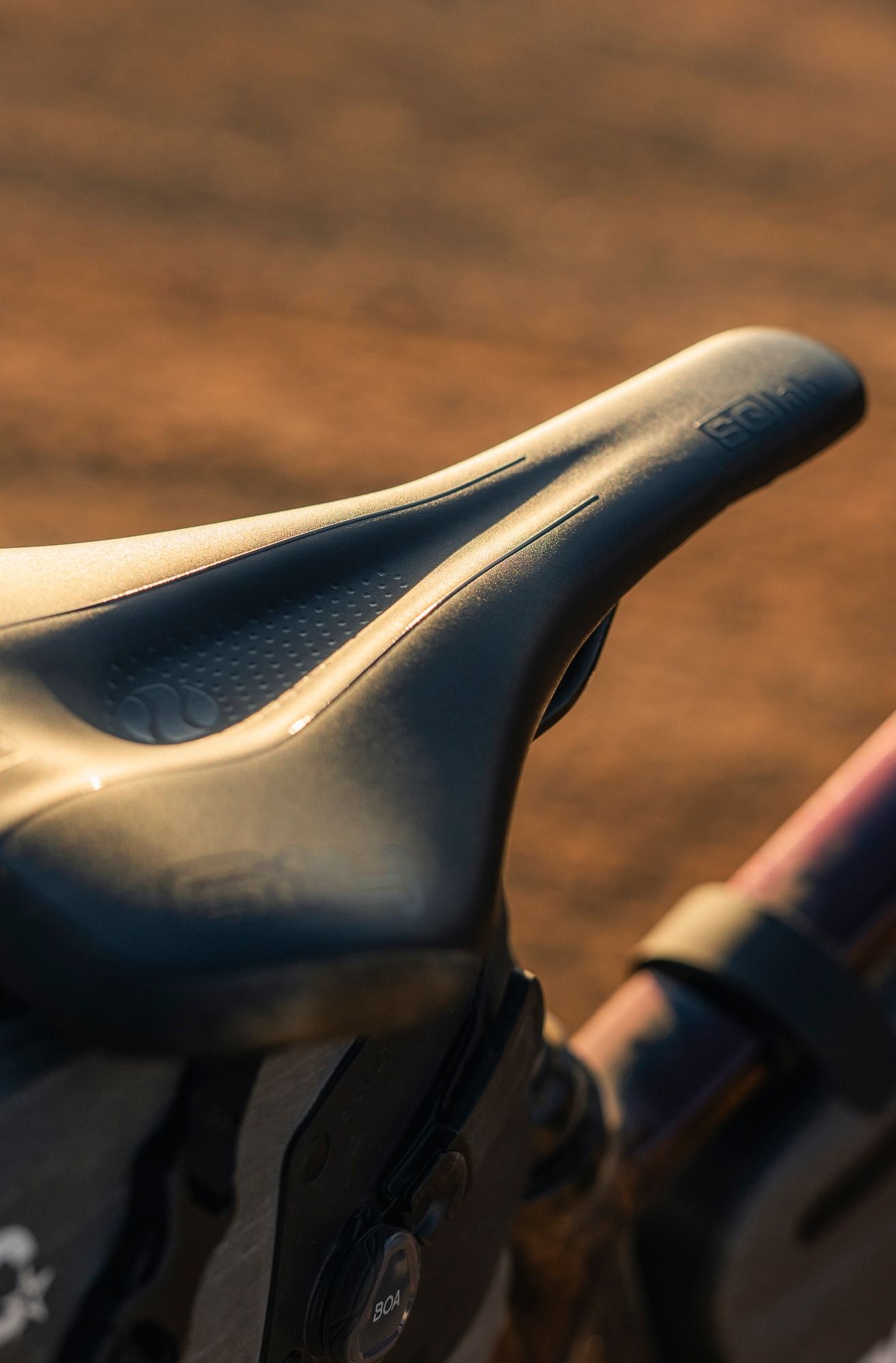

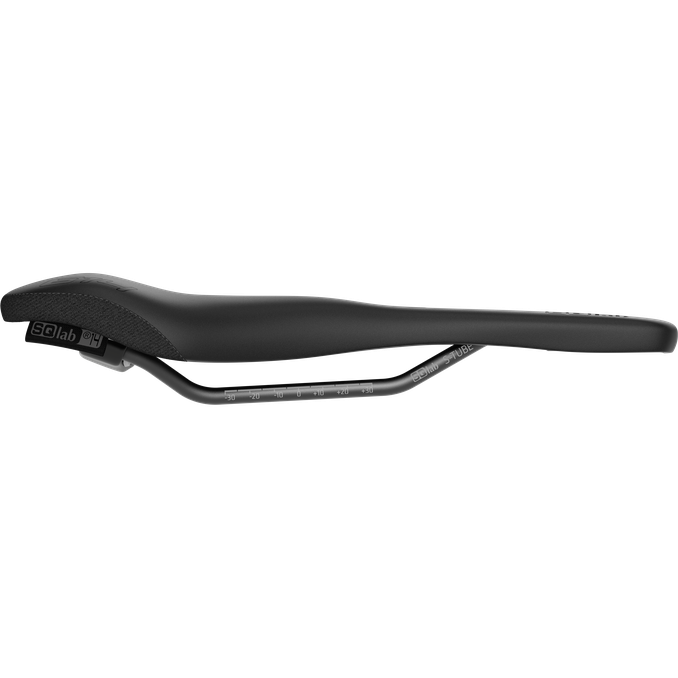

The 614 ERGOWAVE® active 2.1 is optimized for gravel use, with ergonomic efficiency without compromising comfort. The slim saddle tapering in combination with the additional padding compared to a road bike saddle, makes it the perfect companion for every gravel ride and combines the best of the road bike and mountain bike worlds. The active -System increases comfort in the lower back by replicating the natural pelvic motion that occurs while walking. Ideal for long rides and bikepacking adventures.
Key Features:
- ERGOWAVE® shape – for a defined seating position and pressure relief in the perineal area
- Active System 2.1 – Supports the natural pelvic movement, can help reduce back pain
- Slim tapering – Leg freedom in a sporty seating position
- Firm padding – Ideal for long distances
FEATURES
![]() |
![]() |
![]() |
||
|
Comfort Whether it's a long ride or a spontaneous adventure: the 614 Saddle has your back when it counts - for relaxed sitting, a stable position, and comfort you can feel from the first to the last mile. |
Relief When the road is long, every detail matters: the 614's active technology relieves your lower back, follows your pedal stroke - and gives you that reassuring feeling that you could just keep going. |
Freedom Feel the open space, not the pressure: the ergonomic shape gives you maximum freedom of movement off-road - while protecting where it matters most. For unrestricted riding joy, wherever the trail takes you. |
![]() |
Perfect Fit |
|
Pressure relief |
![]() |
|
![]() |
Motion |
|
|
From now on, SQlab Active saddles are supplied exclusively with a medium elastomer. This helps us reduce overproduction, waste, and unnecessary use of resources, making an important contribution to greater sustainability. The white and black elastomers for individual adjustment of the Active System remain available at no additional cost. The elastomer set can simply be added to the cart in the webshop if needed. The discount is applied automatically at checkout. Alternatively, it is also available from your specialist retailer. |
||
SPECIFICATIONS
| ARTICLE NUMBER | 57230-2022 |
|---|---|
| BAR CODE | 4062695004387, 4062695004394, 4062695004400, 4062695004417, 4062695004424 |

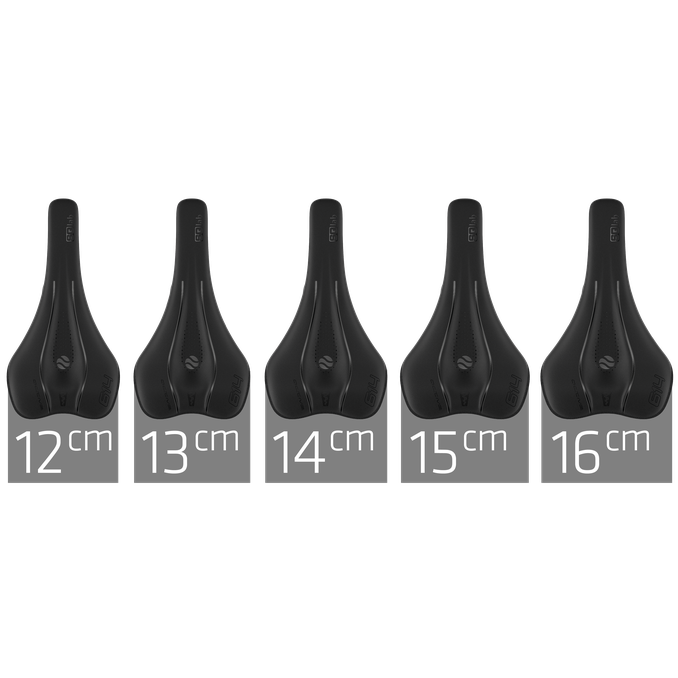

| SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH) | 12 / 13 / 14 / 15 / 16 |
| AREA OF USE | Gravel |
| WEIGHT(S) IN G | approx. 229 / 231 / 234 / 244 / 254 |
| LENGTH(S) IN MM | approx. 275 |
| EFFECTIVE HEIGHT IN MM | approx. 45 |
| ACTIVE TECHNOLOGY | Yes - Sport |
| MATERIAL RAILS | S-Tube (light stainless steel - hollow) |
| MATERIAL BASE | Glass Fibre reinforced Polyamide Compound (PA12 + GF) |
| MATERIAL PADDING | Superlight Foam |
| MATERIAL COVER | Impact Resistant Microfibre |
| HARDNESS IN SQ-SHORE | 55 |
| RELIEF OF PERINEAL AREA IN % | 65 |
| MAXIMUM LOAD IN KG | 100 |
| MAXIMUM TORQUE IN NM | 18 |
| E-BIKE READY | Yes |
| DIN/ASTM CATEGORIES | 4 |
| GENDER | Unisex |
