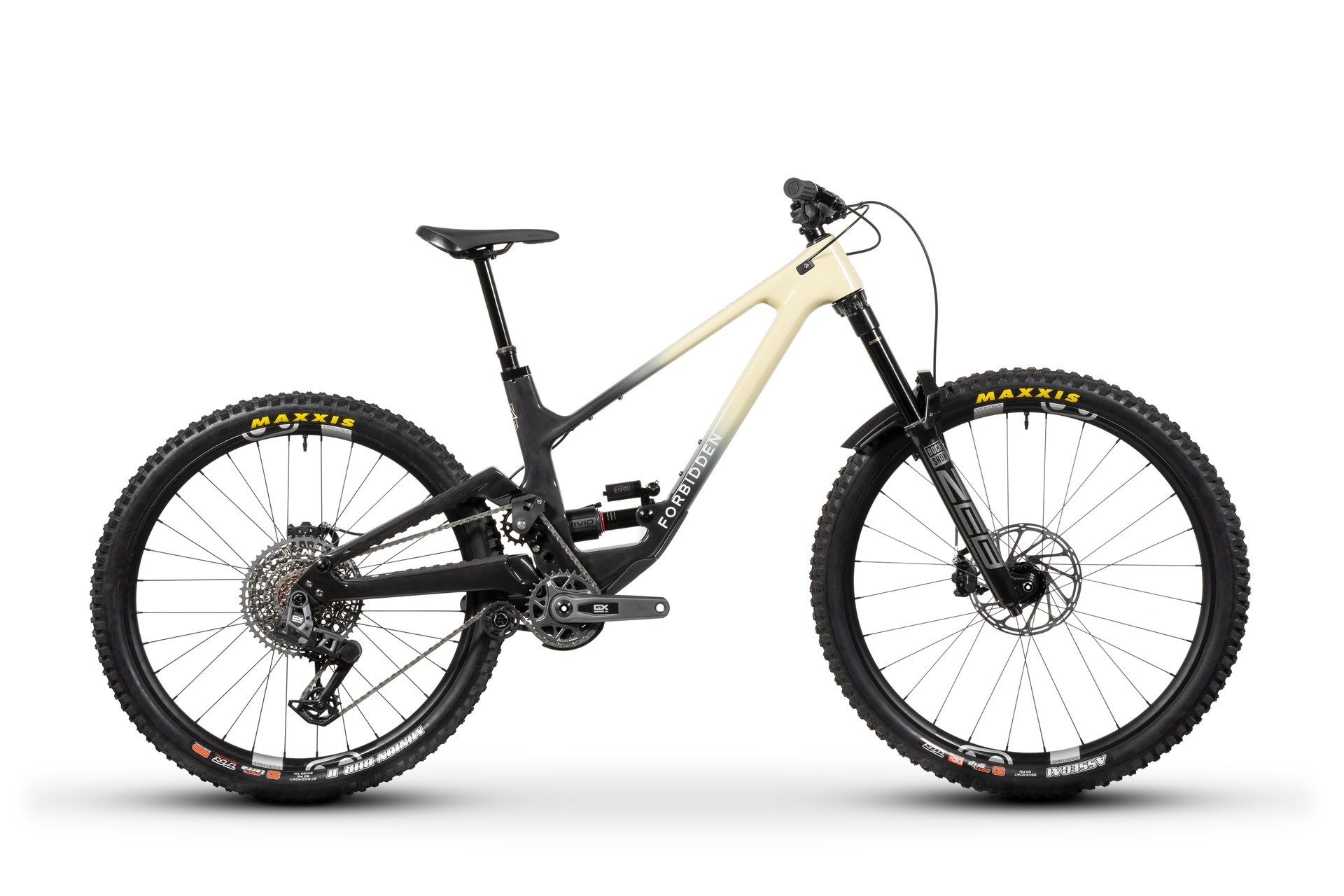

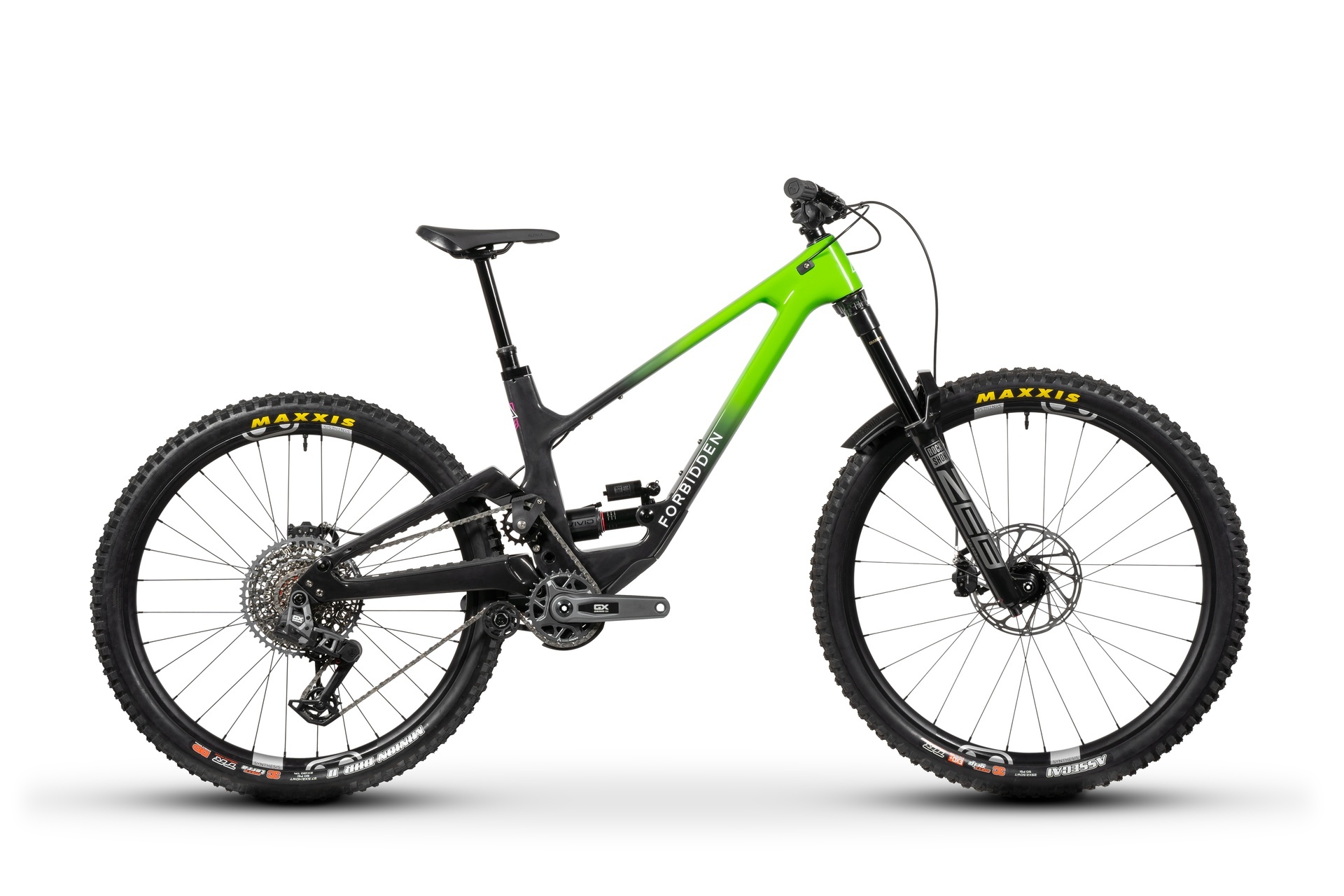

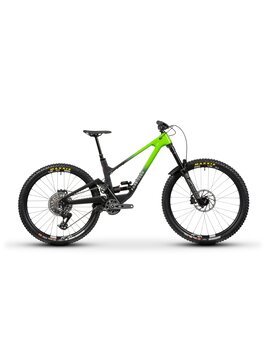

Dreadnought forged a new path for performance high pivot bikes and cemented the platform’s category-defying nature. It dealt handily with the demands of the World Cup Downhill circuit, revelled in the rigours of enduro racing, and endured lap after lap of abuse in the bike park, while still craving more. From the race track to the bike park and everything in between, Dreadnought has proven its unparalleled versatility.
Now it’s time for the big guns to get the V2 treatment. Dreadnought V2 carries the torch forward into a new realm of capability, giving riders even more firepower than ever before. We’ve taken our next-gen suspension system, seen on the class-leading Druid and Supernought, and applied it to our revered brawler of a bike. We didn’t just up the calibre, add more travel, and call it good. We overhauled every detail to refine and distill its purpose into something that exhilarates.
From the helm of the Dreadnought, you see no obstacles, only opportunities.
Fear Nothing.
| Intended Use | Suspension | Wheel Size |
| Enduro / Bikepark | 160mm Rear / 170mm Front | Full 29er or Mixed (MX) |
FEATURES
 |
 |
|
|
Trifecta V2 Platform
Dreadnought now sports an inverted four-bar suspension design. This evolution was necessitated by our desire to retain the ride characteristics of the original Dreadnought while optimizing certain ride characteristics. At the same time, we bring Dreadnought in line with our S-sizing. |
Hardware
The bearing-in-rocker design of our new forged V2 Rate Control Linkage allows us to use locking collet axles and oversized bearings for easy maintenance and dependability. This option isn’t the lightest but trading a few grams for a long-lasting, easily serviced linkage, was the practical choice. |
|
 |
 |
|
|
Modular Dropouts
Wheel size configuration changes are achieved via modular dropouts. Meaningful geometry and weight bias adjustments are also be made via 27.5” +10mm, 27.5” -10mm, and 29” +10mm dropouts. Giving riders the option to customize weight bias and handling characteristics to suit riding style or terrain type. 200mm direct brake mount included as standard. Framekits are sold with MX and 29” dropouts. |
Cable Routing
Our adaptable cable routing allows you to neatly route the cables and hoses no matter where in the world you come from or with what hand you operate your rear brake with. New for V2 bikes is the inclusion of clamping hose/cable ports on the rear triangle. This ensures no unwanted movement anywhere along the frame. |
|
 |
 |
|
|
Water Bottle Fitment
Even our smallest Dreadnought frame size can fit a full-size 26oz water bottle. Remember, hydration is your friend, but sweaty backs most definitely are not. |
Frame Protection
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet and the hard to clean bits free from crud. |
|
 |
 |
|
|
Accessory Mount
The ‘under the top tube’ mounting screws allow for the attachment of various accessory mounting solutions; pump, tools, a banana, the kitchen sink, go crazy, just don’t hang a water bottle there, please. |
Sensible Standards
Threaded BB, Boost rear wheel spacing, press in headset cups – we only use what makes sense from a design and durability standpoint. You won’t find any questionable trends here – looking at you headset cable routing. |
SIZE GUIDE
| 5'2" 158cm | 5'6" 168cm | 5'10 178cm | 6'2" 188cm | 6'6" 198cm | ||||
| S1 MX | ||||||||
| S1 29" | ||||||||
| S2 MX | ||||||||
| S2 S9" | ||||||||
| S3 MX | ||||||||
| S3 29" | ||||||||
| S4 MX | ||||||||
| S4 S9" | ||||||||
GEOMETRY
 |
||||||||||||
| 29" | MX | |||||||||||
| Fork Size 170mm | S1 | S2 | S3 | S4 | Fork Size 170mm | S1 | S2 | S3 | S4 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 435 | 455 | 475 | 495 | A | Reach | 430 | 450 | 471 | 491 | |
| B | Stack | 615 | 628 | 642 | 655 | B | Stack | 618 | 632 | 645 | 659 | |
| C | Hori. Top Tube Length | 571 | 594 | 617 | 640 | C | Hori. Top Tube Length | 572 | 595 | 618 | 641 | |
| D | Seat Tube Length | 400 | 420 | 440 | 470 | D | Seat Tube Length | 400 | 420 | 440 | 470 | |
| E | Seat Tube Angle (Effective) | 77.5 | 77.5 | 77.5 | 77.5 | E | Seat Tube Angle (Effective) | 77.1 | 77.1 | 77.1 | 77.1 | |
| F | Seat Tube Angle (Actual) | 74.5 | 76.3 | 77.5 | 77.5 | F | Seat Tube Angle (Actual) | 74.1 | 75.8 | 77.1 | 77.1 | |
| G | Head Tube Length | 90 | 105 | 120 | 135 | G | Head Tube Length | 90 | 105 | 120 | 135 | |
| H | Head Tube Angle | 63.5 | 63.5 | 63.5 | 63.5 | H | Head Tube Angle | 63.1 | 63.1 | 63.1 | 63.1 | |
| I | Front Center | 776 | 802 | 829 | 856 | I | Front Center | 775 | 802 | 829 | 855 | |
| J | Rear Center | 431 | 446 | 460 | 475 | J | Rear Center | 431 | 446 | 460 | 475 | |
| K | Wheel base | 1206.5 | 1247.7 | 1288.9 | 1330.1 | K | Wheel base | 1206.5 | 1247.6 | 1288.8 | 1330.0 | |
| L | BB Drop | -26 | -26 | -26 | -26 | L | BB Drop | -19.6 | -19.6 | -19.6 | -19.6 | |
| M | BB Height | 347 | 347 | 347 | 347 | M | BB Height | 341 | 341 | 341 | 341 | |
| N | Stand Over | 771 | 775 | 777 | 780 | N | Stand Over | 771 | 775 | 777 | 780 | |
| O | Fork Length | 586 | 586 | 586 | 586 | O | Fork Length | 586 | 586 | 586 | 586 | |
| P | Fork Offset | 44 | 44 | 44 | 44 | P | Fork Offset | 44 | 44 | 44 | 44 | |
SPECIFICATIONS
| Frame | Dreadnought V2 Full Carbon - 160mm Travel |
| Fork | RockShox Zeb Select+ |
| Rear Shock | RockShox Vivid Select+ |
| Headset | Cane Creek 40 |
| Grips | Forbidden |
| Handle Bars | Forbidden |
| Stem | Forbidden |
| Seat Post | OneUp Dropper Post |
| Seat Post Remote | OneUp MMX UFT Lever |
| Seat Post Clamp | Forbidden |
| Saddle | Fizik Terra Alpaca X5 |
| Front Brake | SRAM Maven Bronze 4-Piston |
| Front Brake Rotor | SRAM Centerline 2.0 - 200mm |
| Rear Brake | SRAM Maven Bronze 4-Piston |
| Rear Brake Rotor | SRAM Centerline 2.0 - 200mm |
| Rear Shifter | SRAM Eagle 90 |
| Rear Derailleur | SRAM Eagle 90 T-Type 12speed |
| Cassette | SRAM XS-1275 T-Type 10-52T 12speed |
| Chain | SRAM Eagle 70 T-Type Flattop - 12speed |
| Crankset | SRAM Eagle 90 T-Type 32T - 165mm |
| Pedals | Not included |
| Upper Chain Guide | Forbidden Race Guide |
| Lower Chain Guide | MRP MXg |
| Bottom Bracket | SRAM DUB Threaded BSA |
| Front Hub | Crankbrothers Synthesis Enduro Std |
| Front Axle | Maxle Stealth |
| Rear Hub | Crankbrothers Synthesis Enduro Std |
| Rear Axle | SRAM Maxle Stealth |
| Spokes | Sapim Race |
| Rims | Crankbrothers Synthesis Enduro - Alloy |
| Front Tire | Maxxis Assegai - 3C MaxxGrip - EXO+ |
| Rear Tire | Maxxis DHR - 3C MaxxTerra - DD |
| Included | Stans Sealant - 200ml |
| Included | SRAM AXS EP Powerpack 1 Battery |
