| Article number: | 1032016124-OLI-S |
| Availability: | In stock |
DESCRIPTION

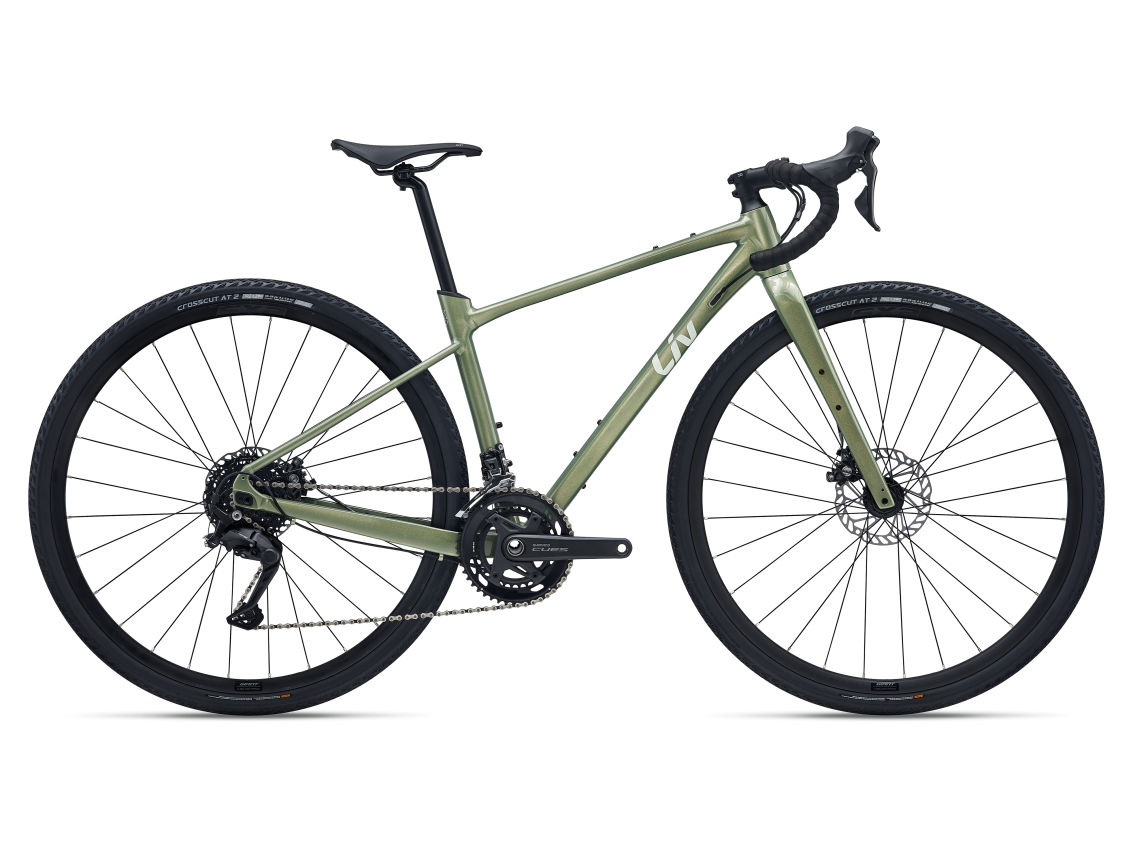

The Devote was designed to satisfy your gravel wanderlust. Balancing performance and ruggedness, this versatile bike is ready for anything from short cuts through the woods to long, winding trails, as well as crushing your first gravel race.
KEY PERFORMANCE FACTORS
Lightweight and SleekThe durable yet lightweight ALUXX-grade aluminum frame with an Advanced-grade composite fork offer a smooth and forgiving ride, handy when you find yourself on the road less traveled. The redesigned geometry puts you in a more performance-oriented position and gives you added control whether you’re picking up speed or detouring downhill to the swimming hole. |
|
Superior Comfort and ControlThe Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides. |
|
Unmatched VersatilityAdapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. |
FEATURES
 |
 |
 |
||
OverDriveDesigned to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness. |
Tubeless SystemEngineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort. |
|
D-Fuse TechnologyThe D-Fuse seatpost and handlebar were designed to function as a system to absorb shocks and vibrations from various surfaces, ensuring a smoother and more efficient ride. |
|
|
|
|
|
|
|
|
|
|
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
|
|
SIZE GUIDE
| XS | 4'11" - 5'4" |
| S | 5'2" - 5'7" |
| M | 5'5" - 5'9" |
| L | 5'7" - 5'11" |
GEOMETRY
| XS | S | M | L | |
|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (inch) | 15.4 | 16.5 | 18.3 | 19.7 |
| B Seat Tube Angle | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° | 74.5° | 74.4° |
| C Top Tube Length (inch) | 20.7 | 20.7 | 21.1 | 21.1 | 21.5 | 21.5 | 21.9 | 21.9 |
| D Head Tube Length (inch) | 3.5 | 4.3 | 5.5 | 6.3 |
| E Head Tube Angle | 70.0° | 69.9° | 70.5° | 70.4° | 71.0° | 70.9° | 71.0° | 70.9° |
| F Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G Trail (inch) | 3.1 | 3.2 | 3 | 3.1 | 2.8 | 3 | 2.8 | 3 |
| H Wheelbase (inch) | 40 | 40.4 | 40.3 | 40.7 | 40.6 | 41 | 41.1 | 41.4 |
| I Chain Stay Length (inch) | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 | 16.9 | 17.3 |
| J Bottom Bracket Drop (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K Stack (inch) | 20.6 | 20.6 | 21.4 | 21.5 | 22.6 | 22.6 | 23.3 | 23.4 |
| L Reach (inch) | 15 | 14.9 | 15.1 | 15.1 | 15.2 | 15.2 | 15.4 | 15.3 |
| M Stand Over Height (inch) | 26.8 | 27.1 | 27.9 | 28.1 | 29.4 | 29.7 | 30.7 | 30.9 |
| N Handlebar Width (inch) | 15.7 | 15.7 | 16.5 | 16.5 |
| O Stem Length (inch) | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.5 | 6.7 | 6.8 | 6.8 |
SPECIFICATIONS
| Sizes | XS, S, M, L |
| Colours | Gleaming Olive |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, flat mount disc, flip chip – dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, flat mount disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, XS: 400mm, S: 400mm, M: 420mm, L: 420mm |
| Grips | Cork Tape w/ Gel VLT004-02 |
| Stem | Giant Contact, 8-degree, XS: 50mm, S: 60mm, M: 70mm, L: 80mm |
| Seatpost | Giant D-Fuse, alloy |
| Saddle | Liv Grit |
| Shifters | Shimano CUES U3030, 2x9 |
| Front Derailleur | Shimano CUES U6030 |
| Rear Derailleur | Shimano CUES U4020 |
| Brakes | Shimano Mechanical Disc Brake BR-RS305 SUPER SLR, [F]160mm, [R]160mm |
| Brake Levers | Shimano CUES U3030 |
| Cassette | Shimano CS-LG300, 11x36 |
| Chain | KMC X11 with Missing Link |
| Crankset | Shimano FC-U6030, 32/46, XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant S-X2 Disc, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless steel |
| Tires | CrossCut GRIP 1; 700x45c |
| Extras | 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, tubeless prepared, ISC clamp |
| Max Tire Clearance | 53mm |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
