| Article number: | 1095007297-DUST-L29 |
| Availability: | In stock |
DESCRIPTION

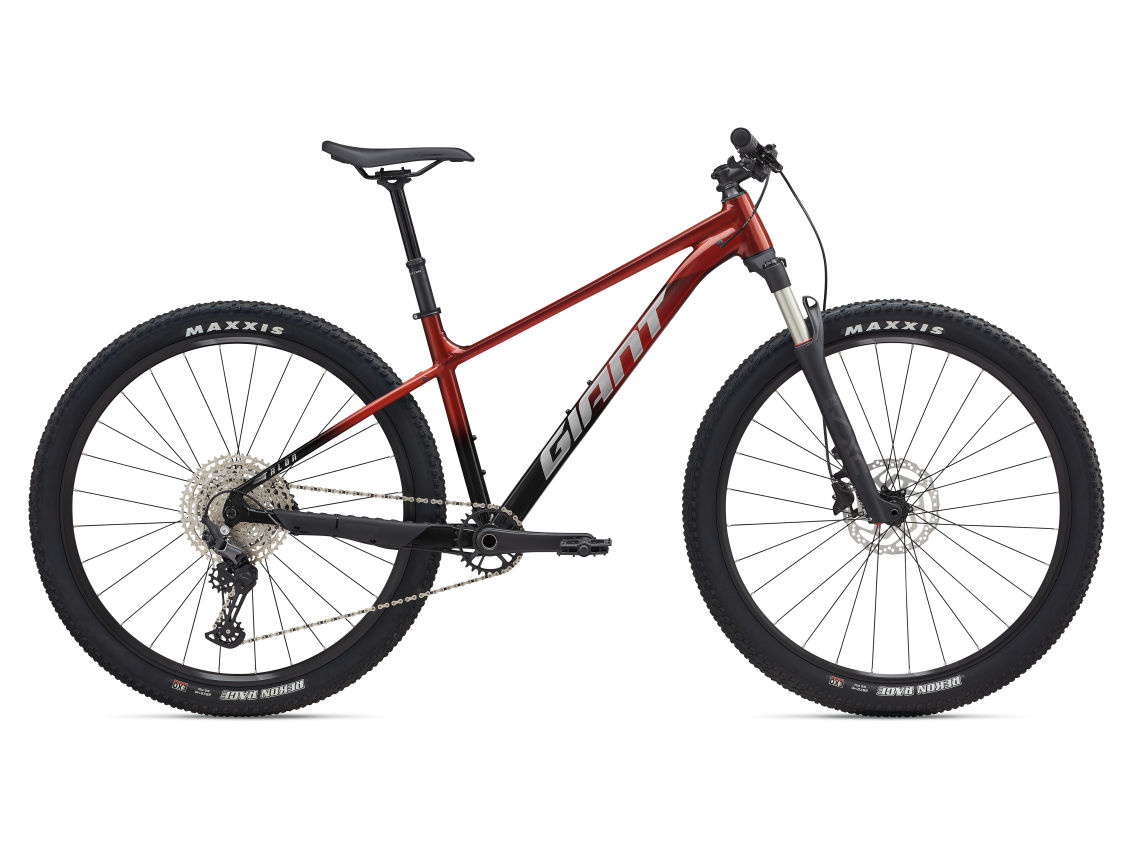

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
KEY PERFORMANCE FACTORS
Modern MTB DesignTapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models |
Off-Road ControlNew geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain. |
Light and DurableAll-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain. |
HIGHLIGHTS
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance.
ALUXX ALUMINUM
Formed from raw material in Giant’s own forging facility, this proprietary alloy is 30 percent stiffer than traditional 6061-series aluminum, while reducing overall weight.
INTERNAL CABLE ROUTING
Derailleur, brake and dropper post cables are routed internally through integrated ports. This helps saves weight and creates a cleaner look and performance.
DROPPER POST COMPATIBLE*
30.9mm seat tube diameter and clean internal cable routing allow for easy dropper seatpost upgrade.
ALIGNED SEATSTAY JUNCTION
The rear triangle is designed with seatstays that join the seat tube at the same point as the top tube, forming a unified connection. This clever alignment helps improve rear end stiffness while reducing overall frame weight, leading to a more efficient, lighter ride.
1X AND 2X COMPATIBLE
Frame is designed to work with either a single chainring or double chainring crankset. For 2x setups, either a side-swing or down-swing front derailleur can be used.
INTEGRATED MOUNTSMounts on the seatstays and chainstays make it easy to accessorize with racks, fenders or a KSA 18 kickstand.
TAPERED HEAD TUBEThe 1.5-inch tapered head tube provides ride stability, especially over rough terrain and tight trail conditions.
Lock in that rock-solid feel with the durable 12x142mm thru-axle, paired with a UDH (Universal Derailleur Hanger) for smooth shifting and added durability.
CHAINSTAY PROTECTIONAn all-new chainstay protector features an integrated design with fixed cable routing, absorbing chain slap to reduce noise and protect your bike’s frame and finish from damage when encountering rough terrain.
FEATURES
 |
||
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
|
|
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
| Sizes | Height |
| XS (27.5") | 5'1" - 5'5" |
| S (27.5") | 5'4" - 5'8" |
| S (29") | 5'4" - 5'8" |
| M (29") | 5'7" - 5'10" |
| L (29") | 5'9" - 6'1" |
| XL (29") | 6'0" - 6'4" |
GEOMETRY
| XS (27.5") | S (27.5") | S (29") | M (29") | L (29") | XL (29") | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (inch) | 13.6 | 14.8 | 15 | 16.5 | 17.7 | 18.9 |
| A1 Seat Post Insertion Depth (inch) | 12 | 13.3 | 13.4 | 7.9 | 9.3 | 11.5 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° | 74.5° | 74.5° |
| C Top Tube Length (inch) | 21.3 | 22.1 | 22.9 | 23.8 | 24.8 | 25.7 |
| D Head Tube Length (inch) | 3.5 | 3.5 | 3.7 | 4.1 | 4.9 | 5.5 |
| E Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° | 67.5° | 67.5° |
| F Fork Rake (inch) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| G Trail (inch) | 4.1 | 4.1 | 4.3 | 4.3 | 4.3 | 4.3 |
| H Wheelbase (inch) | 42.7 | 43.5 | 44.8 | 45.8 | 46.9 | 47.9 |
| I Chain Stay Length (inch) | 17.3 | 17.3 | 17.9 | 17.9 | 17.9 | 17.9 |
| J Bottom Bracket Drop (inch) | 1.8 | 1.8 | 2.2 | 2.2 | 2.2 | 2.2 |
| K Stack (inch) | 21.6 | 21.6 | 23.5 | 23.9 | 24.6 | 25.2 |
| L Reach (inch) | 15.2 | 15.9 | 16.3 | 17.2 | 18 | 18.7 |
| M Stand Over Height (inch) | 26.9 | 26.9 | 28.1 | 27.9 | 27.9 | 28 |
| N Handlebar Width (inch) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Stem Length (inch) | 1.6 | 2 | 2 | 2.4 | 2.8 | 3.1 |
| P Crank Length (inch) | 6.7 | 6.5 | 6.7 | 6.7 | 6.7 | 6.9 |
| Q Wheel Size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
SPECIFICATIONS
| Sizes |
27.5: XS,S, 29: S,M,L,XL,XXL
|
| Colours | Mars Dust/Black/Chrome, Ultra Navy/Chrome |
| Frame | ALUXX-Grade Aluminum, disc |
| Fork | SXC32-2 RCL, air spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29) |
| Shock | N/A |
| Handlebar |
Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
|
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29) |
| Seatpost |
Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)
|
| Saddle |
Giant ErgoContact Trail
|
| Pedals | MTB caged |
| Shifters | Shimano Deore M6100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M6100, clutch |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Brake Levers |
Shimano BL-MT200
|
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X12 |
| Crankset | ProWheel MPX, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29) |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Hubs | [F] Shimano, sealed bearing, 15x110 thru axle, [R] 12x142 thru-axle |
| Spokes | stainless, 14g |
| Tires |
Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
|
| Extras | 2.4" max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
