| Article number: | 1101010125-BLKD-M-27.5 |
| Availability: | In stock |
DESCRIPTION
Get on the dirt and ride your way to your first singletrack. Tempt is that friend that opens a whole new world to you.
KEY PERFORMANCE FACTORS
Confidence InspiringPerfect as your first mountain bike, the ALUXX-grade aluminum frame is lightweight, capable, and durable. |
|
VersatileTempt’s performance-minded yet comfortable geometry gives it the versatility for both commutes around campus and off-road rides. |
|

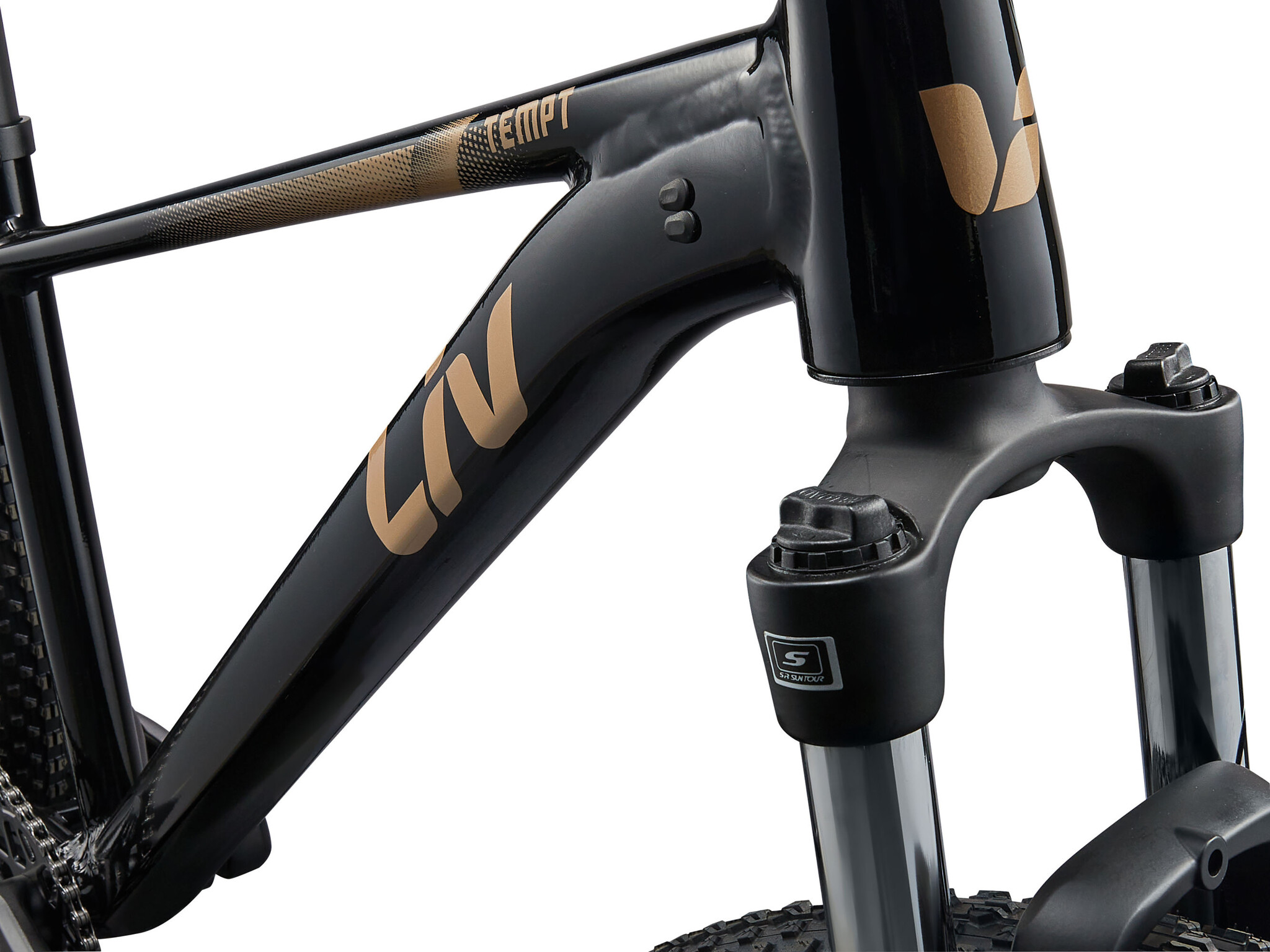

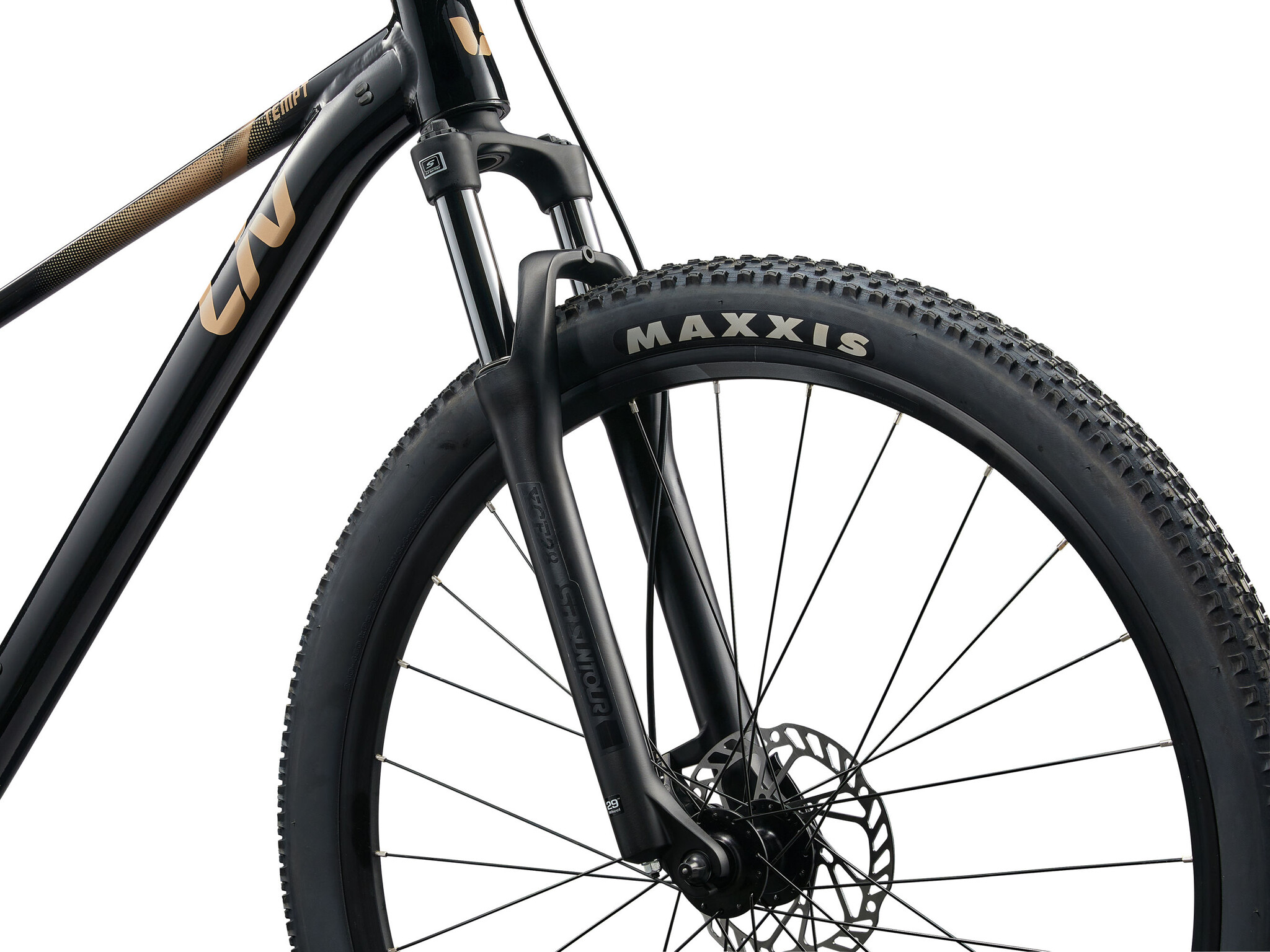

XC ControlA suspension fork offers control, comfort, and stability over bumpy terrain. Depending on frame size, the fork comes with 80mm or 100mm of travel. |
FEATURES
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
SPECIFICATIONS
| Sizes | 27.5": XS,S,M , 29": S,M,L |

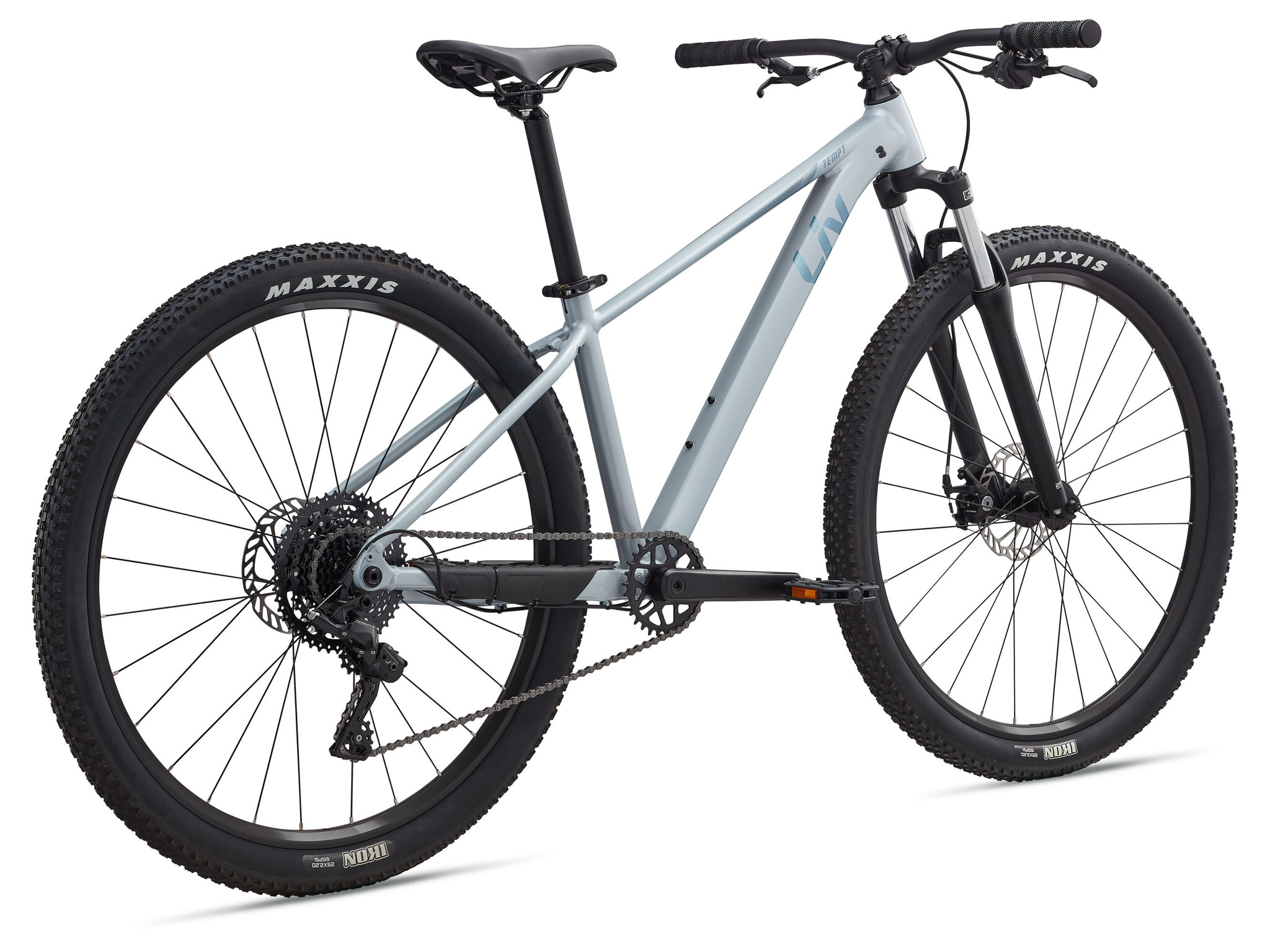

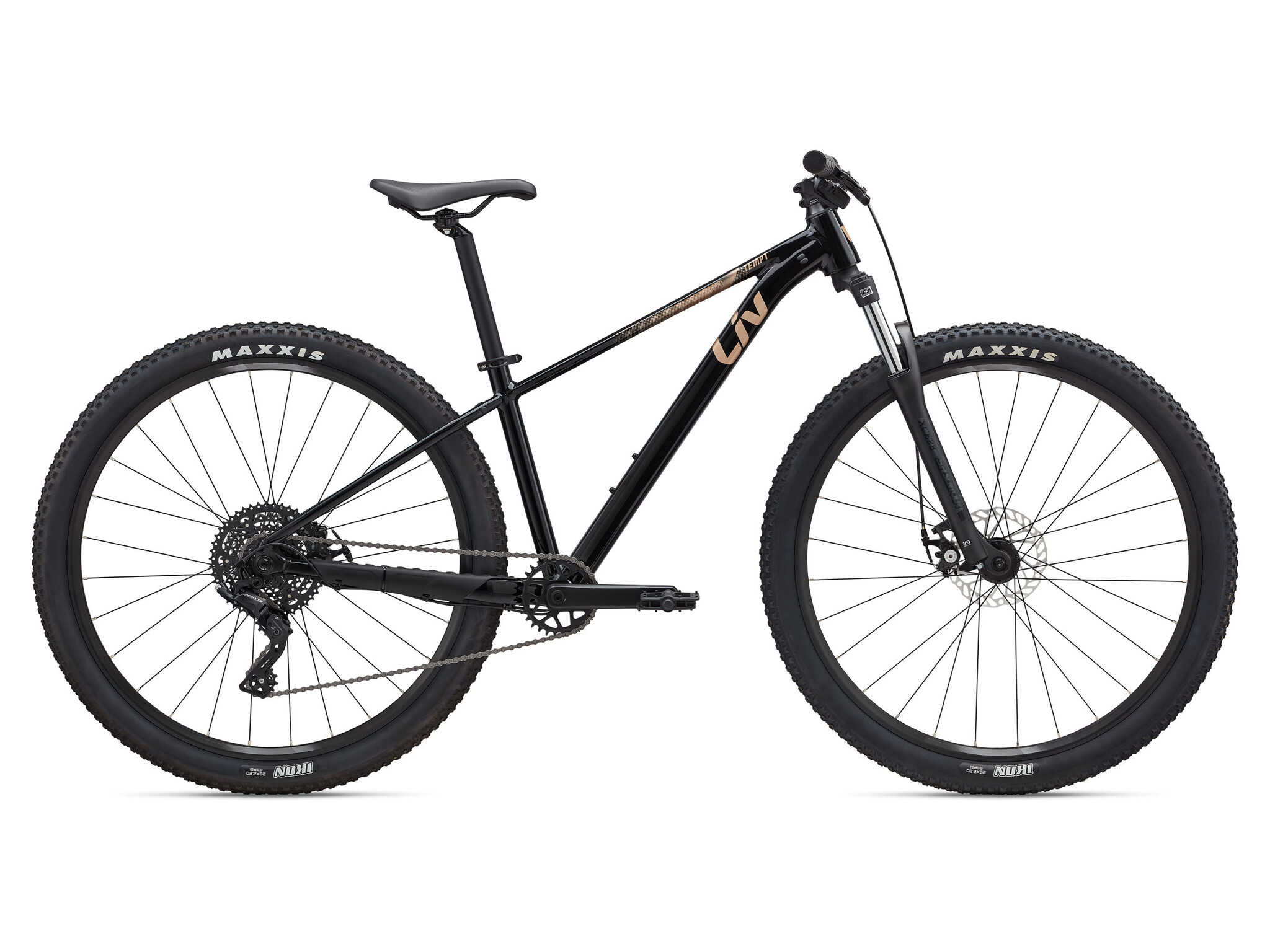

| Colours | Black Diamond, Silver |
| Frame | ALUXX-grade aluminum, disc |
| Fork | SR Suntour XCE, QR, steel steerer 27.5" XS: 80mm, S: 100mm, M: 100mm 29" S: 100mm, M: 100mm, L: 100mm |
| Shock | N/A |

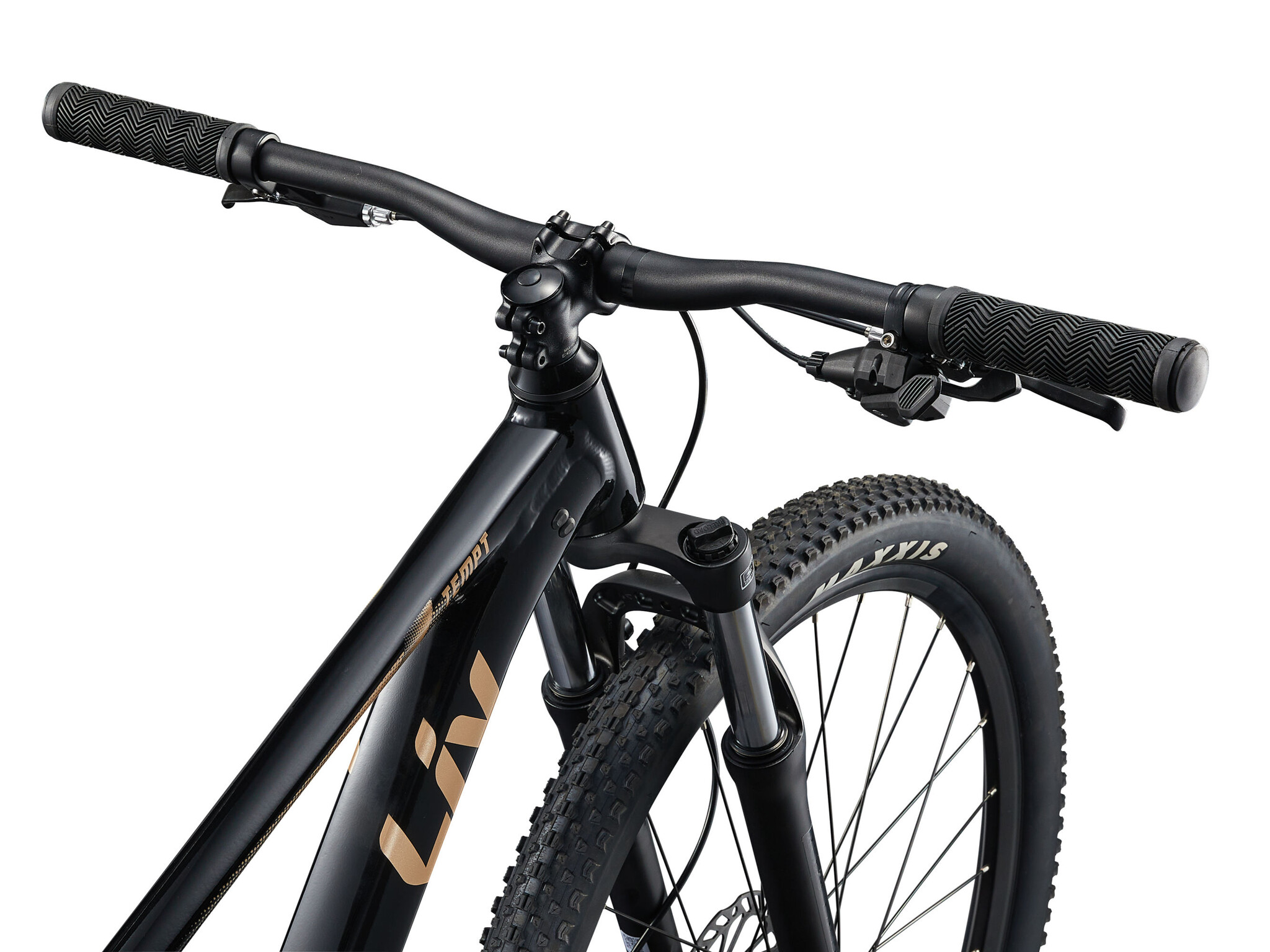

| Handlebar | Giant Connect Trail, 31.8mm 27.5" XS: 670mm, S: 670mm, M: 750mm 29" S: 670mm, M: 750mm, L: 750mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree 27.5" XS: 40mm, S: 40mm, M: 50mm 29" S: 40mm, M: 50mm, L: 50 |
| Seatpost | Giant Sport, 30.9mm 27.5" XS: 300mm, S: 300mm, M: 375mm 29" S: 375mm, M: 375mm, L: 375mm |

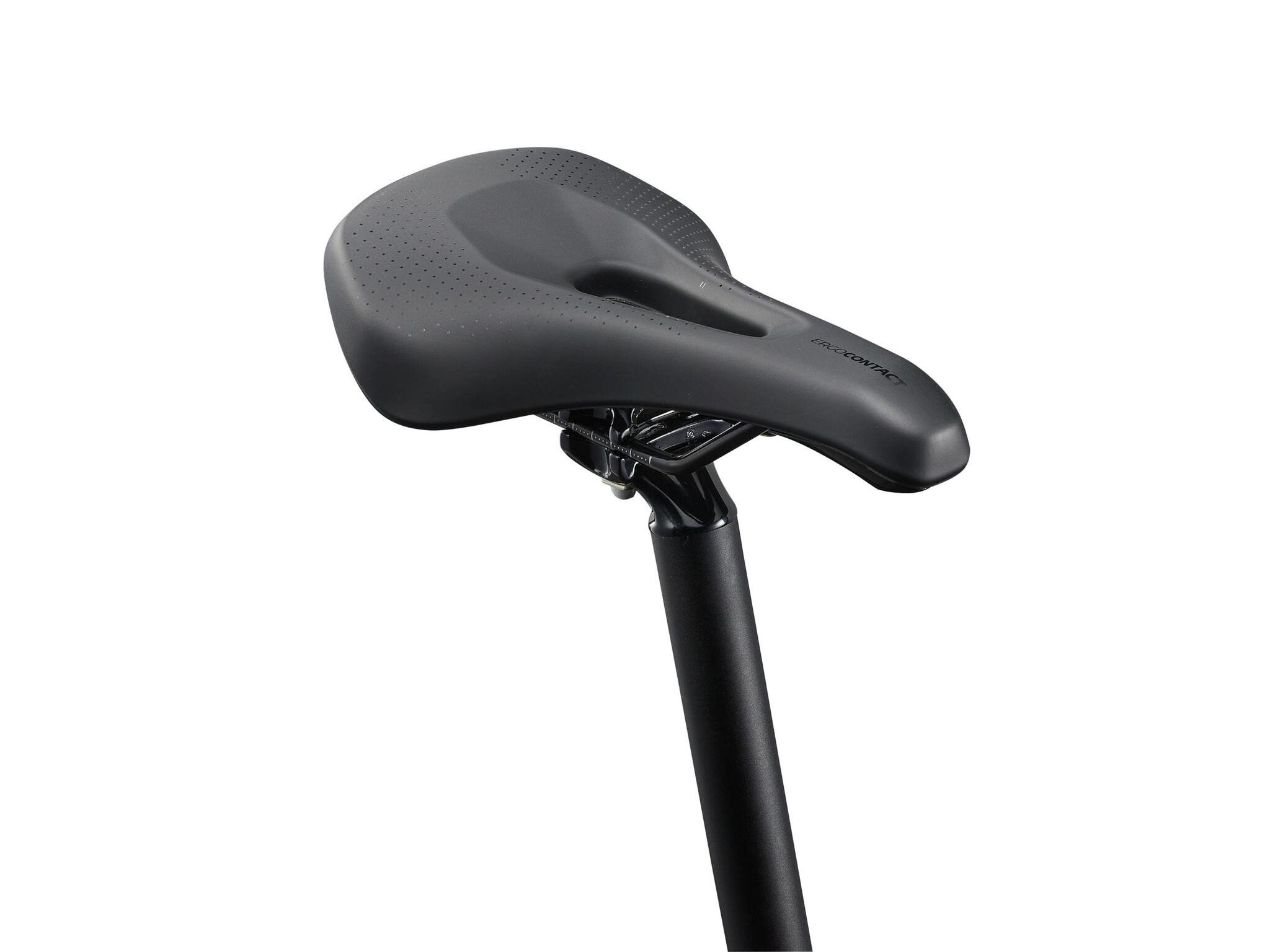

| Saddle | Liv Sport |
| Pedals | MTB caged |
| Shifters | Shimano SL-M315, 2x7 |
| Front Derailleur | Shimano FD-M315 |

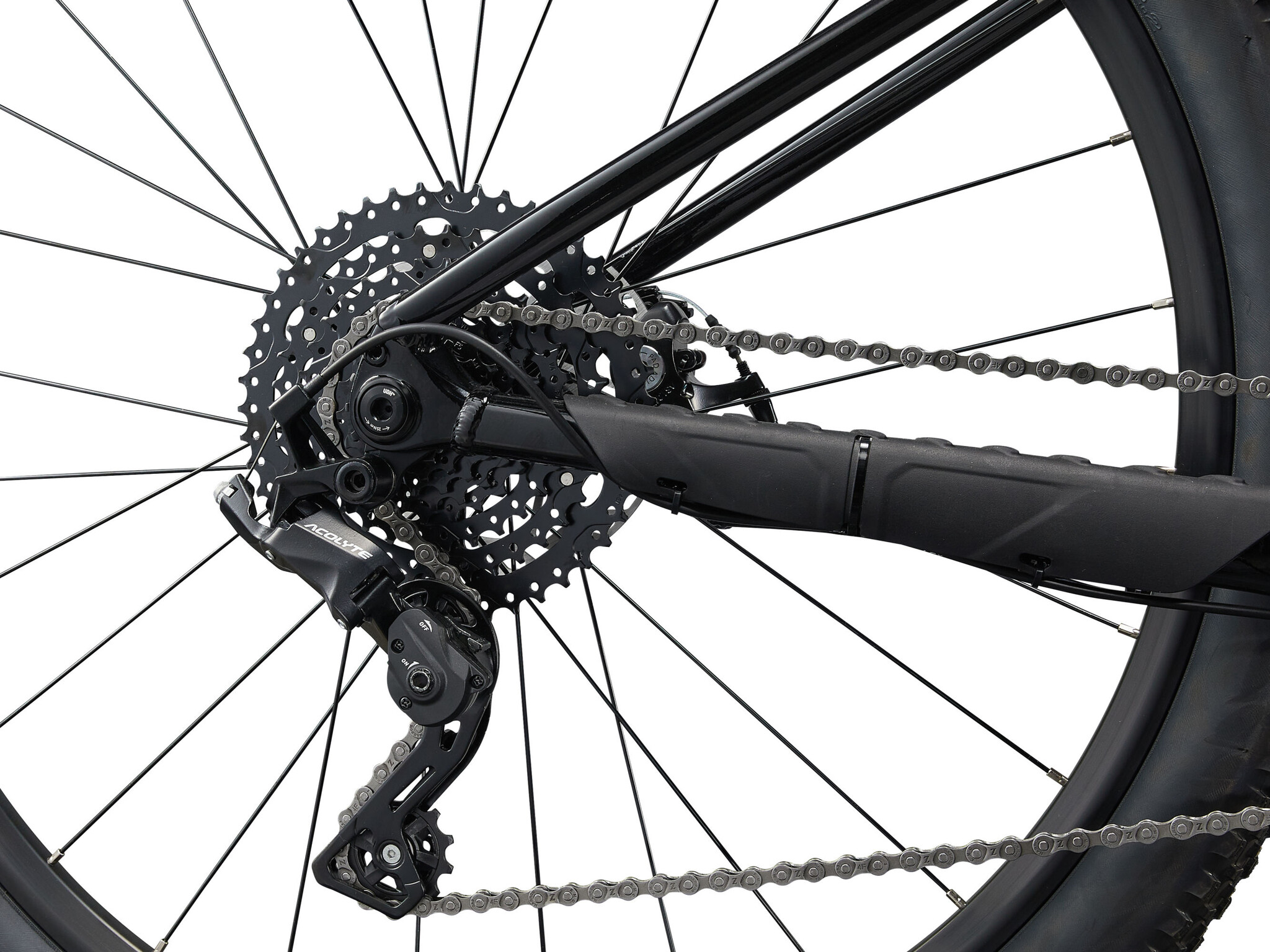

| Rear Derailleur | Shimano Tourney |

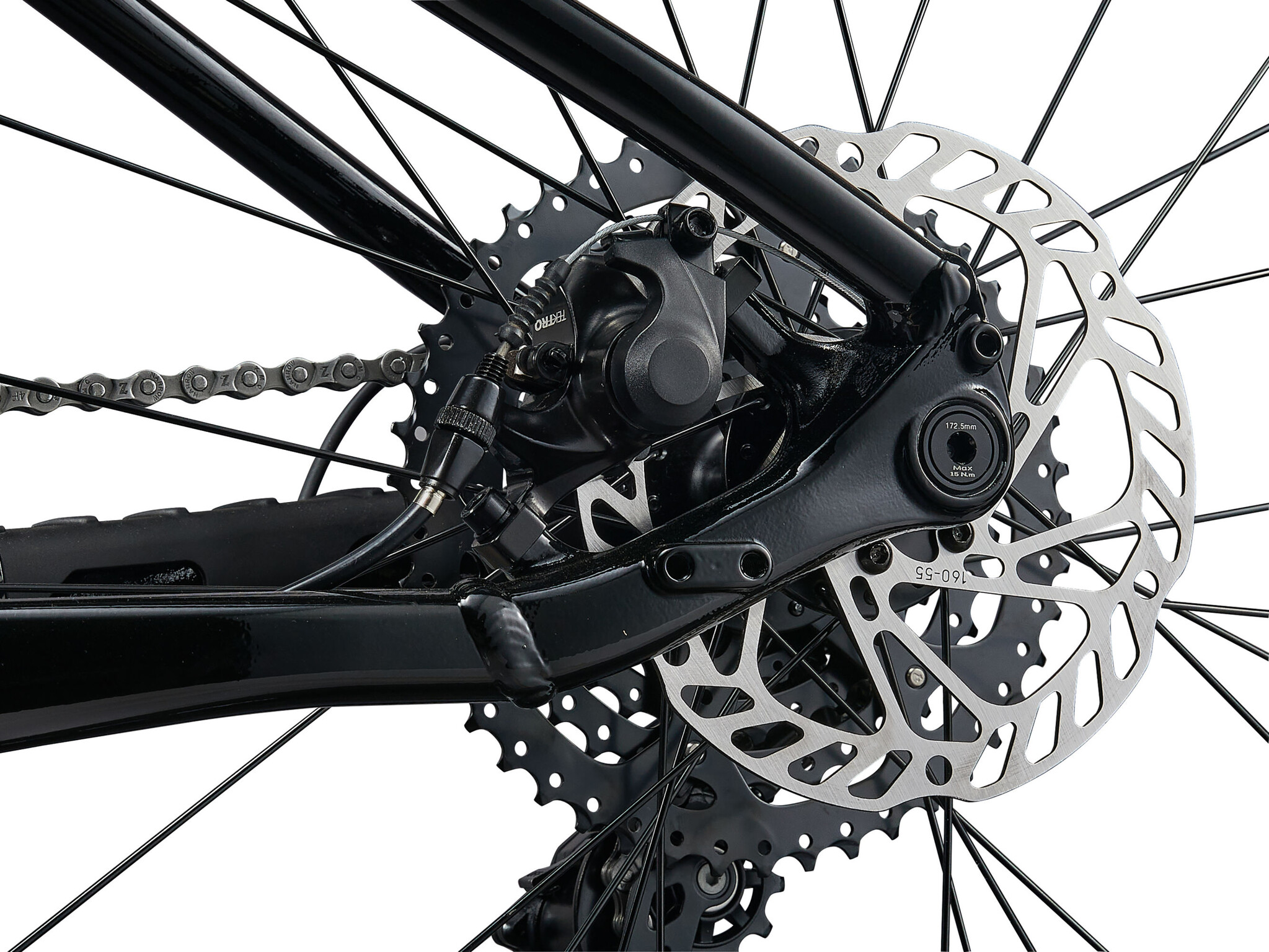

| Brakes | TKB-172, mechanical [F]160mm, [R]160mm rotors |
| Brake Levers | RS360A, mechanical |
| Cassette | Shimano HG200-7, 12-32 |
| Chain | KMC Z7 |

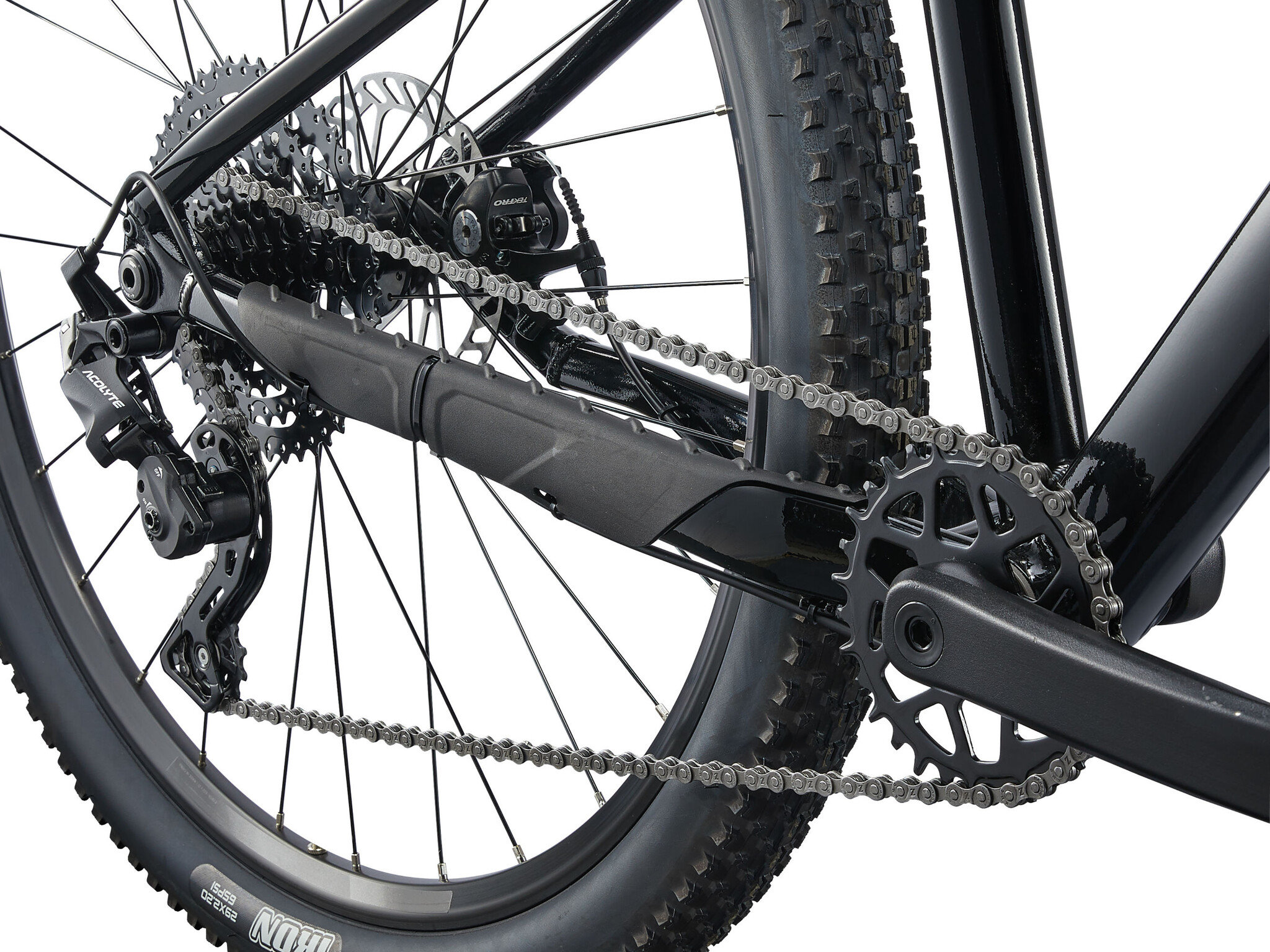

| Crankset | ProWheel Forged, 22/36, chain guard 27.5" XS: 165mm, S: 165mm, M: 170mm 29" S: 170mm, M: 170mm, L: 175mm |
| Bottom Bracket | cartridge |
| Rims | 27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width |
| Hubs | alloy, sealed bearing |
| Spokes | stainless, 14g |
| Tires | 27.5": Kenda Booster 27.5x2.4, wire bead 29": Kenda Booster 29x2.4, wire bead |
| Extras | 2.4" max tire size, max chainring 32T |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
SIZE GUIDE
| Size | Height |
| XS (27.5") | 4'11" - 5'4" |
| S (27.5") | 5'2" - 5"7" |
| S (29") | 5'2" - 5'7" |
| M (27.5") | 5'5" - 5'9" |
| M (29") | 5'5" - 5'9" |
GEOMETRY
| XS (27.5") | S(27.5") | S (29") | M (27.5") | M (29") | ||
| A | Seat Tube Length (inch) | 12.8 | 14.4 | 14.6 | 15.9 | 16.5 |
| A1 | Seat Post Insertion Depth (inch) | 11.2 | 12.6 | 12.6 | 14.2 | 14.8 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (inch) | 21.3 | 22.5 | 22.4 | 23.4 | 23.2 |
| D | Head Tube Length (inch) | 3.7 | 3.9 | 3.5 | 4.3 | 3.7 |
| E | Head Tube Angle | 68.0° | 68.0° | 68.5° | 68.0° | 68.5° |
| F | Fork Rake (inch) | 1.6 | 1.7 | 2 | 1.7 | 2 |
| G | Trail (inch) | 4 | 3.9 | 3.7 | 3.9 | 3.7 |
| H | Wheelbase (inch) | 42.2 | 43.5 | 44.1 | 44.4 | 44.8 |
| I | Chain Stay Length (inch) | 17.3 | 17.3 | 17.9 | 17.3 | 17.9 |
| J | Bottom Bracket Drop (inch) | 1.6 | 1.8 | 2.2 | 1.8 | 2.2 |
| K | Stack (inch) | 21.8 | 22.8 | 23.5 | 23.1 | 23.7 |
| L | Reach (inch) | 15.1 | 15.9 | 15.7 | 16.7 | 16.5 |
| M | Stand Over Height (inch) | 26.1 | 27 | 27.8 | 27.9 | 29 |
| N | Handlebar Width (inch) | 28.7 | 29.5 | 29.5 | 29.5 | 29.5 |
| O | Stem Length (inch) | 1.6 | 1.6 | 1.6 | 2 | 2 |
| P | Crank Length (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | Wheel Size | 27.5" | 27.5" | 29" | 27.5" | 29" |
