| Article number: | 58-26244-458-4-891-131501 |
| Availability: | In stock |
DESCRIPTION

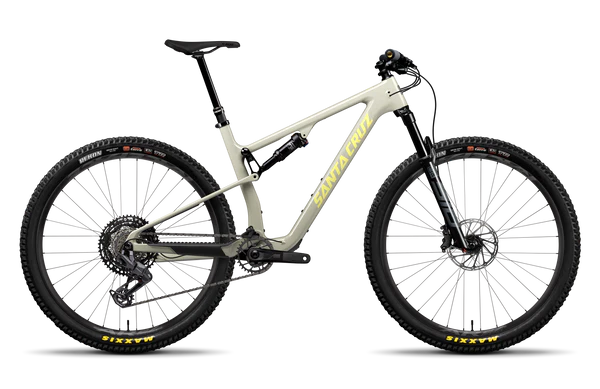

Santa Cruz has tapped into everything they’ve learned from years of making the highest quality carbon full-suspension bikes and added the super-efficient Superlight™ suspension to make a World Cup-winning XC race bike. The Blur isn’t guaranteed to make you a race winner but being the lightest, full-suspension carbon XC bike we’ve ever made, it might be the difference between claiming first place...or just crossing the line.
| Material |
Front (MM) |
Rear (MM) | Wheel Size | Weight (lbs) | Weight (kg) |
| C | 120 | 115 | 29" | 29.75 | 13.5 |
FEATURES
- RockShox Sid Base Fork
- FOX Rhythm Shock
- SRAM 70 Eagle T-Type Drivetrain
FRAME SIZING
| Small | 5'1" - 5'5" | |
| Reach: 425mm | ||
| Medium | 5'5" - 5'9" | |
| Reach: 450mm | ||
| Large | 5'9" - 6'1" | |
| Reach: 470mm | ||
| X-Large | 6'0" - 6'4" | |
| Reach: 495mm |
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
- Personal Preference
- A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
- Body Dimension
- Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 412 | 438 | 458 | 483 |
| Stack | 587 | 597 | 607 | 621 |
| Head tube angle | 67.1 | 67.1 | 67.1 | 67.1 |
| Head Tube Length | 90 | 100 | 110 | 125 |
| Seat Tube Angle | 75.1 | 75.0 | 74.9 | 74.8 |
| Seat Tube Length | 405 | 430 | 470 | 520 |
| Rear Center | 431 | 433 | 436 | 438 |
| Front Center | 695 | 724 | 747 | 778 |
| BB Height | 340 | 340 | 340 | 339 |
| BB Drop | 33 | 33 | 33 | 33 |
| Wheelbase | 1126 | 1157 | 1183 | 1216 |
| Top Tube Length | 568 | 597 | 621 | 652 |
| Standover Height | 744 | 746 | 745 | 750 |
SPECIFICATIONS
Frame |
Frame |
Carbon C 29" 115mm Travel Superlight™ |
Wheels |
Front Rim |
RaceFace AR Offset 27 29" |
|
Weight |
29.75lbs / 13.5kg |
Front Hub |
SRAM MTH 716, 15x110, 6-Bolt, 32h |
||
|
Wheel Size |
29" |
Front Tire |
Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO |
||
|
Rear Rim |
RaceFace AR Offset 27 29" | ||||
Suspension |
Fork |
RockShox Sid Base, 120mm, w/ 3-Position Lever |
Rear Hub |
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h | |
|
Shock |
FOX Rhythm, 190x45 |
Rear Tire |
Maxxis Minion DHRII, 27.5"x2.5", DoubleDown | ||
|
|
|
||||
Drivetrain |
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB | |||
|
Cassette |
SRAM XS 1270 Eagle T-Type, 10-52t | ||||
|
Chain |
SRAM 70 Eagle T-Type, Flattop, 12spd |
Specs |
Bottom Bracket Shell | 73mm Threaded | |
|
Chainguide |
OneUp Chainguide |
Rear Brake Mount | 160 PM | ||
|
Crankset |
E13 Helix eSpec, 160mm |
Shock Length |
190mm | ||
|
Rear Derailleur |
SRAM 70 Eagle T-Type, 12spd |
Fork Compatibility |
100-120mm | ||
|
Right Shifter |
SRAM 90 Eagle T-Type, 12spd |
Fork Offset |
44mm | ||
|
|
Front Derailleur Mount |
No Compatibility | |||
Brakes |
Brakes |
SRAM DB8 |
Headset |
Integrated (IS41/52) | |
|
Front Rotor |
SRAM Centerline, 180mm |
Max Chainring Size |
36t |
||
|
Rear Rotor |
SRAM Centerline, 180mm |
Max Tire Clearance |
2.4" *May vary according to tire and rim model |
||
|
|
Seat Clamp Diameter | 36.4mm | |||
Cockpit |
Grips / Bar Tape |
ESI Chunky Grips | Seat Post Diameter | 31.6mm | |
|
Handlebars |
RaceFace Ride, 10mm Rise, 35x760mm | Shock Bushing Size Front |
20x8 |
||
|
Headset |
Cane Creek 10 IS Integrated Headset | Shock Bushing Size Rear | 20x8 | ||
|
Saddle |
SDG Bel-Air V3, Steel |
Shock Stroke |
42.5mm (XC) | 45mm (TR) | ||
|
Seatpost |
SDG Tellis Dropper, 31.6 |
Suspension System |
Superlight™ | ||
|
Stem |
RaceFace Ride, 60mm | Water Bottle Mounts | 2 inside main triangle | 1 under downtube |
