Article number: | 2201113124 |
Availability: | In stock |
DESCRIPTION

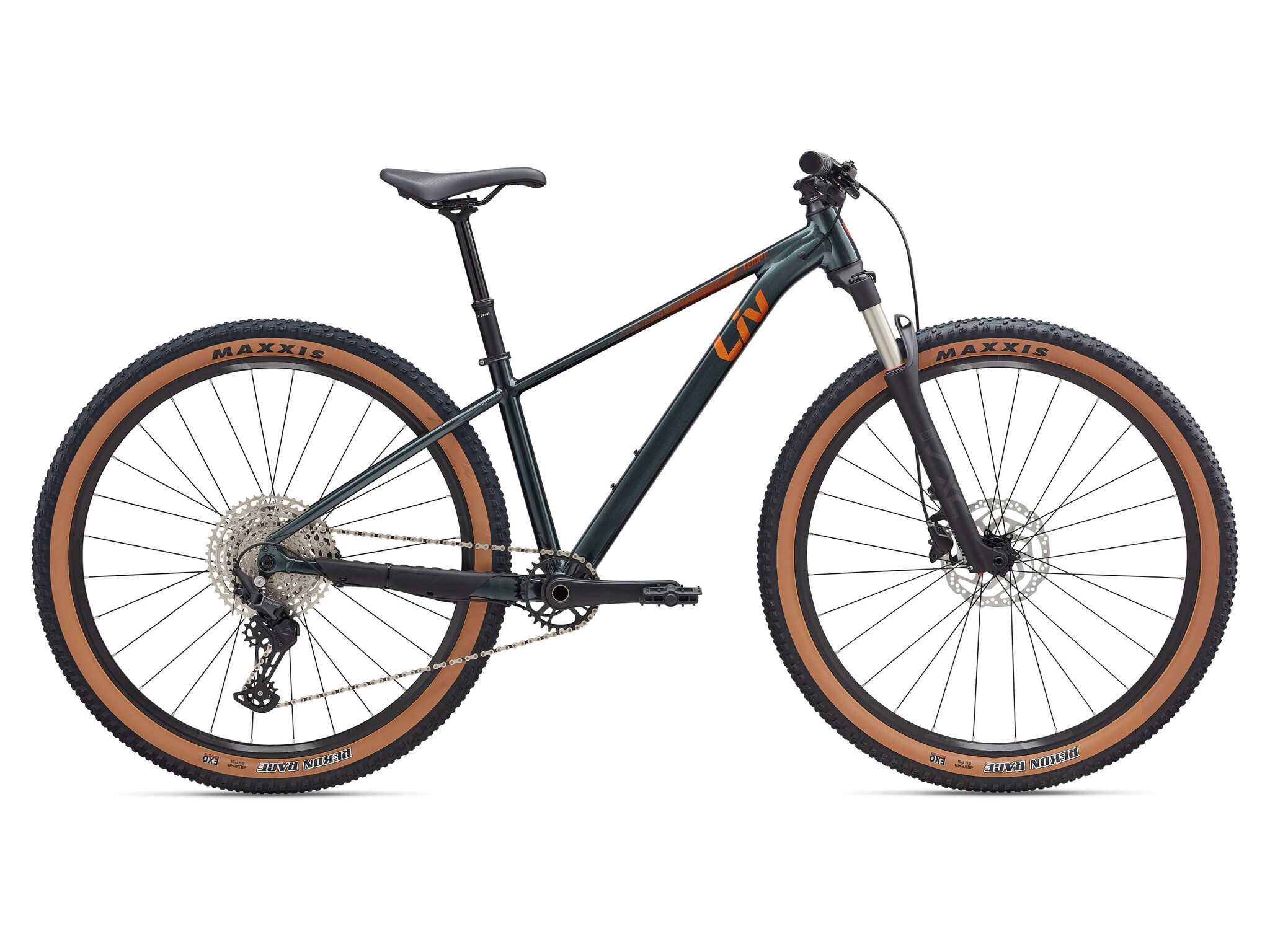

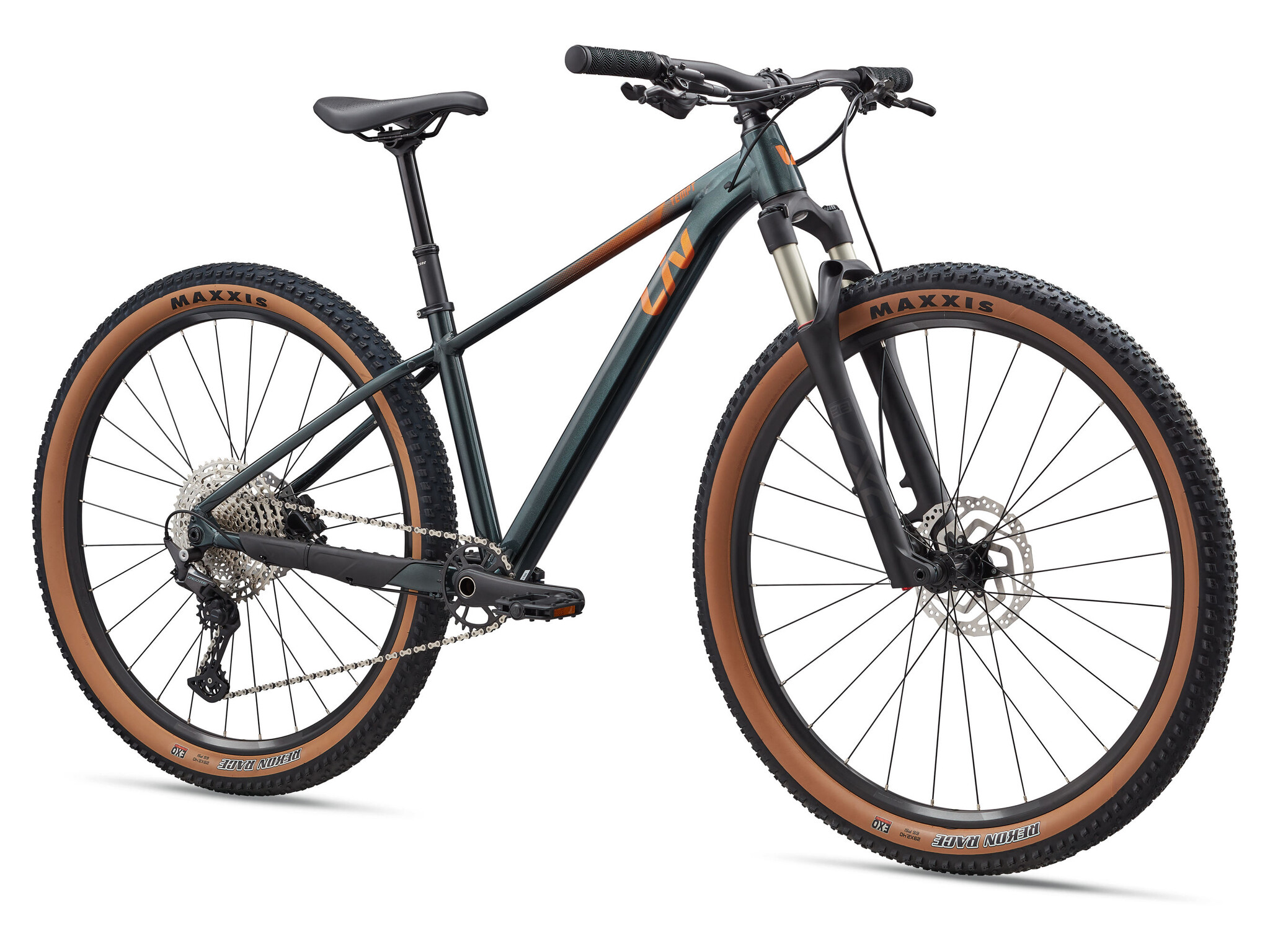

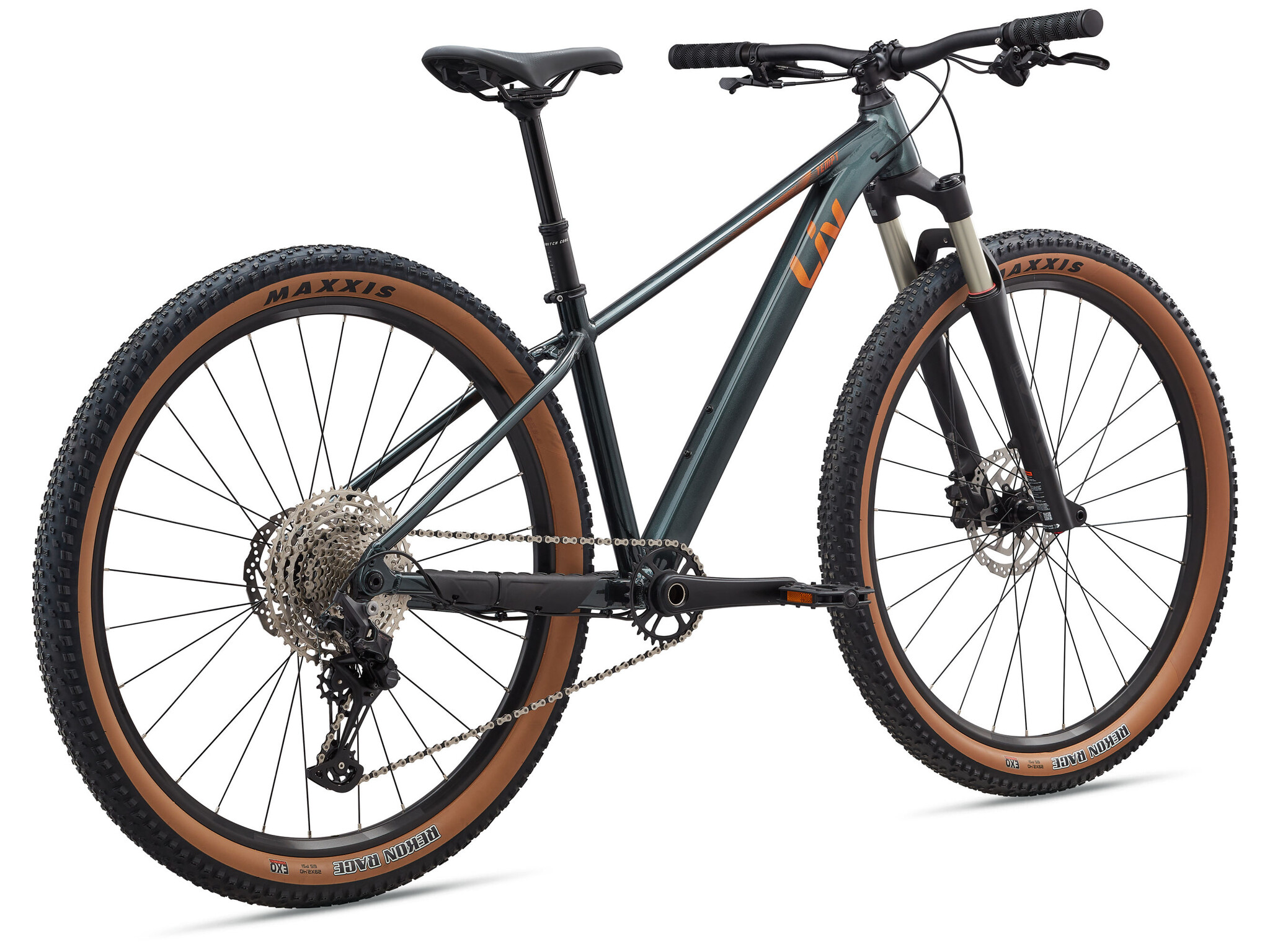

Get on the dirt and ride your way to your first singletrack. Tempt is that friend that opens a whole new world to you.
KEY PERFORMANCE FACTORS
Confidence InspiringPerfect as your first mountain bike, the ALUXX-Grade Aluminum frame is lightweight, capable and durable. |
VersatileTempt’s performance-minded yet comfortable geometry gives it the versatility for both commutes around campus and off-road rides. |
XC ControlA suspension fork offers control, comfort and stability over bumpy terrain. Depending on frame size, the fork comes with 80mm or 100mm of travel. |
HIGHLIGHTS

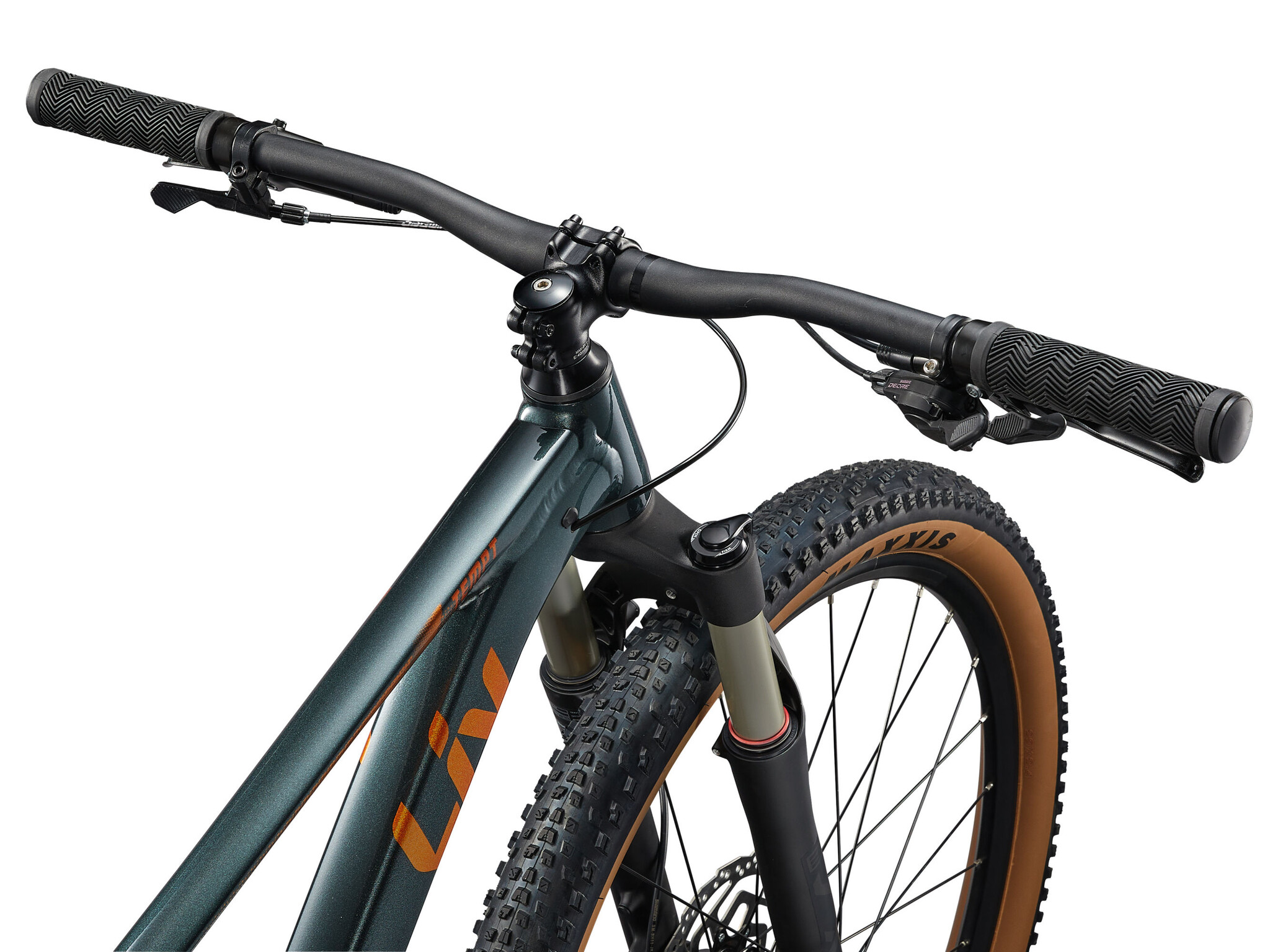

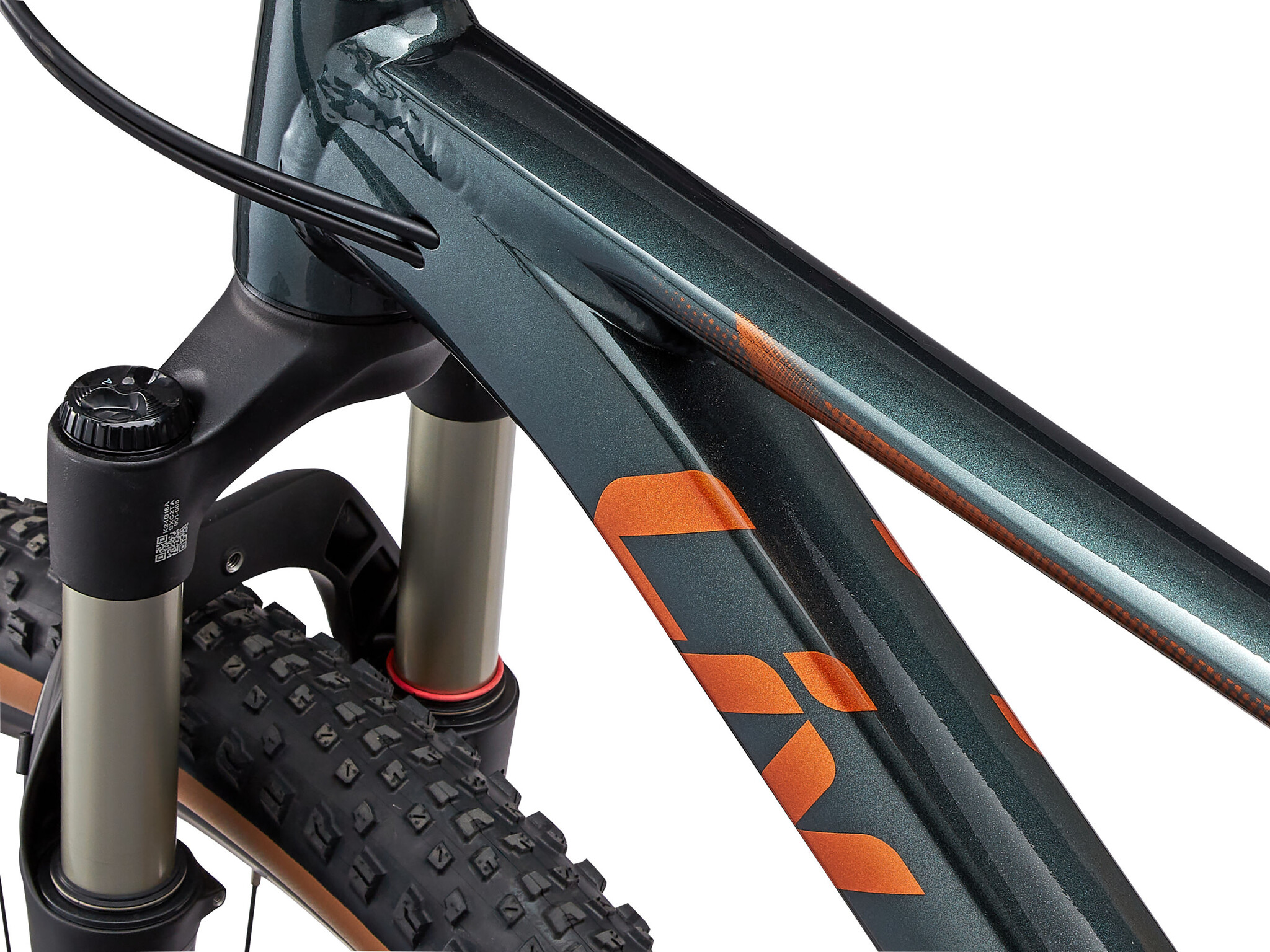

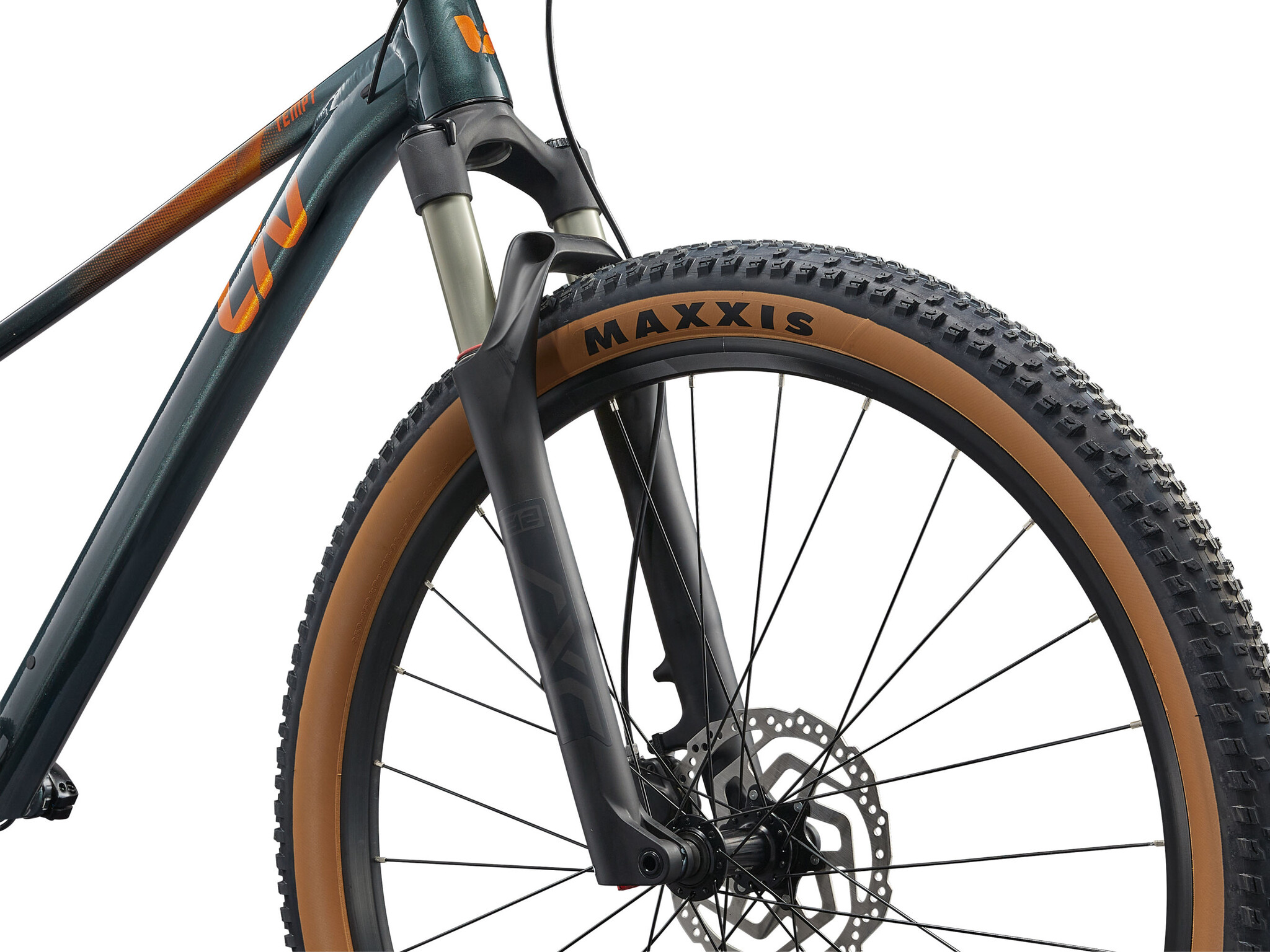

Front Suspension
80mm (XS) or 100mm (S-L) with hydraulic lockout and preload adjustment
Disc Brake Equipped
Powerful disc brakes for confidence and control
2.4-Inch Tire Clearance
Enough room to run up to 2.4-inch wide tires, for added traction
Low Standover Height
For confidence while maneuvering the bike on dirt trails

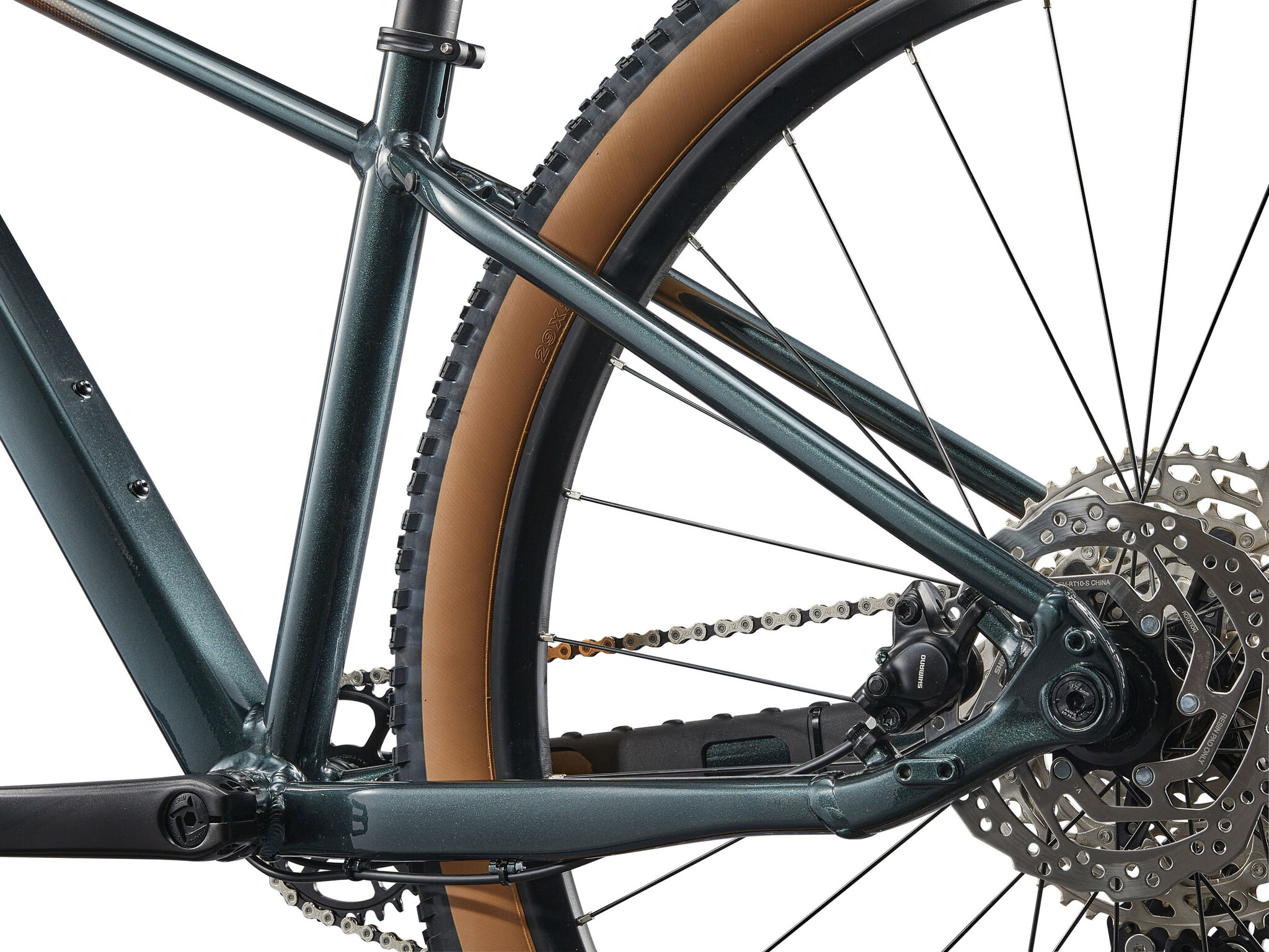

Internal Cable Routing
Derailleur and rear brake cables are routed internally for a weight-saving, clean look with better performance

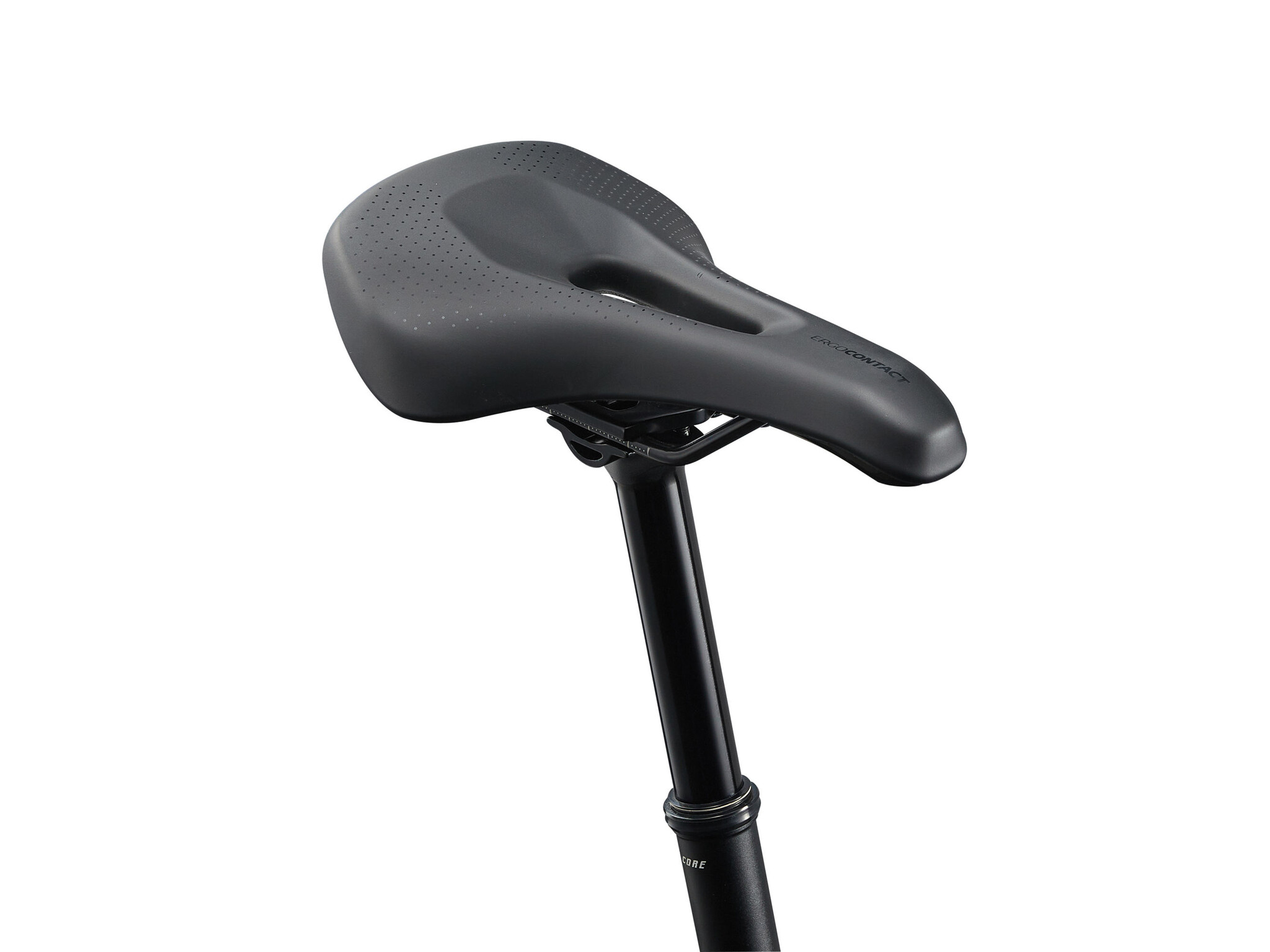

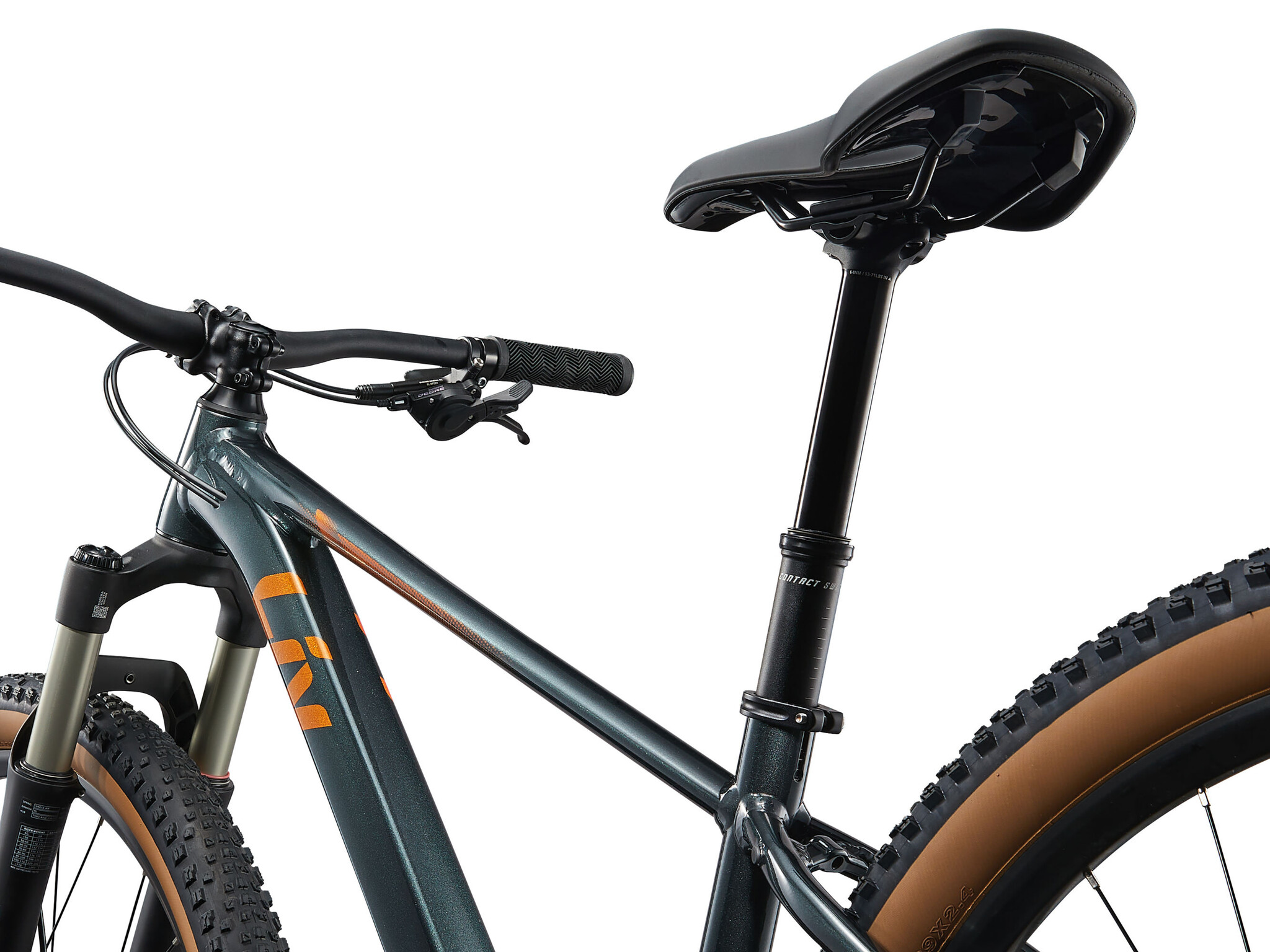

Dropper Seatpost Compatible
30.9mm seattube diameter and clean internal cable routing allows for easy dropper seatpost upgrade

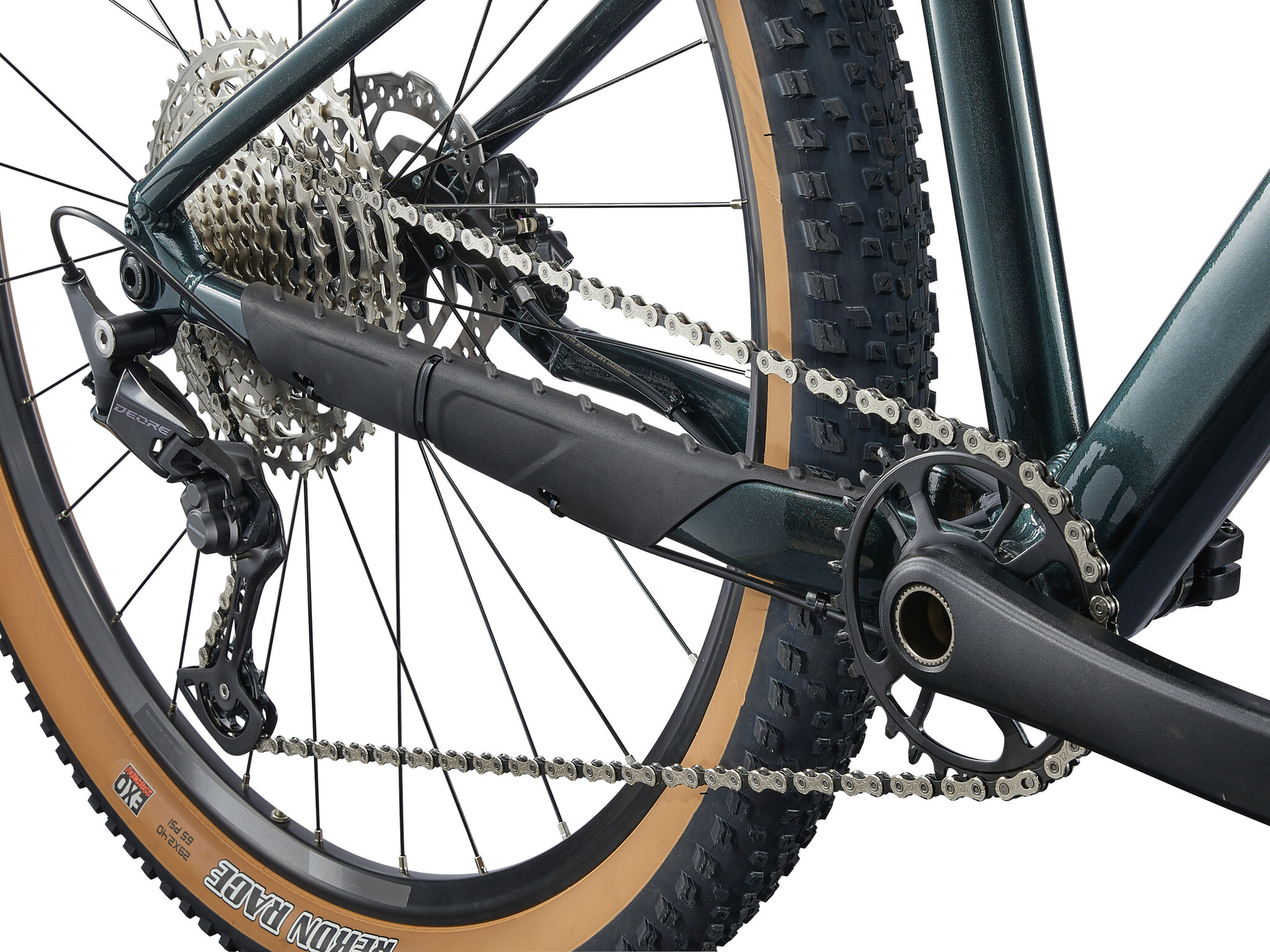

1x or 2x Compatible
Frameset is designed to work with either a single or double chainring crankset. For 2x setups, either a side-swing or down-swing front derailleur can be used
Integrated Mounts
Mounts on the seatstays and chain-stays make it easy to accessorize with racks, fenders or a rear kickstand
FEATURES
![]() |
ALUXX Aluminum TechnologyThis Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles. |
SIZE GUIDE
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
Sizes | Height |
XS (27.5") | 4'11" - 5'4" |
S (27.5") | 5'2" - 5'7" |
S (29") | 5'2" - 5'7" |
M (27.5") | 5'5" - 5'9' |
M (29") | 5'5" - 5'9" |
L (29") | 5'7" - 5'11" |
GEOMETRY
XS (27.5") |
S (27.5") |
S (29") |
M (27.5") |
M (29") |
L (29") |
||
A | Seat Tube Length (inch) | 12.8 | 14.4 | 14.6 | 15.9 | 16.5 | 17.7 |
B | Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
C | Top Tube Length (inch) | 21.3 | 22.5 | 22.4 | 23.4 | 23.2 | 24 |
D | Head Tube Length (inch) | 3.7 | 3.9 | 3.5 | 4.3 | 3.7 | 4.1 |
E | Head Tube Angle | 68.0° | 68.0° | 68.5° | 68.0° | 68.5° | 68.5° |
F | Fork Rake (inch) | 1.6 | 1.7 | 2 | 1.7 | 2 | 2 |
G | Trail (inch) | 4 | 3.9 | 3.7 | 3.9 | 3.7 | 3.7 |
H | Wheelbase (inch) | 42.2 | 43.5 | 44.1 | 44.4 | 44.8 | 45.7 |
I | Chain Stay Length (inch) | 17.3 | 17.3 | 17.9 | 17.3 | 17.9 | 17.9 |
J | Bottom Bracket Drop (inch) | 1.6 | 1.8 | 2.2 | 1.8 | 2.2 | 2.2 |
K | Stack (inch) | 21.8 | 22.8 | 23.5 | 23.1 | 23.7 | 24 |
L | Reach (inch) | 15.1 | 15.9 | 15.7 | 16.7 | 16.5 | 17.1 |
M | Stand Over Height (inch) | 26.1 | 27 | 27.8 | 27.9 | 29 | 29.8 |
N | Handlebar Width (inch) | 28.7 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
O | Stem Length (inch) | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 |
P | Crank Length (inch) | 6.5 | 6.5 | 6.7 | 6.7 | 6.7 | 6.9 |
Q | Wheel Size | 27.5" | 27.5" | 29" | 27.5" | 29" | 29" |
SPECIFICATIONS
Sizes | 27.5": XS,S, 29": S,M,L |
Colours | Metal |
Frame | ALUXX-Grade Aluminum, disc |
Fork | SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 100mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (29) |
Shock | N/A |
Handlebar | Giant Connect Trail, 31.8mm XS: 670mm (27.5) S: 670mm (27.5) / 670mm (29) M: 750mm (27.5) / 750mm travel (29) L: 750mm (29) |
Grips | Giant Sole-O |
Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (27.5) / 50mm travel (29) L: 50mm (29) |
Seatpost | Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (29) |
Saddle | Liv Sport |
Pedals | MTB caged |
Shifters | Shimano Deore M6100, 1x12 |
Front Derailleur | N/A |
Rear Derailleur | Shimano Deore M6100 |
Brakes | Shimano Deore BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm **some bikes may be substituted: Tektro TKD143, hydraulic [F] 180mm, [R]160mm |
Brake Levers | Shimano BL-MT200 **some bikes may be substituted: Tektro TKD143 |
Cassette | Shimano Deore M6100, 10x51 |
Chain | KMC X12 |
Crankset | MPX-CR094S alloy, 30t XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (27.5) / 170mm travel (29) L: 175mm (29) |
Bottom Bracket | cartridge |
Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
Hubs | Shimano, sealed bearing |
Spokes | stainless, 14g |
Tires | Kenda Booster 27.5 or 29x2.4", wire bead |
Extras | 2.4" max tire size |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
