| Article number: | 58-26311-452-4-902-132801 |
| Availability: | In stock |
DESCRIPTION

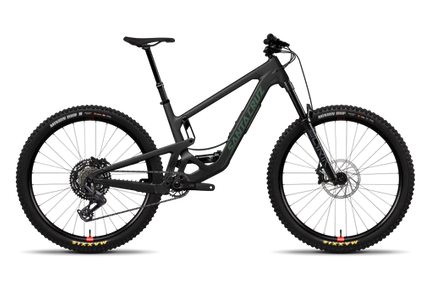

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
| Carbon | Front (MM) | Rear (MM) | Wheel Size | Weight (lbs) | Weight (kg) |
| C | 160 | 150 | 29" | 34.71 | 15.74 |
FEATURES
- RockShox Lyrik Base Fork
- FOX Float Rhythm Shock
- SRAM 70 Eagle T-Type Drivetrain
STANDOUT FEATURES
![]() |
![]() |
![]() |

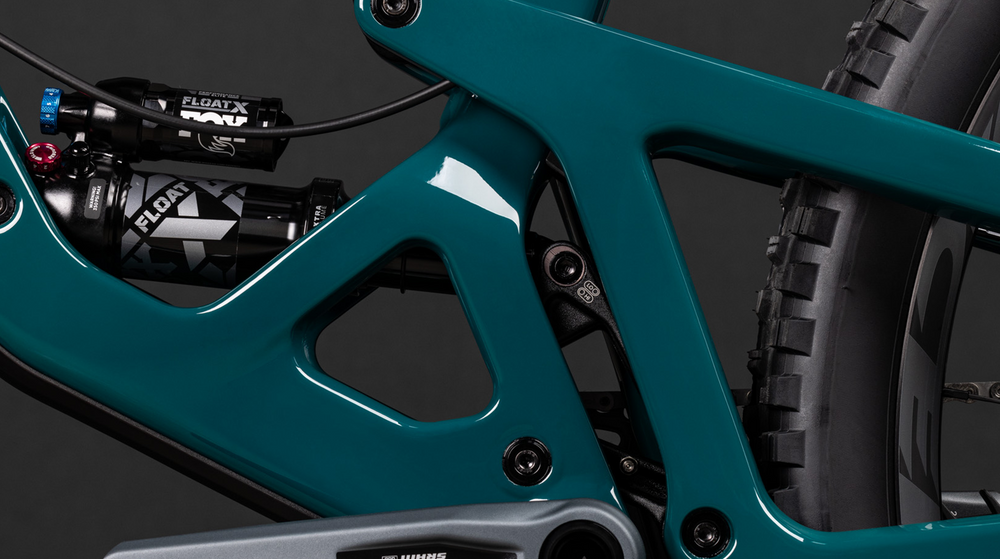

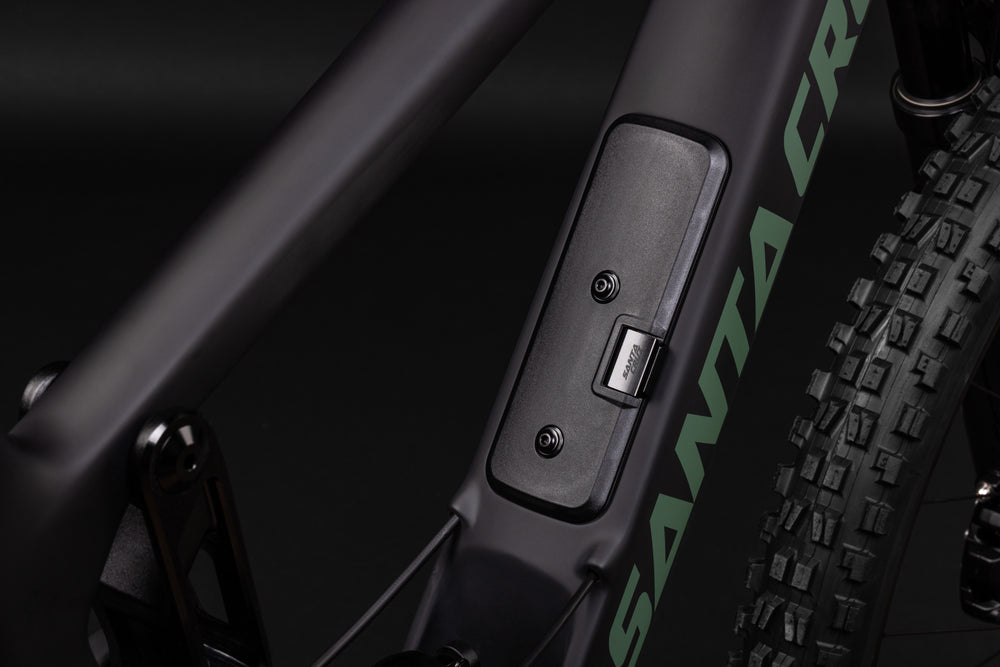

| Glovebox | Flip Chip | SRAM T-Type 70 |
![]() |
![]() |
|

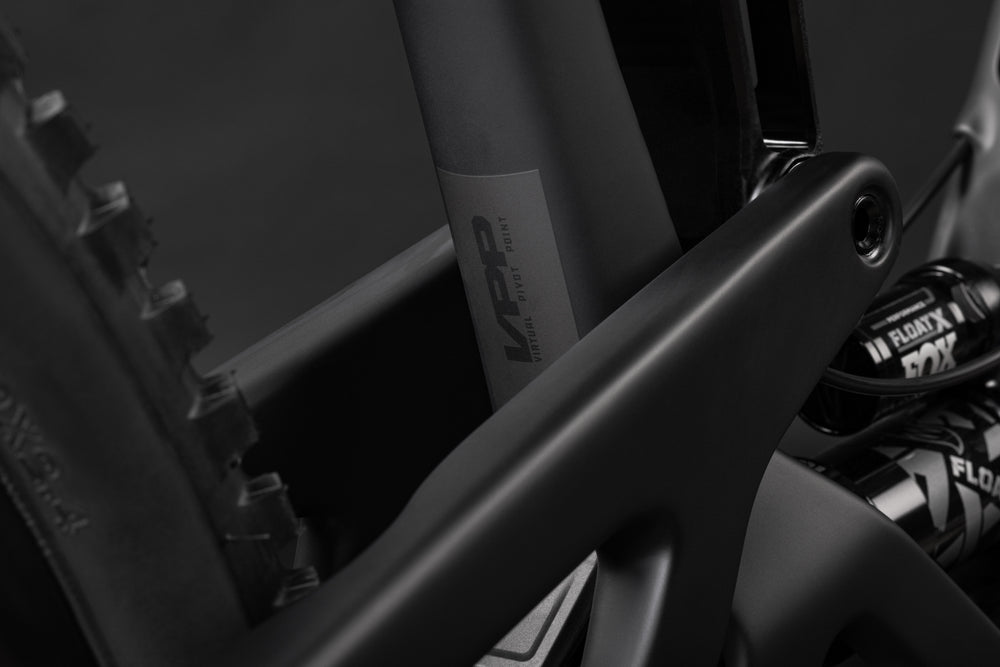

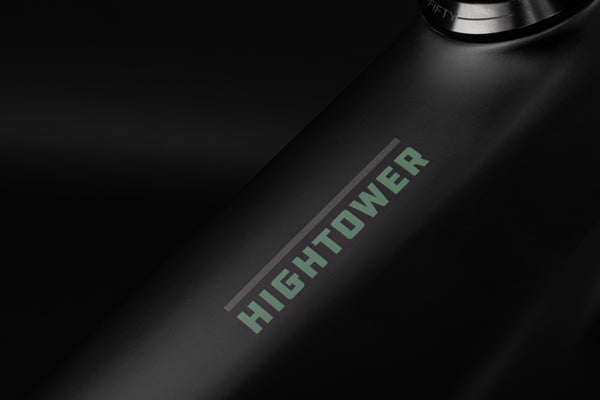

| C Carbon Frame | VPP™ Suspension |
FRAME SIZING
| Small | 5'1" - 5'5" | |
| Reach: 435mm | ||
| Medium | 5'5" - 5'9" | |
| Reach: 460mm | ||
| Large | 5'9" - 6'1" | |
| Reach: 480mm | ||
| X-Large | 6'1" - 6'4" | |
| Reach: 500mm | ||
| XX-Large | 6'4" - 6'7" | |
| Reach: 525mm |
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
- Personal Preference
- A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
- Body Dimension
- Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 434 | 436 | 439 | 442 | 445 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase (Hi/Lo) | 1206 | 1237 | 1264 | 1296 | 1328 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
SPECIFICATIONS
Frame |
Frame |
Carbon C 29" 150mm Travel VPP" |
|
|
|
|
Weight |
34.71 lbs/ 15.74 kg |
Wheels |
Front Rim |
Reserve 30|TR AL |
|
|
Wheel Size |
29" |
Front Hub |
SRAM MTH 716, 15x110, 6-Bolt, 32h | ||
|
Front Tire |
Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO |
||||
Suspension |
Fork |
RockShox Lyrik Base, 160mm |
Rear Rim |
Reserve 30|TR AL |
|
|
Shock |
FOX Float Rhythm, 230x57.5 |
Rear Hub |
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h | ||
|
|
Rear Tire |
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
|||
Drivetrain |
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB | |||
|
Cassette |
SRAM XS 1270 Eagle T-Type, 10-52t |
Specs |
Bottom Bracket Shell | 73mm Threaded | |
|
Chain |
SRAM 70 Eagle T-Type, Flattop, 12spd | Rear Brake Mount | 180 PM | ||
|
Chainguide |
- |
Shock Length |
230mm | ||
|
Crankset |
SRAM 70 Eagle DUB T-Type Crankset, 32t |
Fork Offset |
44mm | ||
|

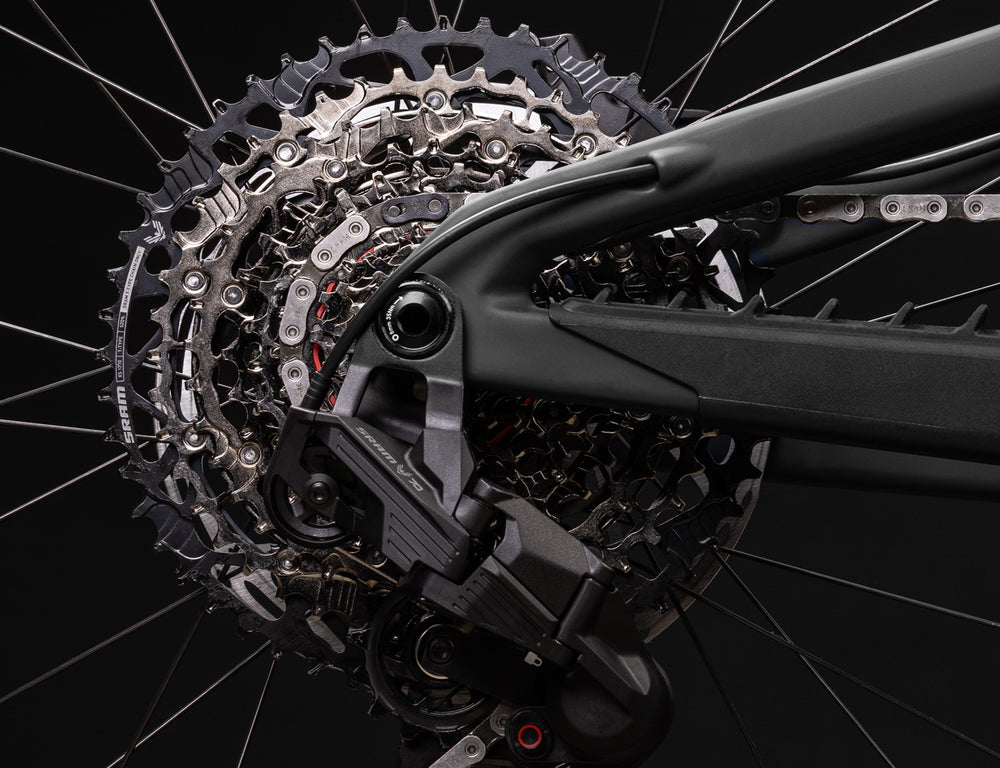

Rear Derailleur |
SRAM 70 Eagle T-Type, 12spd |
Front Derailleur Mount |
No compatibility |
||
|
Right Shifter |
SRAM 90 Eagle T-Type, 12spd |
Heatset |
Integrated (IS41/52) | ||
|
|
Max Chainring Size |
36t |
|||
Brakes |
Front Brakes |
SRAM DB8 |
Max Rotor Size |
223mm |
|
|
Front Rotor |
SRAM Centerline, 200mm |
Max Tire Clearance |
2.5" |
||
|
Rear Rotor |
SRAM Centerline, 200mm |
Recommended Sag |
30% (17.25mm) |
||
|
|
Seat Clamp Diameter |
36.4mm |
|||
Cockpit |
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
Seat Post Diameter |
31.6mm |
|
|
Handlebars |
Burgtec Alloy Bar -or- e13 TRS Base Bar |
Shock Bushing Size Front |
40x10 (standard bushing) |
||
|
Headset |
Cane Creek 10 IS Integrated Headset |
Shock Bushing Size Rear |
30x8 (roller bearing) |
||
|
Saddle |
SDG Bel-Air V3, Steel |
Shock Stroke |
57.5mm |
||
|
Seatpost |
SDG Tellis Dropper, 31.6 |
Suspension System |
VPP |
||
|
Stem |
OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm | Water Bottle Mounts | 1 |
