| Article number: | 58-26303-335-3-859-223201-01 |
| Availability: | In stock |
DESCRIPTION

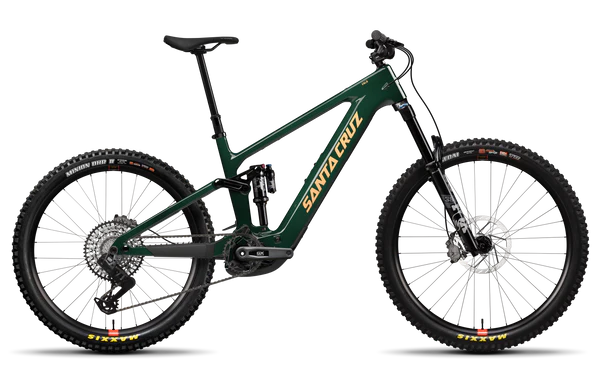

The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
| Material |
Front (MM) |
Rear (MM) | Wheel Size | Weight (lbs) | Weight (kg) |
| C | 160 | 150 | MX | 48.46 | 21.98 |
FEATURES
- Carbon C Frame
- FOX 38 Float Performance Elite Fork
- FOX Float X Performance Elite Shock
- SRAM GX Eagle AXS T-Type Drivetrain
- Bosch Performance CX BDU38 Drive Unit
FRAME SIZING
| Small | 5'1" - 5'5" | |
| Reach: 435mm | ||
| Medium | 5'5" - 5'9" | |
| Reach: 460mm | ||
| Large | 5'9" - 6'1" | |
| Reach: 480mm | ||
| X-Large | 6'0" - 6'4" | |
| Reach: 500mm | ||
| XX-Large | 6'4" - 6'7" | |
| Reach: 525mm |
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
- Personal Preference
- A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
- Body Dimension
- Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
SPECIFICATIONS
Frame |
Frame |
Carbon C MX 150mm Travel, 4-Bar |
Wheels |
Front Rim |
Reserve 30|HD AL 6069 |
|
Travel |
150mm |
Front Hub |
E13 SL, 15x110, 6-Bolt, 32h |
||
|
Weight |
48.46lbs / 21.98kg |
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
||
|
Wheel Size |
MX |
Rear Rim |
Reserve 30|HD AL 6069 | ||
|
Rear Hub |
E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h | ||||
Suspension |
Fork |
FOX 38 Float Performance Elite, Grip X2, 160mm |
Rear Tire |
Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown |
|
|
Shock |
FOX Float X Performance Elite, 205x60 | Valves | Reserve Fillmore Valves | ||
|
|
|
||||
Drivetrain |
Bottom Bracket |
N/A |
Ebike |
Battery | Bosch PowerTube Battery 600Wh |
|
Cassette |
SRAM GX 1275 Eagle T-Type, 10-52t |
Drive Unit | Bosch Performance CX BDU38 | ||
|
Chain |
SRAM GX Eagle T-Type, Flattop, 12spd |
Specs |
|||
|
Chainguide |
OneUp Chainguide |
Bottom Bracket Shell | EMTB | ||
|
Crankset |
SRAM GX Eagle Cranks, 160mm | Rear Brake Mount | 200mm PM | ||
|
Rear Derailleur |
SRAM GX Eagle AXS T-Type, 12spd |
Shock Length |
205mm | ||
|
|
Fork Axle to Crown |
571mm | |||
Brakes |
Brakes |
SRAM Maven Bronze |
Fork Offset |
44mm | |
|
Front Rotor |
SRAM HS2 200mm |
Front Derailleur Mount |
No Compatibility | ||
|
Rear Rotor |
SRAM HS2 200mm |
Headset |
Integrated (IS41/52) | ||
|
|
Max Chainring Size |
36t |
|||
Cockpit |
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
Max Rotor Size |
220mm | |
|
Handlebars |
OneUp Aluminum Bar, 35mm Rise, 800mm |
Max Tire Size |
2.5" | ||
|
Headset |
Cane Creek 50 IS Integrated Headset |
Rear Spacing |
148mm |
||
|
Saddle |
SDG Bel-Air V3 Max Lux-Alloy Atmos |
Rear Travel |
151mm | ||
|
Seatpost |
OneUp Dropper Post, 31.6 |
Recommended Sag |
30% | ||
|
Stem |
OneUp Enduro Stem, 42mm |
Seat Clamp Diameter |
36.4mm |
||
|
|
|
Seat Post Diameter |
31.6mm |
||
|
|
|
Shock Stroke |
31.6mm |
||
|
|
|
Suspension System |
Four-bar | ||
|
|
|
UDH Compatible |
Yes | ||
|
|
Water Bottle Mounts | 1 |
|---|
